Product Details
Place of Origin: | Guangdong, China | Brand Name: | KTMP | Model Number: | KTMP-NF-3 |
Protection Level: | IP65 | Type: | Network Cabinet | External Size: | Optional |
Product Description

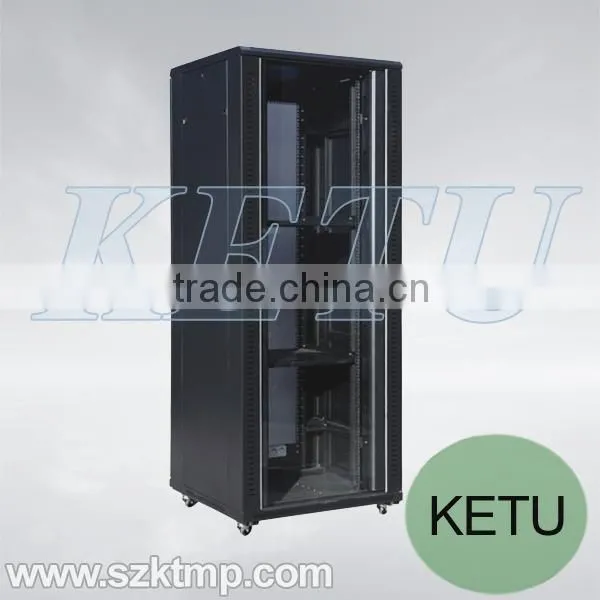

19 inch network server enclosure
Model: KTMP-NF-3
Features :
1.Comply with ANSI/EIA ,RS-310-D,IEC297-2,DIN41494,PART1,DIN41494,PART7, ETSI standard.
It is compatible with19" international standard,metric standard.
2.Materials:SPCC quality cold rolled steel,mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.
3.Optional doors:tempered glass door or Vented/perforated door
single-door or double-door
4.Adjustable feet and heavy duty castors are available simultaneously.
5.Cable entry on the top cover and bottom panel with adjustable sizes.
6.Removable side panels to maintain easily.
7.Optional installation of plinth to enable cabinets fixation,under-base cable entry/ventilation.
8.Optional accessories for fan unit,fixed shelf,sliding shelf,PDU and cable manager, ect. PDU can be in different standard,like European standard,American Standard.

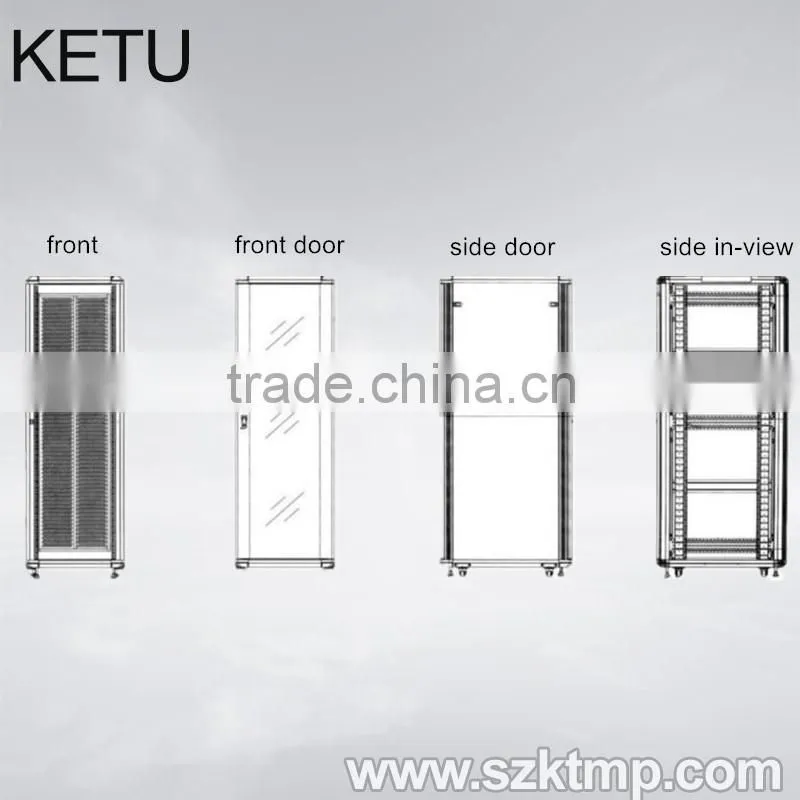

Details Show :
Optional Rear Door:
.vented door with hexagonal holes
.high-density vented door-dual open
.steel door without holes
Main Parts :
No. | Component name | Quantity | Unit | Material | Remark |
1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.2 |
|
2 | Fan Unit | 1 | pcs | SPCC cold rolled steel T1.2 | With 2/4 fans |
3 | Mounting Profile | 4 | pcs | Zinc plated T2.0 |
|
4 | Mounting rails | 6 | pcs | SPCC T1.5 | 4pcs for lower 32U |
5 | Frame | 2 | pcs | SPCC T1.2 |
|
6 | Lock | 2 | pcs |
| handle lock |
7 | Front Door | 1 | pc | SPCC T1.2 | vented mesh |
8 | Rear Door | 1 | pc | SPCC T1.2 | vented mesh |
9 | Side Panel | 2 | pcs | SPCC T1.2 | Removable |
10 | Bottom Panel | 1 | pcs | SPCC T1.2 |
|
11 | Screw | 20 | pcs | --- | 40pcs for over 32U |
12 | Square Nut | 20 | pcs | --- | 40pcs for over 32U |
13 | Castor | 4 | pcs | Steel |
|
14 | Adjustable leveling feet | 4 | pcs | Steel |
|
15 | Other components are available according to request |
Remark: we mainly produce the customized sheet metal parts, all the products display here are to show our business scope only. Thanks!
Advantage :
1. Rich experience on manufacture sheet metal industry
2. High quality material , exquisite design in every details
3. Secure , firm and reliable , Easy to maintain equipment
4. Two packing ways :
(1) Assembly packing to save labour cost , ready to resell or use
(2) Disassembly packing to save space and transport cost , easy to assemble
5. OEM/ODM service available
Company Introduction :
Shenzhen KTMP Technology Company Limited is a professional sheet metal products
manufacturer . As a skilled manufacturer in sheet metal processing industry for 12 years , KTMP is a
company with the whole line of designing , producing , selling and trading a standard series of
products while continually making strides in new product development . Welcome to OEM all kinds of
network/ server cabinets .
