Home > Electrical & Electronics > Electric Motor > Stepper Motor > Axial Fans With External Rotor Motors Buy Electric Motor

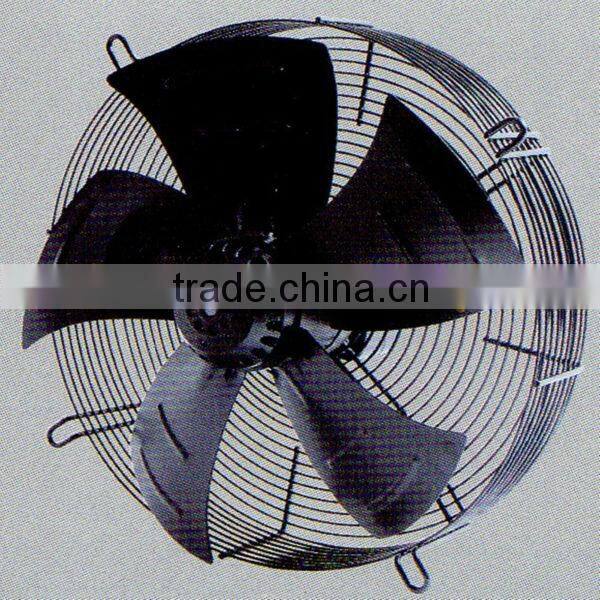

Axial Fans With External Rotor Motors Buy Electric Motor

Name: Axial Fans With External Rotor Motors Buy Electric Motor
Brand: JJWY
SKU: 122061931
Availability: InStock

Axial Fans With External Rotor Motors Buy Electric Motor thumbnail-1

Axial Fans With External Rotor Motors Buy Electric Motor photo-1

US$ 17 - 27 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

JJWY

Model Number:

axial fans with external rotor motors

Contact Supplier Request Quote Chat Now

Ningbo Jiangbei Jiajia Weiye Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name JJWY

Model Number axial fans with external rotor motors

Specifications

compact structure,stable running,low noise,convenient installation,high efficiency etc
widely sevaporator,condensr,water cooler

MODLE	VOLTAGE (V)	FREQUENCY (HZ)	CURRENT (A)	INPUT (W)	SPEED (R/min)	CAPACITOR (μF)	NET (KG)	NOISE dB(A)	AIR VOLUME (m³/h)
YWF.A4S-420S-5DIA00	220	50	1.10	220	1350	6	6.3	65	4020
YWF.A4T-420S-5DIA00	380	50	0.54	215	1350	/	6.3	65	4100

1.YWF fans with features of compact structure,stable running,low noise,convenient installation,high efficiency etc.

2.YWF fans divided into single phase capacitor operation and three phase asynchronous operation,widely used for evaporator,condenser,water cooler,heat pump and ventilation system.

3.YWF 100% speed control motor with low starting current,protection class of IP54,and insulation of grade B and F.

4.Single phase capacitor operation motor supplied with thermal portector,three phase motor supplied without thermal protector,if customer have special using,pls keep us informed before order.Our fans can be used in ambient temperature of -30 to 60 degree.C

5.Voltage: Single phase motor normally running at 220V/50Hz/60Hz,three phase motor normally running at 380V/50Hz/60Hz,but we can produce according to different requirement of voltage and frequency.

6.YWF fans can be controlled speed by frequency transformer or voltage inverter,three phase fans can be adjusted double-speed by Y/Δ exchange,or variety speeds by different connection.Also we can control speed by adjusting input voltage with SCR manually.

7.If customer need our motor used for their own centrifugal impeller,we need to know the operating points,power,installation details,better provide the sample of impeller and housing.

8.Airflow curve(static pressure&volume) DUNLI airflow curves measured in the air density of 1.2kg/cbm.ambient temperature of 20 degree.C,according to national standard.

9.Noise: It is sound pressure level of noise value in our technical data,achieved at the point of 1m from inlet,accoring to national standard

10.Average lifetime DUNLI fans installed with ball bearing,average lifetime between 30,000 to 50,000 hours base on different environment/condition of using.

11.Motors can be supplied with cable directly or IP54 junction box,we can also supply specially as customer's repuirements.

12.All of DUNLI fans have passed CE and CCC.
