5-800T/D sunflower,rapeseed,cotton,soybean edible oil refinery/crude palm oil refinery machine

Application of our oil refinery machine

Coconut oil, soybean oil, mustard seed oil, cottonseed oil, sunflower seed oil, peanut oil, rice bran oil, safflower seed oil, corn germ oil. Camellia seed oil ,etc.

Introduction of oil equipment:

The oil refinery equipment is a complete set of edible oil refinery, which also apply to various of oil like palm oil, rice bran oil, cottonseed oil, flaxseed oil, soybean oil, etc. It adopts the batch-type oil refinery process and advanced edible oil refinery technology, with high rates of refinery and high added value of product.


Features of oil equipment:

1.The heat source uses Heat transferring oil would be best, high temperature (10-300 °C ), high
thermal conduction efficiency, and improve the refinery rate of high temperature hydration refinery method.
2.Heating oil furnace instead of steam boilers, fuel adaptability, less investment, better effect.
3.Simple operation: the operator does not need long-term training.
4.Compact structure, small footprint, attractive appearance and convenient operation.

Main parts and function of oil equipment:

1.Neutralizing tank: for acid,alkali refinery or rinse.

2.Decolorizing tank: for bleaching grease.

3.Deodorizing tank: for deodorizing grease(stainless steel).

4.Conducting oil furnace: to provide thermal energy needed for production, the temperature reach to
280 °C;

5.Vacuum pump:to provide vacuum for bleaching, deodorization which can reach 755mmHg or more;

6.Air compressor: dry the bleached clay;

7.Air press: for filter clay;

8.Steam generator: generate steam distillation required.

Process description Oil equipment:

Oil equipment is suitable for degumming,de-acidifying,decoloring and deodorization treatment Animal oil refinery equipment.

1.Oil equipment is suitable for degumming, deacidification, decoloring
and deodorization treatment. According to the client, the products come up to
the high grade cooking oil.
The first and the second class of the state standard of china.

2. Main machines: Lye tank,hot water tank,water Ejector,water and steam
Ejector, Steam header, Soap stock
Vessel, refining tank,decolorizing tank, deodorizing vessel, oil separating tank,
clay tank,filter, Alkali dissolving tank, decolorizing oil tank, oil pump, etc.

3.

Process Cart of oil refinery machine:

1.Degumming:

   Removing the phosphatide by adding hot water,when phosphatide meets

   hot water, it will become bigger and bigger, then out of tanks.

2.Deacidification:

   Removing the FFA by add caustic soda (for taking neutrallzation reaction).

3.Bleaching:

   Remove the pgment by adding bleaching earth andthe remaining bleaching

   earth will be filtrated by leaf filter.

4.Deodorization: Remove the oxide, solid particle and volatide gas.

4. Process:physical refining,chemical refining

5. Refining ways: batch type,semi-continuous

6. Raw materials:peanut oil,peanut oil,soybean oil,sunflower oil,rapeseed oil,
cottonseed oil,maize oil,rice bran oil,tea seed oil, sesame oil, castor oil, tung oil, walnut oil, pine nut oil, grape stone kernel, sallow thorn oil, fish oil, lard, tallow, chicken fat.

7. Product oil grade(kinds):
First, second, third,fourth grade oil of national standards,blend oil,special
fragrance oil and faint scent oil.

8. The price of winterization part covers 40% of the total price.

Packing Details: in wooden packaging ,according to customer's requirements



Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.

1.Pre-sale services:

1) Selecting equipment type;

2) Designing and fabricating the products in accordance with the special requirements of the clients;

3) Training technical personnel for our clients;

4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

2.Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.

1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients.

3. After-sale services:

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

4) Examining the equipment regularly;

5) Taking the initiatives to eliminate the failure(s) rapidly at site;

To choose the appropriate Biomass burner for you, we need to know the following information:

1.Material to be processed?
2.Capacity(tons or kg or litter per hour or day)?
3.Local power supply(voltage and frequency)?
4.Other special requirements.

If you want to know more information about the Biomass burner and other machinery, pls do not hesitate to contact us.

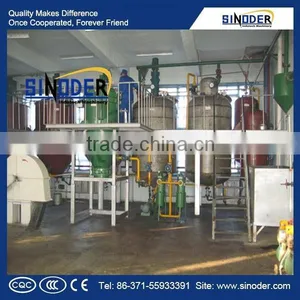

More pictures of The Oil equipment:
