single load cell , Platform Scale Sensor,weighting sencer used for electronic scales, electronic balance, weighting system

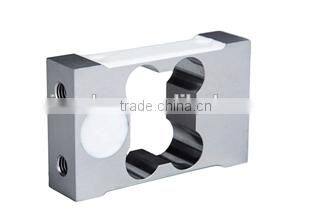

Brief introduction of single load cell
Made of aluminum alloy.
High accuracy, high side load tolerance
Easy to install, IP65 protection
Mainly used for electronic scales, electronic balance, price computing scales and industrial weighing systems

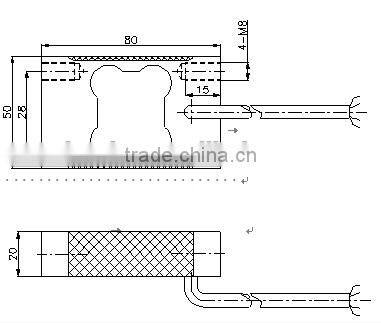

Main technical parameter : Model : T705
Specifications |
Technique |
Capacity |
6,10,15,20 kg |
Accuracy class |
C3 |
Rated output |
2.0±10%mV/V |
Zero balance |
±2%F.S. |
Non-linearity |
0.015%F.S. |
Hysteresis |
0.015%F.S. |
Repeatability |
0.02%F.S. |
Creep(30min) |
0.017%F.S. |
Temp.effect on output |
0.02%F.S./10℃ |
Temp.effect on zero |
0.02%F.S./10℃ |
Input impedance |
405±10Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
5~10V |
Maximum excitation |
15V |
Compensated temp range |
-10~40℃ |
Operation temp range |
-20~60℃ |
Safe overload |
150%F.S. |
Ultimate overload |
300%F.S. |
Cable size |
Φ4×1500mm |
Weight approx. |
0.3kg |
Material |
aluminum alloy |
IP Class |
IP65 |
Max.platform size |
200mm×200mm |
