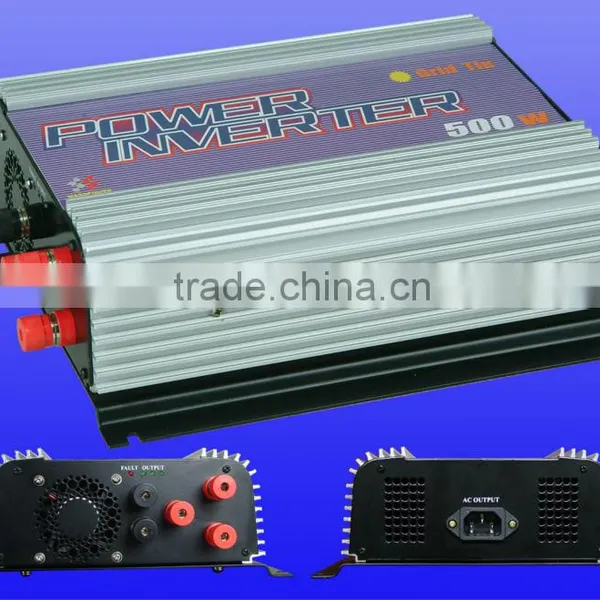

Wind Turbine SUN-500G-WAL Grid Tie Inverter Inverter Manufacturer

Name: Wind Turbine SUN-500G-WAL Grid Tie Inverter Inverter Manufacturer
Brand: cnjjwy
SKU: 122058763

US$ 140 - 160 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

cnjjwy

Model Number:

SUN-500G-WAL

Ningbo Jiangbei Jiajia Weiye Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO or SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name cnjjwy

Model Number SUN-500G-WAL

Output Power 401 - 500W

Output Type Multiple

Size 332mm*265mm*135mm

Weight 3.5Kg

Input Voltage 10.8V ~ 30V / 22V~60V

Output Voltage 90V~130V/190V ~ 260V

Type DC/AC Inverters

Output Frequency 46Hz ~ 65Hz

Output Current 2.2A

Specifications

advanced conversion technology
small size, less weight,easy to use and causes less noise while working
safely,smoothly

Mechanical Specifications:

Input		DC Input
Normal AC Output Power		450W
Maximum AC Output Power		500W
AC Output Voltage Range	220V/230V/240V	190V ~ 260V
	110V/120V	90V ~ 130V
AC Output Frequency Range		46Hz ~ 65Hz
Total Harmonic Distortion(THD)		<5%
Power Factor		0.99
Input Voltage Range		10.8V~30V ;22V~60V (test point is at the output of the rectifier)
Peak Inverter Efficiency		92%(consumption of the rectifier is not calculated)
Standby Power consumption		<1.5W
Output Current Waveform		Pure Sine-wave
MPPT Function		Yes
Over Current Protection		Yes
Over Temperature Protection		Yes
Reverse Polarity Protection		Yes
Island Protection		Yes
Stackable		Yes
recommend dump load resistor		5 ohm/500 watt
Operating Temperature Range		-40°C~85°C
N.W.		3.5kg
G.W		4.0kg
Dimension		332×265×135 mm
