Best selling small weight sensor,pressure plate sensor,load cell for scale
Brief introduction of weighting sensor

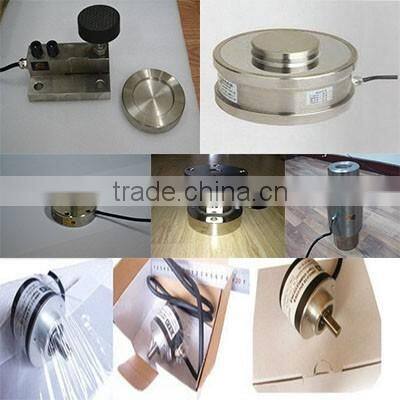

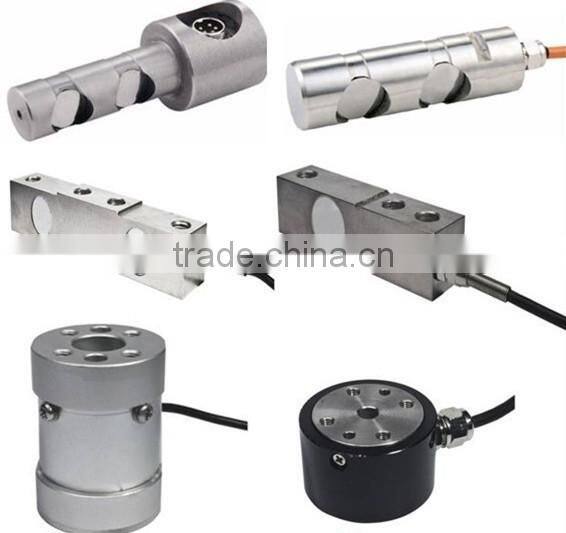

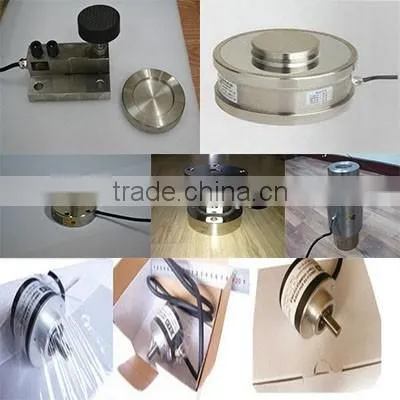

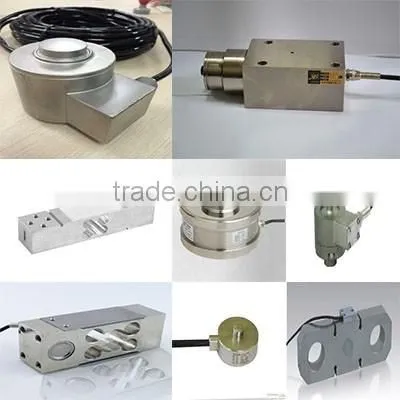

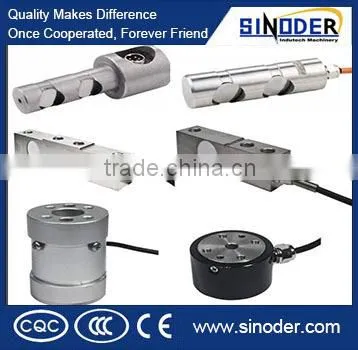

We produce all kinds of model weighting load cell/ weighting sensor/transducers, such as plate ring sensor, single point sensor ,Micro pressure sensor, spoke weighing sensorm, S type pressure sensor, Cylindrical/column type sensor, Shear beam type sensor, Parallel beam type sensor, cantilever beam type sensor , high temperature sensor and so on
Application :
1.Plate ring sensor are Suitable for lifting type electronic scale terminal mining goods measurement etc
2. Single point sensor are suitable for scales ,
3. Micro pressure sensor is mainly used for laboratory measurement equipment, industrial units of measurement, construction machinery and other industries, with strong sealing, easy installation, small size, stable performance advantages.
4. S type pressure sensor is Widely used in electronic hook scales, hopper scales, testing equipment and other equipment weighing force measurement
5.Spoke weighting sensor is used in the hopper scale, truck scale, railway scale and other widely used in electronic scales
Main parameter

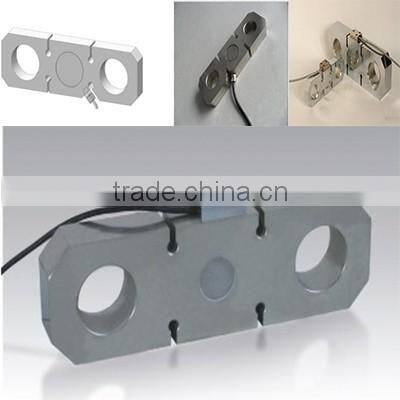

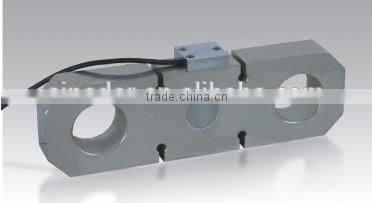

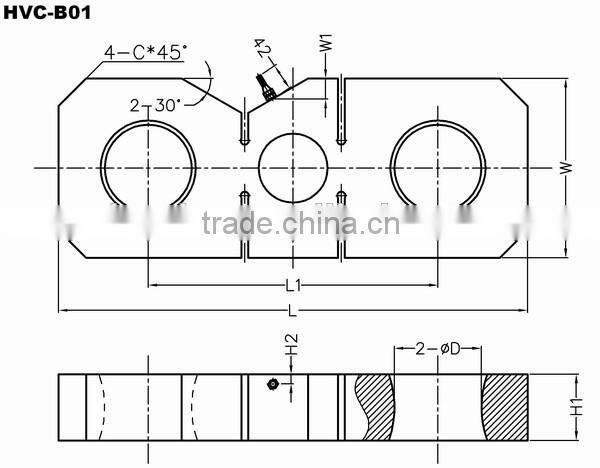

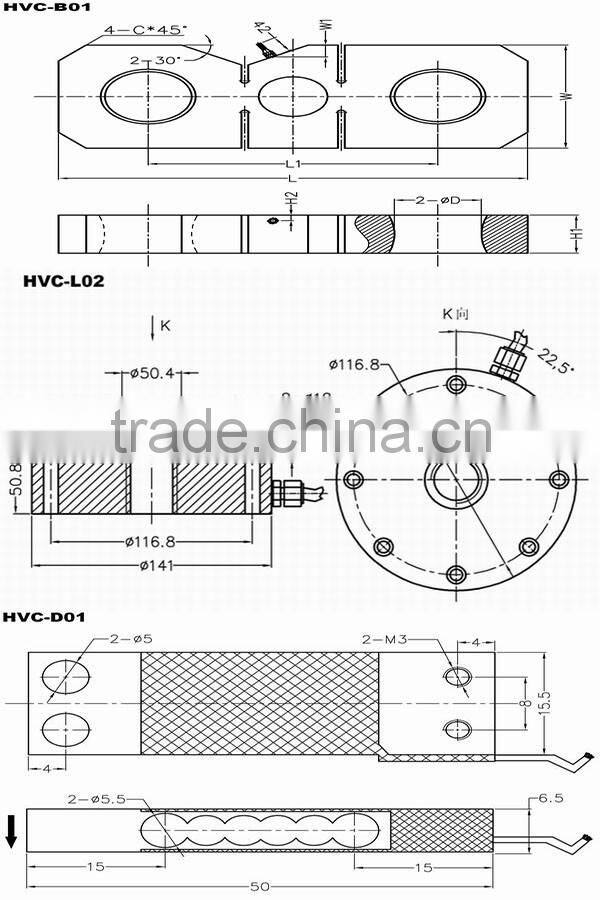

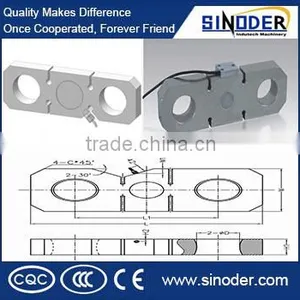

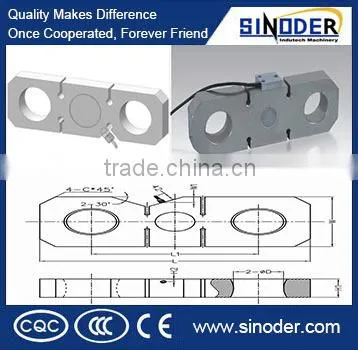

Plate ring sensor
Range(t) |
L |
L1 |
W |
W1 |
H1 |
H2 |
2-ΦD |
15,20,30 |
340 |
210 |
130 |
25 |
48 |
7 |
Φ63 |
50 |
620 |
438 |
171 |
25 |
47 |
11 |
Φ85.5 |
100,150 |
500 |
305 |
190 |
30 |
130 |
10 |
Φ97 |
Rated Load |
15, 20, 30, 50, 100, 150,200,300t |
Sensitivity |
2.0±0.002mv/v(30~50t); 1.5±0.01mv/v(100~300t) |
Total error |
±0.05%F.S |
)Creep(30min) |
±0.02%F.S |
Zero balance |
±1%F.S |
TCO |
±0.02%F.S/10℃ |
TC SPAN |
±0.02%F.S/10℃ |
Input resistance |
400±10Ω |
Output resistance |
352±3Ω |
Insulation resistance |
≥5000MΩ |
Operating Temp Range |
-30~+70℃ |
Safe load limit |
150%F.S |
Over load limit |
2005F.S |
Recommendexcitation |
10~12V DC |
Maximumu excitation |
15V DC |
Protection Class |
IP67 |
Construction |
Alloy Steel |
Cable |
Length:12m Diameter: Φ 5mm |
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
