Specifications
peanut oil press machine 1. High oil yield, and pure oil 2.automatic oil press

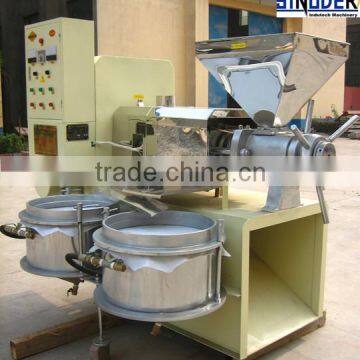

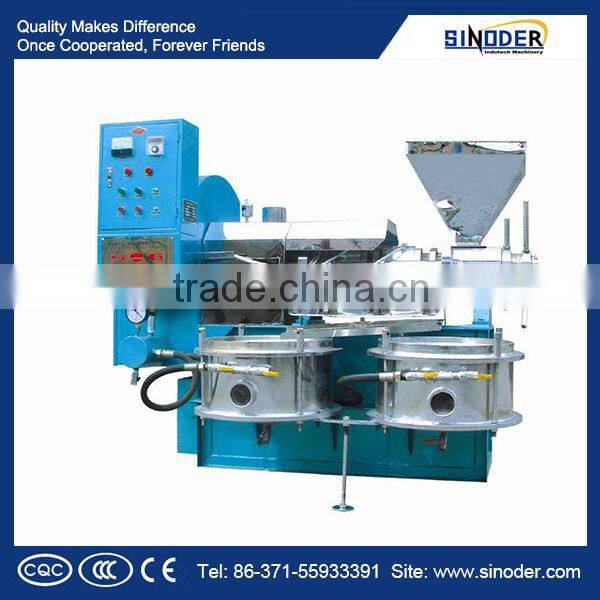

Automatic screw oil press machine/ peanut oil press machine/cooking oil making machine
Brief introduction of oil press machine
1.The oil press is suitable for Physical squeezing all kinds of vegetable oil material ,such as soybean, cottonseed ,peanut, rapeseed,sunflower, teaseed , coconut dry , gendarmerie seed and palm kernel etc.
2.The automatic screw oil press is composed of vacuum filtration system, automatic heating device and controlling system.
3. Some parts of the oil press will be pre-heated before pressing, such as the press chamber, press screw and press ring.
4. During pressing, the press will filter the oil in due time.

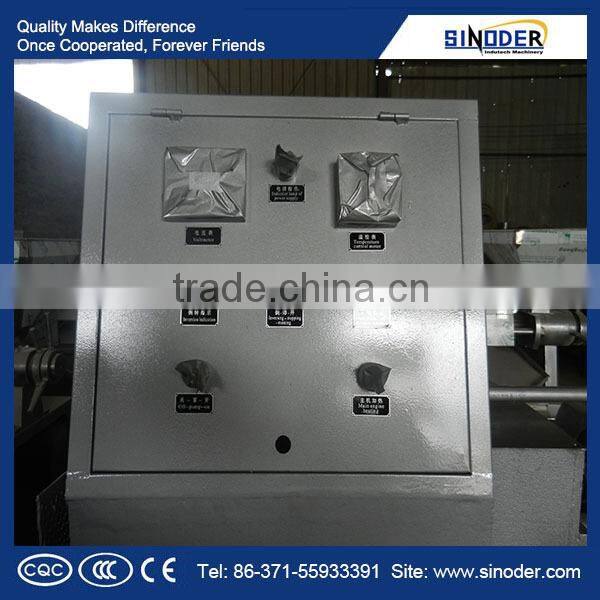

5. This machine is matched with one controlling cabinet box to control all working process of the machines.
The feature and advantage
1. Saving Labor: It only needs one person to operate the Automatic Screw oil press, which will save 60% labor for equal output.
2. Pure Oil Quality: The vacuum oil filtering is used to remove residue to ensure the pure oil quality and meet the standards of health quarantine.
3. Small Land-Using: An area of 10m²-20m² workshop can meet the need of production. suitable for medium-small sized oil extruding workshops or professional farmers.
The main technical parameter
Model |
6YL-80 |
6YL-100 |
6YL-120 |
6YL-160 |
|
Dia. |
φ 81mm |
φ 101mm |
φ 123mm |
φ 160mm |
|
Screw speed |
47r/min |
38r/min |
35r/min |
32r/min |
|
Power |
Motor |
5.5kw |
7.5kw |
11kw |
22kw |
Vacuum pump |
0.55kw |
0.75kw |
1.1kw |
1.1kw |
|
Heater |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
|
Capacity |
80-100kg/h |
150-200kg/h |
250-300kg/h |
500-600kg/h |
|
Weight |
880kg |
1250kg |
1500kg |
1800kg |
|
Size (mm) |
1500×1200×1750 |
2000×1300×1850 |
2100×1300×1850 |
2300×1300×1950 |
|
Oil rate
| Item | Weight(kg) | Oil Rate(%) | Oil | Cake |
| (kg) | (kg) | |||
| Peanut | 200 | 48% | 96 | 102 |
| Soybean | 200 | 15% | 30 | 168 |
| Rapeseed | 200 | 38% | 76 | 122 |
| Sunflower seed | 200 | 41% | 76 | 122 |
| Sesame | 200 | 50% | 96 | 102 |
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
