Help CenterSinoder Brand Concrete Batcher Plant Concrete Mixer Concrete Batching Mixing Plant Ready Mix Concrete Plant
Related Products
-
Sinoder Brand HZS Series Cement Mixing PlantUS$ 1,000 - 86,000MOQ: 1 Set -
Sinoder Offer HZS25 Concrete Mixing Plant With Various Sizes, HZS35-35m3/h HZS60-60m3/h ,HZS90-90m3/h HZS120-120m3/hUS$ 1,000 - 86,000MOQ: 1 Set
-
Sinoder Offer HZS180 Concrete Mixing Plant With Various Sizes, HZS35-35m3/h HZS60-60m3/h ,HZS90-90m3/h HZS120-120m3/hUS$ 1,000 - 86,000MOQ: 1 Set
-
Sinoder Brand Concrete Ready Mix Plant Concrete Batching and Mixing Plant Concrete MixerUS$ 1,000 - 86,000MOQ: 1 Set
-
Sinoder Brand Precast Concrete Machinery Stationary Concrete Mixer Concrete Mixing EquipmentUS$ 1,000 - 86,000MOQ: 1 Set
Stationary Commercial Concrete Batching Plants Concrete Ready Mix Plant soil stabilization mixing plant
Concrete Batch Ready Mix Machine Concrete batcher plant
Sinoder Brand HZS series belt type mobile concrete batching plant includes HZS60 (60m3/h) mobile concrete batching plant, HZS90 (90m3/h) mobile concrete batch plant, HZS120 (120m3/h) mobile concrete batch plant, HZS180 (180m3/h) mobile concrete batch plant, etc. If you use belt conveyor to feed aggregates into the mixer continuously, the mixing efficiency is highly improved.

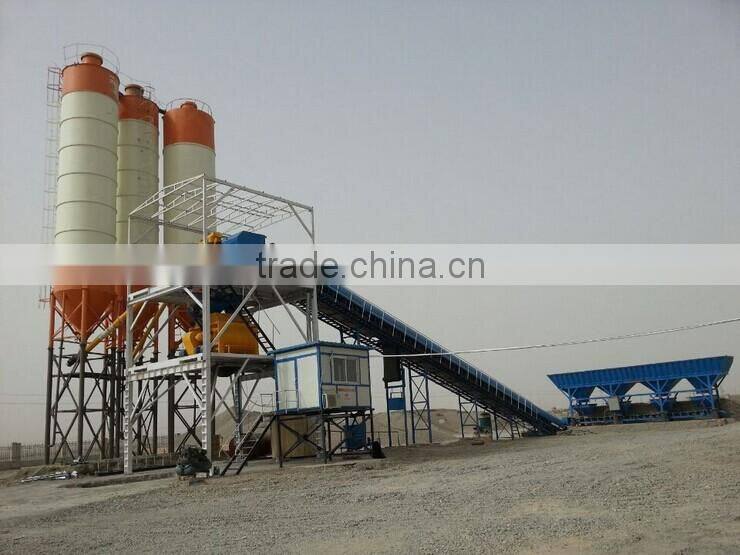

belt type mobile concrete batching plant
Belt Type Concrete Mixing Plant is one kind of construction equipment, which is used to produce concrete. Belt type cement mixing plant is made up of aggregate storing and weighing system, belt convey system, weighing system, concrete mixer, water supply system, additive supply system, control system, electric control system, etc..
Skip Type Concrete batching Plant
Sinoder Brand HZS series Skip Type Concrete batching Plant includes HZS50 (50m3/h) concrete batching plant, HZS75 (75m3/h) concrete batch plant etc.
Portable Concrete Batching Plant
Sinoder Brand YHZS series Portable Concrete Batching Plant includes YHZS25 (25m3/h) mobile concrete plant, YHZS60 (60m3/h) mobile concrete plant, YHZS75 (75m3/h) mobile concrete plant etc. If you use belt conveyor to feed aggregates into the mixer continuously, the mixing efficiency is highly improved.
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
HZS100 |
||
Productivity(m3/h) |
25 |
40 |
50 |
75 |
100 |
||
Main Mixer |
Main Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
|
Mixing Power(kw) |
18.5 |
30 |
2*18.5 |
2*30 |
2*37 |
||
Output Capacity(m3) |
0.5 |
0.75 |
1 |
1.5 |
2 |
||
Max Aggregate Size(mm) |
≤60/80 |
≤60/80 |
≤60/80 |
≤60/80 |
≤60/80 |
||
Aggragate Bin |
Capacity(m3) |
4 |
4 |
8 |
8 |
20 |
|
Hoisting Motor Power(kw) |
5.5 |
7.5 |
18.5 |
22 |
30 |
||
Scale range and accuracy |
Aggregate(kg) |
1500±2% |
1500±2% |
2500±2% |
3000±2% |
2000±2% |
|
Cement(kg) |
300±1% |
500±1% |
500±1% |
800±1% |
1000±1% |
||
Water(kg) |
150±1% |
200±1% |
200±1% |
300±1% |
500±1% |
||
Additive(kg) |
20±1% |
20±1% |
20±1% |
30±1% |
40±1% |
||
Discharging Height(m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
||
1. Q: What is the productivity of concrete mixer and concrete batching plant?
A: The productivity of concrete mixer ranges from 6m3/h to 100m3/h. The productivity of concrete batching plant ranges from 25m3/h to 180m3/h.
2. Q: How many tyres does mobile concrete batching plant have? Is it movable or trailable?
A: Two tyres. It is movable.

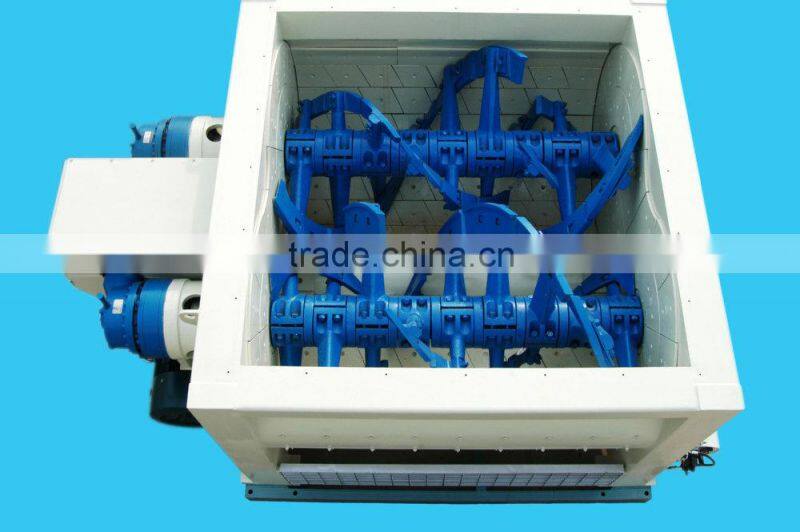

3. Q: What is the type of mixer in concrete batching plant? Planetary shaft type or horizontal twin- shaft type?
A: Planetary shaft type concrete mixer and horizontal twin-shaft type concrete mixer are all can be used in concrete batching plant. We are the expert of horizontal twin-shaft type concrete mixer.
4. Q: What is the total power? (not including screw conveyor)
A: HZS25: 68 kw HZS35: 80 kw
HZS50: 115 kw HZS60: 121 kw
HZS75: 142 kw HZS90: 174 kw
HZS120: 201 kw HZS180: 270 kw
HZSY25: 40 kw HZSY35: 60 kw
HZSY50: 82 kw HZSY75: 90 kw
5. Q: What is the electric voltage and rate?
A: Our local electric voltage is 380 V and 50 Hz and the electric voltage can be revised according to the local situation.

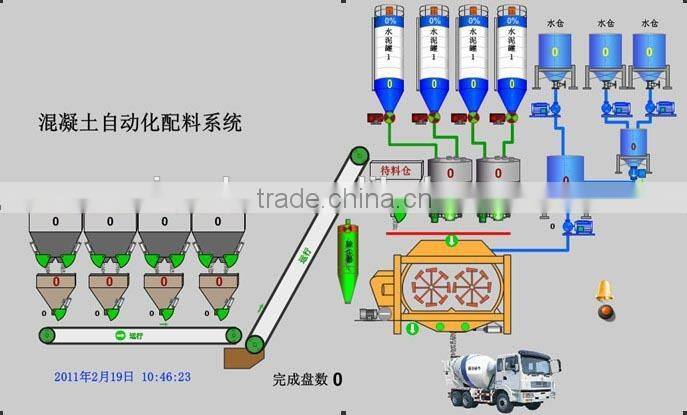

6. Q: Is PLC fully automatic or semi automatic?
A: PLC can be fully automatic and semi autamic. According to our experience, we recommend fully automatic PLC to you. It is easier to operate fully automatic PLC, thus saving labour cost.
7. Q: Control cabin size?
A: Size: 3m*2m
8. Q: Warranty period your company giving for PLC/MOTORS?
A: 12 months after installation.
9. Q: Operating system warranty and any extra unit giving with plant?
A: Operating system and any extra unit warranty: 12 months after installation
10.Q: Computer warranty?
A: 12 months after installation.
11.Q: How many pneumatic tyres are installed to the chassis?
A: In totall:4 tyres. 2 tyres for chassis ,and 2 tyres for towing.
12.Q: What is the brand of mixer- is it SICOMA?
A: Our concrete mixers rank top 10 among domestic concrete mixers.We have complete quality supervision system and our concrete mixers carry CE and BV marks. If you want SICOMA concrete mixer, we are also able to provide..
