Specifications

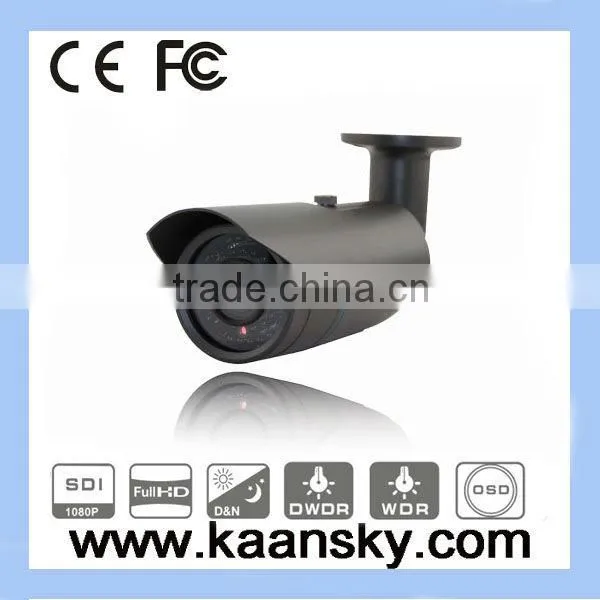

SDI HD camera 1/3"Sony CMOS IMX122 Sensorsupport 2 Megapixels 1080P
HD-SDI output,real time coaxial cable Transmission
SDI HD 2.0 Megapixel CMOS camera with 1080P high resolution
|
TDN(ICR),DSS,OSD,DWDR Excellent low light sensitivity(0.05Lux,B/W) 3D-DNR,BLC,Digital Zoom(Max.20x) 2Megapixels real time with coaxial cable 1CH CVBS output support Dual glass, no IR diffusion and fog IP66, outdoor installation IR Distance35-40M |
||||||
| Color | white and black optional | |||||
| IR | 42pcs 5mm | |||||
| Lens | 2.8-12mm lens or 6mm,8mm optional | |||||
| Size(body) | 200x80x85mm | |||||
| Bracket | 125x120x120mm | |||||
| G.W/N.W | 1.5kg /1.25kg | |||||
| Pack | 295x255x145mm | |||||
| ITEM | I726-SDI2002 | |||||
| Imaging Sensor | 1/3” Panasonic CMOS(EYENIX EN773) | |||||
| Total Pixels | 2010(H) x 1108(V) = 2,227,080 (pixel) | |||||
| Active pixels | 1944(H) x 1092(V) = 2,122,848 (pixel) | |||||
| Scanning system | Progressive Scan | |||||
| Resolution | Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) More than 1000 TVL(1080p) |
|||||
| Min. illumination | Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux |
|||||
| S/N Ratio | More than 50dB (AGC off) | |||||
| Video Output | HD-SDI Analog : NTSC, PAL(w/o WDR) |
|||||
| LENS | DC(ALC)/Manual(ELC) | |||||
| BRIGHTNESS | 0 ~ 20 | |||||
| SHUTTER | AUTO/MANUAL(1/30(25)~1/6000) | |||||
| SENS-UP | OFF/x2/x3/x4/x5/x6/x7/x8 | |||||
| AGC | 0 ~ 20 | |||||
| BACKLIGHT | OFF/HLC/BLC/WDR | |||||
| DAY&NIGHT | AUTO/COLOR/B&W/EXT. | |||||
| WHITE BAL. | AUTO/AUTOext/PRESET/MANUAL | |||||
| DNR | OFF/LOW/MIDDLE/HIGH | |||||
| SHARPNESS | 0 ~ 10 | |||||
| MIRROR | ON/OFF | |||||
| FLIP | ON/OFF | |||||
| D-WDR | OFF/LOW/MIDDLE/HIGH | |||||
| SHADING | ON/OFF | |||||
| PRIVACY | ON(32 Points)/OFF | |||||
| MOTION | ON/OFF | |||||
| OUTPUT MODE | 720P/1080P | |||||
| FRAME RATE | 25 FPS/30 FPS | |||||
| CVBS | NTSC/PAL | |||||
| LANGUAGE | ENG/CHN | |||||
| Power | DC12V±10% | |||||
| Video Output(HD-SDI) | MMCX Connector | |||||
| Storage Temperature | -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH) | |||||
