Specifications
HD SDI CCTV Cameras1.1080P
2.Full 2 megapixel HD Mega Pixel
3.CMOS Sensor
4.IP66
HD SDI CCTV Cameras
Model No : KST-I726
Technical Characterisitics
| Specifications | F726 | |||||
| Imaging Sensor | 1/3” Panasonic CMOS(MN34041PL) | |||||
| Total Pixels | 2010(H) x 1108(V) = 2,227,080 (pixel) | |||||
| Active pixels | 1944(H) x 1092(V) = 2,122,848 (pixel) | |||||
| Scanning system | Progressive Scan | |||||
| Resolution | Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) | |||||
| More than 1000 TVL(1080p) | ||||||
| Min. illumination | Color : 1.0 lux , BW : 0.5lux | |||||
| Color DSS : 0.002 lux , BW DSS : 0.001 lux | ||||||
| S/N Ratio | More than 50dB (AGC off) | |||||
| Video Output | HD-SDI | |||||
| Analog : NTSC, PAL(w/o WDR) | ||||||
| LENS | DC(ALC)/Manual(ELC) | |||||
| BRIGHTNESS | 0 ~ 20 | |||||
| SHUTTER | AUTO/MANUAL(1/30(25)~1/6000) | |||||
| SENS-UP | OFF/x2/x3/x4/x5/x6/x7/x8 | |||||
| AGC | 0 ~ 20 | |||||
| BACKLIGHT | OFF/HLC/BLC/WDR | |||||
| DAY&NIGHT | AUTO/COLOR/B&W/EXT. | |||||
| WHITE BAL. | AUTO/AUTOext/PRESET/MANUAL | |||||
| DNR | OFF/LOW/MIDDLE/HIGH | |||||
| SHARPNESS | 0 ~ 10 | |||||
| MIRROR | ON/OFF | |||||
| FLIP | ON/OFF | |||||
| D-WDR | OFF/LOW/MIDDLE/HIGH | |||||
| SHADING | ON/OFF | |||||
| PRIVACY | ON(32 Points)/OFF | |||||
| MOTION | ON/OFF | |||||
| OUTPUT MODE | 720P/1080P | |||||
| FRAME RATE | 25 FPS/30 FPS | |||||
| CVBS | NTSC/PAL | |||||
| LANGUAGE | ENG/CHN | |||||
| Power | DC12V±10% | |||||
| Video Output(HD-SDI) | MMCX Connector | |||||
| Storage Temperature | -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH) | |||||
1. High Definition Mega Pixels HD-SDI Camera
2. 1/3" Progressive scan CMOS Sensor
3. Max.1920(H)X1080(V) 2 Megapixels
4. TDN(ICR),DSS,OSD,DWDR
5. Excellent low light sensitivity(0.05Lux,B/W)
6. 3D-DNR,BLC,PIP
7. 2 Megapixels real time with coacial cable
8. 1CH CVBS output support
9. Dual glass,no IR diffusion and fog
10. IP66,outdoor installation
11. IR Distance 50-60M
12. Adopting 72pcs/5mm IR Leds
13. Standard lens:2.8-12mm lens;(4-9mm,9-22mm optional)

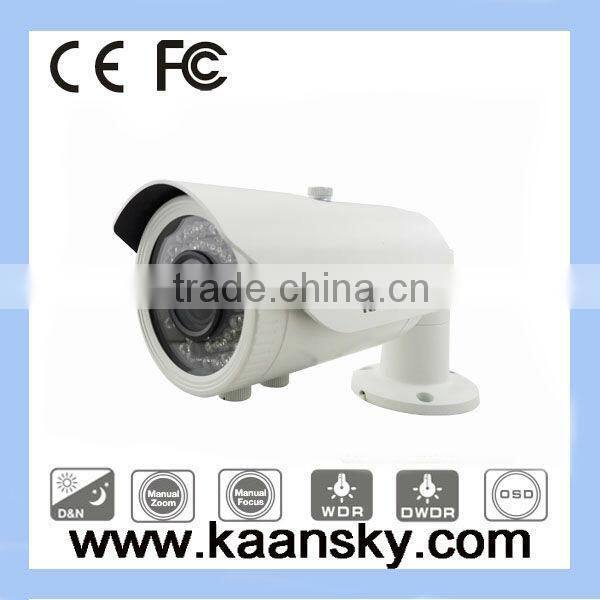

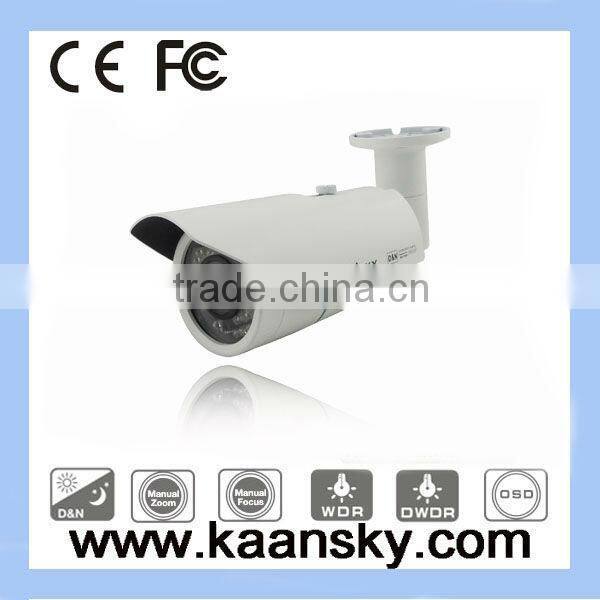

KST-I726 we have two colors . Following is white one
Products Advantage
Quality is controled by our professional QC and engineer ,checking each production's step for any of our products .have obtainerd the certification of CE, FCC ,CCC,and Rohs , and the waterproof IR camera reach IP66 waterproof grade , is enjoy high reputation among customers.welcome your inquiry , we will offer best prices to you !

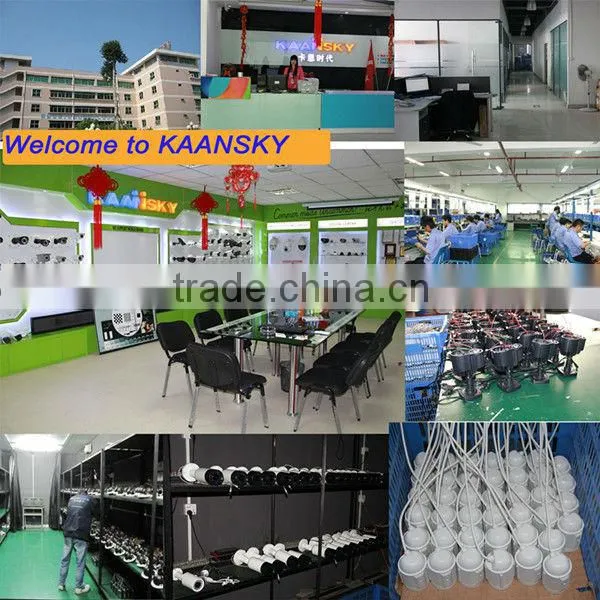

Factory Advantage
Kaansky hold 3000 square meters for R&D Manufacturer warehouse. And over 100 skilled workers . Also rapidly growing sales team with capable sales representatives to meet all your inquiries . Each month we produce about 80,000 units , also we have long term and extensive experrience on the OEM /ODM service . "Common made uncommon" is a managerial belief we persist in and carry out , and it's a goal of each Kaansky person pursues . We believe in our enthusiasm and capability to take full advantage of the capital , technology , talent and management resources , we have to constantly work out quality and innovative products with excellent service , making more contribution for a better tomorrow of our country and the world's security industry . Join us and let's make a new future together , come on !
