p2p support iss manager 16CH 1080P AHD DVR
dvr hd features:
- Support AHD, TVI and Analog input(3MP, 2MP, 1MP, 960H)
- AHD, TVI and Analog input are self-adaptive
- Smart playback to quick get through the less effective information
- Full-screen UI, user friendly
- Support 2 SATA HDDs, each HDD is up to 6TB, 2 USB2.0
- 16 channel synchronous playback
- Simultaneous HDMI and VGA output, the resolution is up to 1080P
- Support free DDNS, e.g. HDCCTVDDNS
- Support mobile app access
- Support P2P with HDIVS
- Free VMS software: ISS Manager
- Up to 500 meters long distance stable and high quality 1080P video transmission
dvr hd specifications:
Model |
QH-D8216AM-V2D |
VIDEO | |
VIDEO SYSTEM |
NTSC/PAL Self-adaptive |
INPUT |
BNC*16,1.0Vp-p,75ohm |
SPOT |
NA |
HDMI OUTPUT |
1 HDMI Output |
VGA OUTPUT |
1 VGA Output |
TV OUT |
1 BNC Output |
AUDIO | |
INPUT |
2CH, RCA |
OUTPUT |
1CH, RCA |
TALK BACK |
YES |
CONTROL | |
MOUSE |
2*USB2.0 |
STORAGE | |
BUILD IN INTERFACE |
2 SATA Interfaces, Up to 12TB |
DISPLAY | |
DIVISION |
1, 4, 9, 16 |
ZOOM |
Preview and Playback Zoom Support |
RECORDING | |
COMPRESSION |
H.264(High profile) |
RECORDING MODE |
Manual/Schedule/Motion Detection/Sensor |
ENCODING ABILITY |
PAL:16* 1080P@12fps,16 * 720P@25fps NTSC:16* 1080P@15fps,16 * 720P@30fps |
DECODING ABILITY |
4* 1080P@15fps |
INPUT MODE |
AHD: 16* 1080P;16* 720P;16 * 960H |
TVI: 16* 1080P;16* 720P;16 * 960H | |
QUALITY |
Lowest, Lower, Low, High, Higher, Highest |
PLAYBACK | |
SYNC PLAYBACK |
1 to 16 (Max 16 CH) |
SEARCH MODE |
Smart, Event, Channels and Calendar |
COMMUNICATION | |
REMOTE ACCESS |
IE ( 6.0 and above), ISS Manager ( Windows XP/WIN7/WIN8 ), HDVIS ( IOS, Android ) |
REMOTE OPERATION |
Remote View, Remote Playback, Remote Setup |
NETWORK SERVICE |
TCP/IP, PPPOE, DDNS, NTP, UPNP, SMTP, HTTP |
MOBILE DEVICE |
iPhone, iPad, Android |
WAN RJ45 |
10/100Mbit/s |
GUI INTERFACE |
Supported GUI 16 Bit True Color |
PTZ PROTOCOL |
PELCO-D, PELCO-P, etc |
BACKUP | |
INTERNAL |
NA |
EXTERNAL |
2*USB2.0 |
NETWORK |
YES |
FILE FORMAT |
AVI |
General | |
ALARM IN/OUT |
4/1 |
RS-485 |
1 |
Working Environment |
+10°C ~ +55°C, Humidity ≤ 90% RH(non-condensing) |
POWER SUPPLY |
12V, 4A |
POWER CONSUMPTION |
<15W (Without HDD) |
UNIT DIMENSION(mm) |
W340*D268*H64mm |
WEIGHT |
1800g |

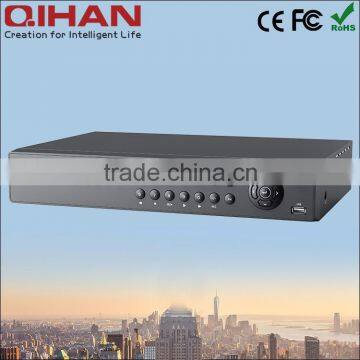

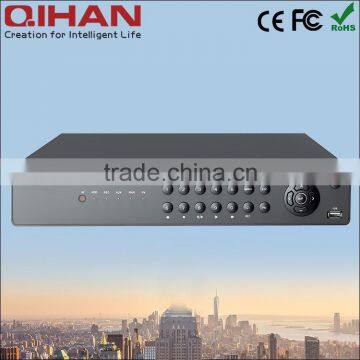

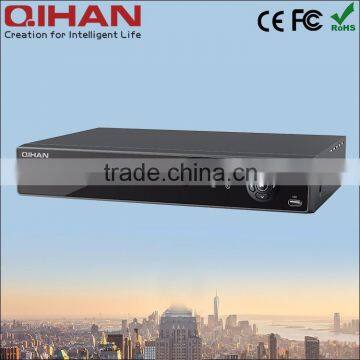

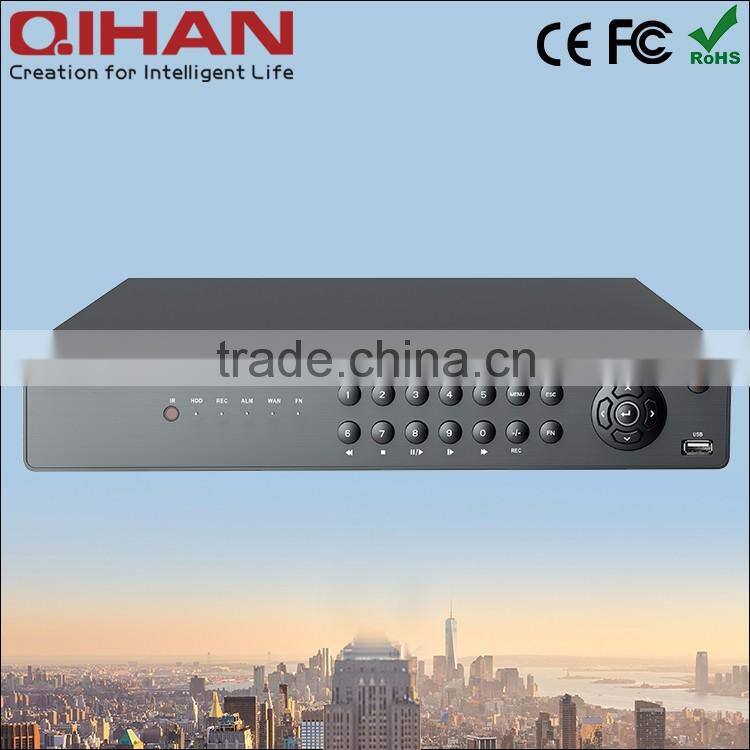

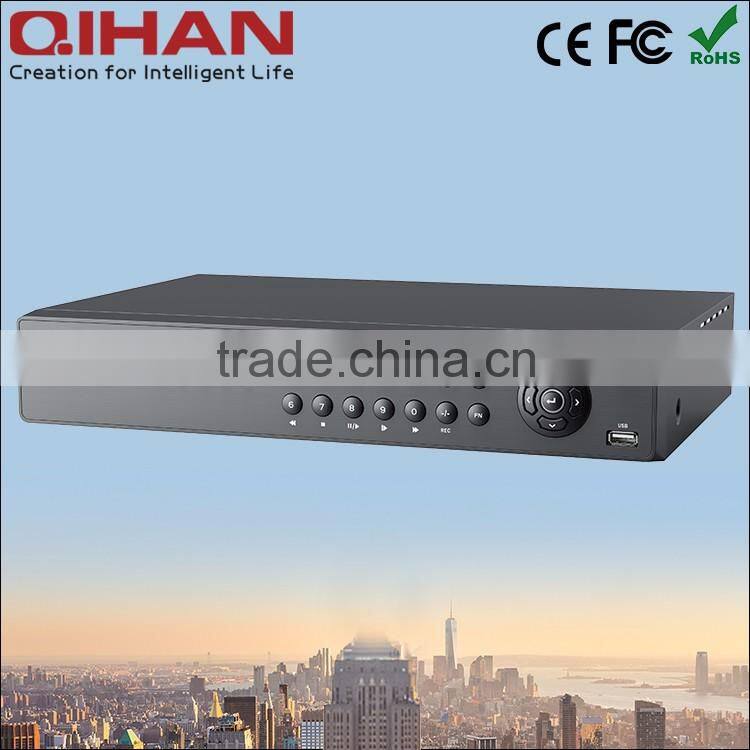

dvr hd photos:
Qihan Technology Co., LTD is one of the leading factories which develops and produces CCTV products in China, supported by the Chinese government as the most importantly developed company.Qihan has a R&D headquarter in Shenzhen high-tech research center, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Each month we produce about 80,000 units of cameras and 20,000 units of DVRs, and our capacity is about 100,000 units of cameras and 50,000 units of DVRs monthly. Which accounts for nearly 38 million US Dollars in value in the year of 2011. All the high-tech electronic components are integrated by machine automatically, and the semi-products are assembled in our 12 professional production lines.
1 . If I miss some accessory parts of my QIHAN device, what should I do?
Please contact the dealer/ retailer/ e-tailer/ system integrator or the distributor where you purchased the unit. They can help you to order the parts.
2 . I bought a refurbished QIHAN device but it is dead on arrival (DOA), what should I do?
Please contact the original reseller for DOA return.
You can contact local QIHAN authorized dealer/ retailer/ e-tailer/ system integrator or the distributor for more information about extended warranty.
4 . How do I know that I am buying from QIHAN authorized retailer?
You can email us at our offical websitefor more information.
