720p ahd 10-20m IR distance Megapixel IR dome cameras
megapixel ir dome camera features:
· 1/2.5" Progressive CMOS;
· Standard HD-SDI signal output;
· Full HD resolution, 1920*1080, 25/30fps;
· Mini. Illumination of 0.1Lux color atF1.2, 0Lux B/W atF1.2;
· 2D- NR, AWB, AGC, DPC, HDR, Mirror;
· OSD;
· True day and night with ICR;
· RS-485;
· 3.0 Mega Pixel Lens
megapixel ir dome camera specificaitons:
| Model NO. | QH-3126OC-N | |
| VIDEO | Image Device | 1/4'' HD CMOS |
| TV System | PAL/NTSC | |
| Total Pixiels | 1.024M Pxiels | |
| Effective Pixels | 1280(H)*720(V) | |
| Scanning System | Progressive | |
| Synchronization | Internal | |
| Min. Illumination | 0 Lux (LED on) | |
| S/N Ratio | >58db | |
| Video Output | 1Vp-p,75ohm, BNC | |
| LENS | Focal Length | 2.8MM 3.6MM or 6MM Fixed Lens |
| OPERATIONAL | Day & Night | Auto (ICR) |
| Backlight Compensation | Auto | |
| Gain control | Auto | |
| White Balance | Auto | |
| Electronic Shutter Speed | 1/50(1/60) ~ 1/100,000S | |
| Infrared LED | 24EA | |
| IR Distance | 10 ~ 20 Meters | |
| IR-CUT | YES | |
| Infrared Spectrum | 850nm | |
| OPERATIONAL | Operation Temperature | -10℃~ +60℃ |
| Storage Temperature | -20℃~ +70℃ | |
| Water-proof Casing | Vandal proof | |
| ELECTRICAL | Max Power | 4.72W |
| Adapter Requirement | DC12V1A | |
| MECHANICAL | Color | White |
| Dimensions | 95*73MM | |
| Net Weight | 370g/pcs | |
| Transmission distance | 500meters(75-3) |

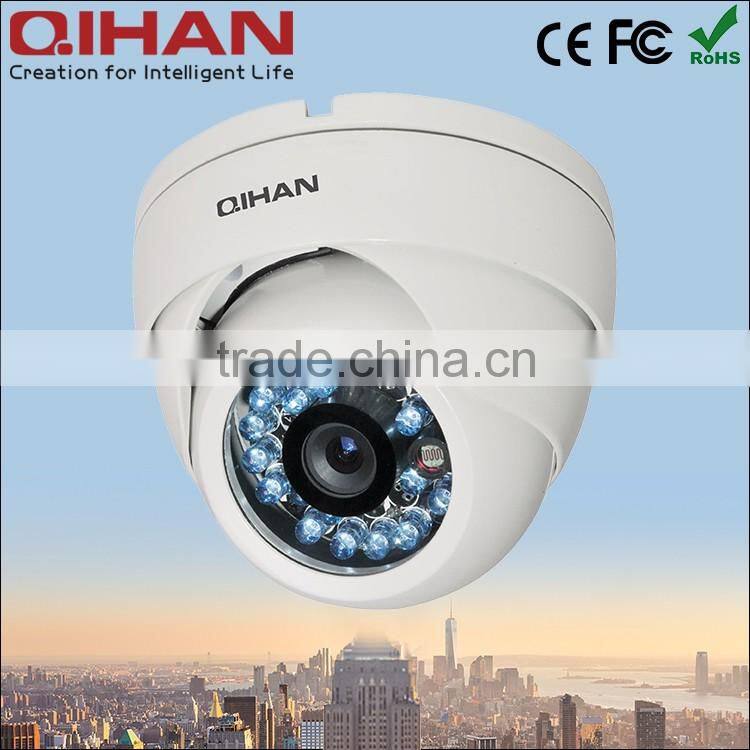

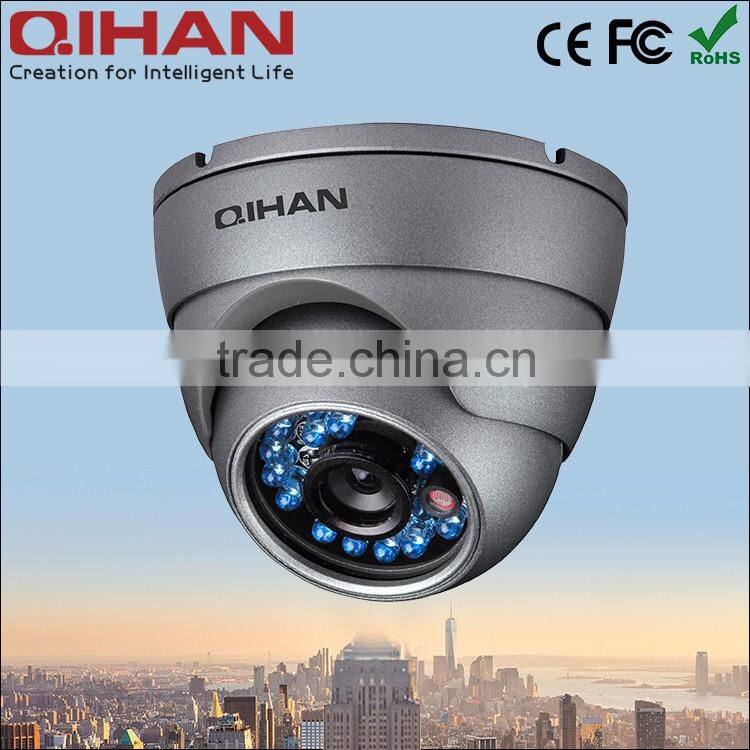

megapixel ir dome camera photos:
Qihan Technology Co., LTD is one of the leading factories which develops and produces CCTV products in China, supported by the Chinese government as the most importantly developed company.Qihan has a R&D headquarter in Shenzhen high-tech research center, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Each month we produce about 80,000 units of cameras and 20,000 units of DVRs, and our capacity is about 100,000 units of cameras and 50,000 units of DVRs monthly. Which accounts for nearly 38 million US Dollars in value in the year of 2011. All the high-tech electronic components are integrated by machine automatically, and the semi-products are assembled in our 12 professional production lines.
1 . If I miss some accessory parts of my QIHAN device, what should I do?
Please contact the dealer/ retailer/ e-tailer/ system integrator or the distributor where you purchased the unit. They can help you to order the parts.
2 . I bought a refurbished QIHAN device but it is dead on arrival (DOA), what should I do?
Please contact the original reseller for DOA return.
You can contact local QIHAN authorized dealer/ retailer/ e-tailer/ system integrator or the distributor for more information about extended warranty.
4 . How do I know that I am buying from QIHAN authorized retailer?
You can email us at our offical websitefor more information.
