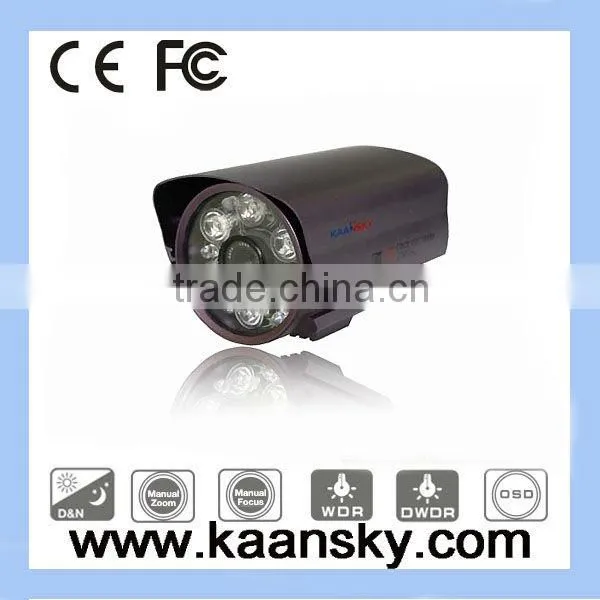

700TVL 1/3" Color Sony Effio Long Range WDR IR Waterproof Camera

700TVL 1/3" Color Sony Effio Long Range WDR IR Waterproof Camera thumbnail-1
700TVL 1/3" Color Sony Effio Long Range WDR IR Waterproof Camera photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kaansky
Model Number:
KST-I101
Contact Supplier Request Quote Chat Now
Shenzhen Kaansky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Kaansky
Model Number KST-I101
Type Analog Camera
Style Box Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

IR Distance 60-70M
Adopting 8PCs 8mm ,8PCs 25mmIR Leds
Standard lens: 12mm lens;6 8mm optionalaa
Dual glass, no diffusion

KST-I101 Waterproof IR Camera
1.IR Distance 60-70M
2.Adopting8PCs *25mm+8PCs *8mm IR Leds
3.Dual glass, no IR diffusion and fog
4.IP66, outdoor installation

Model KST-I101-S342 KST-I101-N48 KST-I101-N60 KST-I101-E52 KST-I101-E65
Image Sensor 1/3" COLOR
Sony CCD		 1/3" COLOR
Super HAD CCD		 1/3" COLOR SONY
Super HADCCD 		1/3" COLOR SONY
EFFIO		 1/3" COLOR SONY
EFFIO
TV System PAL/NTSC
Image Resolution PAL:500(H)×582(V),
NTSC:510(H)×492(V)		 PAL:500(H)×582(V),
NTSC:510(H)×492(V)		 PAL:752(H)×582(V),
NTSC:768(H)×494(V)		 PAL:752(H)×582(V),
NTSC:768(H)×494(V)		 PAL:976(H)×582(V),
NTSC:976(H)×494(V)
Horizontal Resolution 420TVL 480TVL 600TVL 520TVL 700TVL
CCD+DSP 633ccd+3142 633ccd+CP2030 639ccd+CP2040 633CCD+EFFIO4140 673CCD+EFFIO4140
Digital to Analog 9Bit 9Bit 9Bit 9Bit
Minimum illuminator 0.1LUX/F1.2 0.1LUX/F1.2 0.1LUX/F1.2 0.01LUX/F1.2 0.01LUX/F1.2
S/N Ratio >48dB >58dB
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR — D-WDR D-WDR D-WDR D-WDR
DNR — 3D-DNR 3D-DNR 3D-DNR 3D-DNR
OSD — OSD OSD OSD OSD
White Balance ATW ATW/Manual/Auto
AGC AUTO Auto/Manual/Off
BLC ON ON/OFF
Gamma Adjusting 0.45
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
IR 25mm*8pcs+8mm*8pcs
IR Distance 60-70Meter
LENS 8mm lens;(12mm optional)
Voltage DC12V (9V ~ 15V)
Operating Enviroment ~ / 10% ~ 95%RH
Demension 185x120x105mm / BOX:290x215x150mm
Weight G.W/N.W: 1100g/900g
packing pcs/ctn CBM: cm

 700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera

700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera700TVL 1/3" Color Sony Effio long range WDR IR waterproof camera
