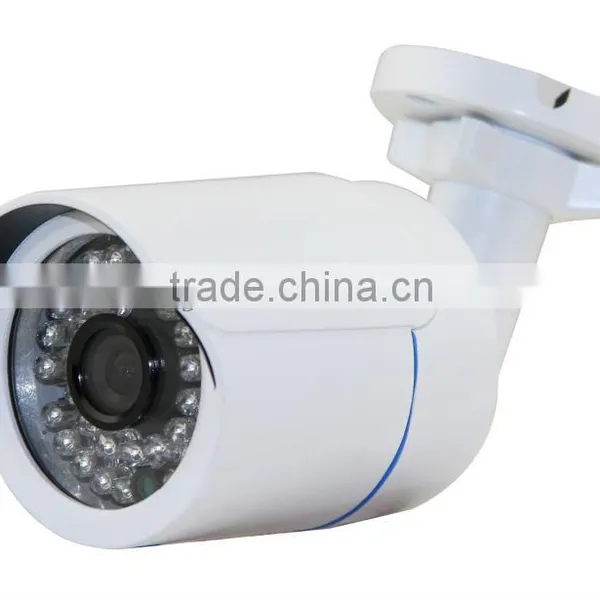

New Design Small Size Camera Model I520 Sony Effio 700TVL

New Design Small Size Camera Model I520 Sony Effio 700TVL thumbnail-1
New Design Small Size Camera Model I520 Sony Effio 700TVL photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KAANSKY
Model Number:
KST-I520-E65
Contact Supplier Request Quote Chat Now
Shenzhen Kaansky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KAANSKY
Model Number KST-I520-E65
Type Analog Camera
Style Bullet Camera
Sensor Other, CCD, 673ccd+EFFIO4140
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

1.Recommended CCTV Analog Camera Model: KST-I520
tv camera manufacturer
3.Support OEM
4.Fast delivery


Name: I520 Focus IR camera
Model: KST-I520
Features:
*IR Distance 15-20M
* Adopting 24PCs *5mm IR Leds
* Standard lens: 3.6mm lens;(2.8mm, 6mm optional)
* Dual glass, no IR diffusion and fog
* IP66, outdoor installation
* Cable-managed Bracket: to prevent external force of destruction such as cutting






Technical Specification:





Model KST-I520-N60 KST-I520-K65 KST-I520-E65 KST-I520-EP70
Image Sensor 1/3" COLOR SONY
Super HADCCD		 1/3" COLOR SONY
Super HAD CCD		 1/3" COLOR SONY
EFFIO		 1/3" COLOR SONY
EFFIO-P
TV System PAY/NTSC
Image Resolution PAL:752(H)×582(V),
NTSC:768(H)×494(V)		 PAL:976(H)×582(V),
NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
NTSC:976(H)×494(V)
Horizontal Resolution 600TVL 650 TVL 700 TVL 700TVL
CCD+DSP 639ccd+CP2040 639ccd+K9 673ccd+EFFIO4140 663ccd+EFFIO-P
Digital to Analog 9Bit
Minimum illuminator 0.1LUX/F1.2
S/N Ratio ≥48dB ≥58dB
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR D-WDR D-WDR D-WDR SUPPER WDR
DNR 2D-DNR 3D-DNR 2D-DNR 3D-DNR
OSD OSD OSD OSD OSD
White Balance ATW/Manual/Auto
AGC Auto/Manual/Off
BLC ON/OFF
Gamma Adjusting 0.45
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
IR 24PCs *5mm
IR Distance 20 Meter
LENS 3.6mm
Voltage DC12V (9V ~ 15V)
Operating Enviroment ~ / 10% ~ 95%RH
Weight 0.3kgs/0.25kgs
packing 158x115x95mm









Certificate:

   New design small size camera Model I520 Sony Effio 700TVL



 New design small size camera Model I520 Sony Effio 700TVL



 Factory:

 New design small size camera Model I520 Sony Effio 700TVL



Trade Show:



New design small size camera Model I520 Sony Effio 700TVL



 New design small size camera Model I520 Sony Effio 700TVL
