2015 New High quality IR Day and Night vision 1mp 720p tvi camera with 72 led cctv camera
Features of 720p tvi camera with 72 led cctv camera:
2 Megapixel HD analog TVI camera
1.Adopting 72PCs *5mm IR Leds 60-70 meters ir vision
2.HD TVI camera:720P,960P,1080P optional

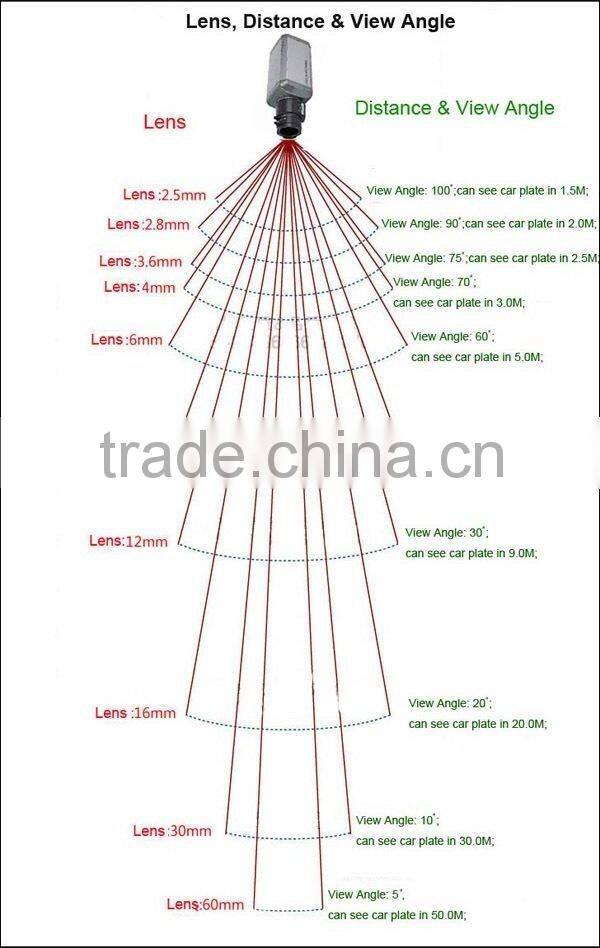

3.Fixed len: 2.8-12mm varifocal lens
4.Build with OSD menu
5.Support CVBS output
6.Dual glass, no IR diffusion and fog
7.IP66 for outdoor installation

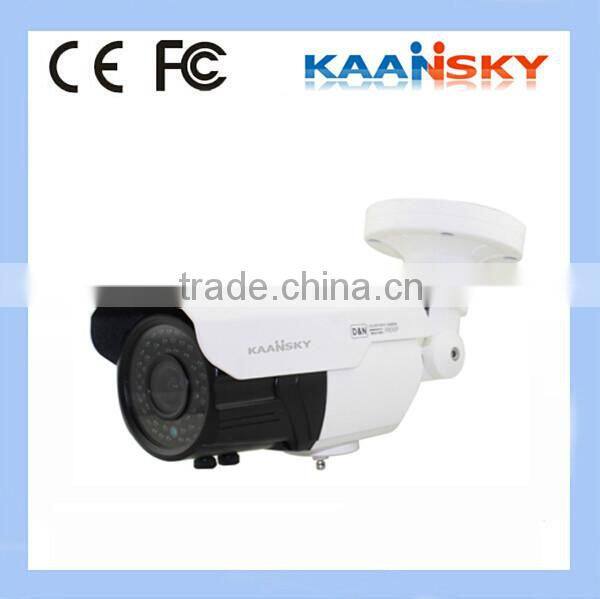

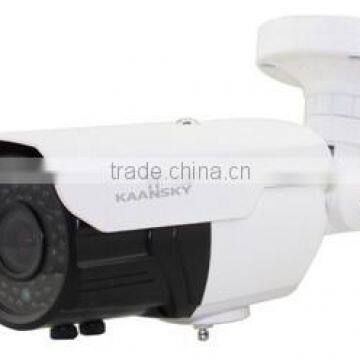

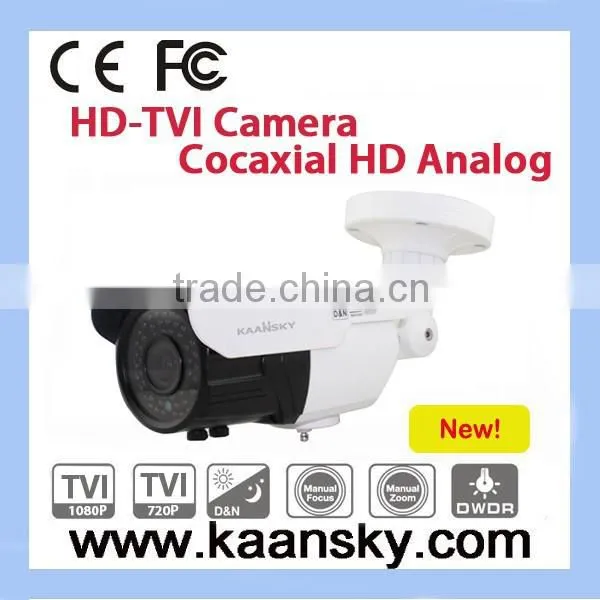

Pictures of 720p tvi camera with 72 led cctv camera:
Datas of 720p tvi camera with 72 led cctv camera:
| Model | KST-F914 | KST-F914-TVI1001 | KST-F914-TVI1301 | KST-F914-TVI2001 |
| Camera | Image sensor | 1/4"CMOS | 1/3"CMOS | 1/3"CMOS |
| Chips | FH8521+MA0141 | FH8521+IMX238 | 2421+IMX222 | |
| Resolution | 1280X720p | 1280X960p | 1920X1080p | |
| Image System | PAL/NTSC | |||
| Min.illumination | 0Lux(IR LED ON) | |||
| Lens | varifocal lens 2.8-12mm | |||
| IR distance | 50-60m | |||
| IR Leds | 72PCs *5mm | |||
| Water proof | IP66 | |||
| Video Output | 1 HDTVI output | |||
| Frame rate | 30fps(60Hz),25fps(50Hz) | |||
| Function | Function Control | / | OSD | |
| BLC&HLC | Yes | |||
| Defog | Yes | |||
| 3D NR | Yes | |||
| Day& Night | B/W, Color, Auto | |||
| Synchronization | Internal Synchronization | |||
| S/R Ratio | >52dB(AGC off) | |||
| AGC | Yes | |||
| White balance | ATW,AWC(indoor,outdoor,Manual) | |||
| Advanced Image | Sharpness,Saturation,Brightness.etc. | |||
| Others | Power supply | DC12V±10% | ||
| Power Consumption | Max 4W | |||
| Dimension | Body:281x98x138mm, Bracket:110x90x90mm | |||
| Packing | 340x164x144mm | |||
| Working Enviroment | -20℃ ~ 60℃,10%~90% humidity | |||
4CH, 8CH, 16CH TVI DVR:
Packing of 720p tvi camera with 72 led cctv camera:
Remark:
1.Print packing box according to your requirements!
2.Your logo & model No. &series No. can be put on the camera and packing!
Shenzhen KAANSKY Technology Co., Ltd.
Why choose KAANSKY:
Professional manufacturer
Shenzhen Kaansky Technology Co.,Ltd is a professional manufacturer of CCTV camera.
Certifications
The factory runs strictly according to ISO9001 and most products have got CE, FCC, CCC, ROHS, and IP66.
Warranty
We provide 2 years warranty for all of our products.
CCTV Camera manufacturer KAANSKY
Production Flow
KAANSKY on the CCTV Camera Trade show
Certification
2 years warranty time
Our Services:
1.Warranty:
All our products are in 2 years warranty.
2.OEM & ODM:
30pcs free to print logo, 500pcs free to design color box.
3.Fast delivery:
Sample 3-5 days.7-15days for large order after get payment.
4.Shipping:
We have good cooperation with DHL,TNT,UPS,FEDEX,EMS.
5.Golden Reply:
Any of your inquire and problem, will be replied within 24 hours.
Q1:How's the resolution of HD TVI Camera?
A:720P 1megapixel,960P 1.3 megapixel and 1080P 2megapixel
Q2:Is there OSD controler for the TVI camera?
A:for now,1080p tvi camera with osd button
Q3:Do you offer dvr for TVI camera?
A:yes,we offer 4ch,8ch and 16ch
Q: I need OEM.
A: Yes, we support OEM order.
Q: Can i print my logo?
A: 1pc is available to print logo, 30pcs free to print your logo, and 500pcs free to design the color box.
