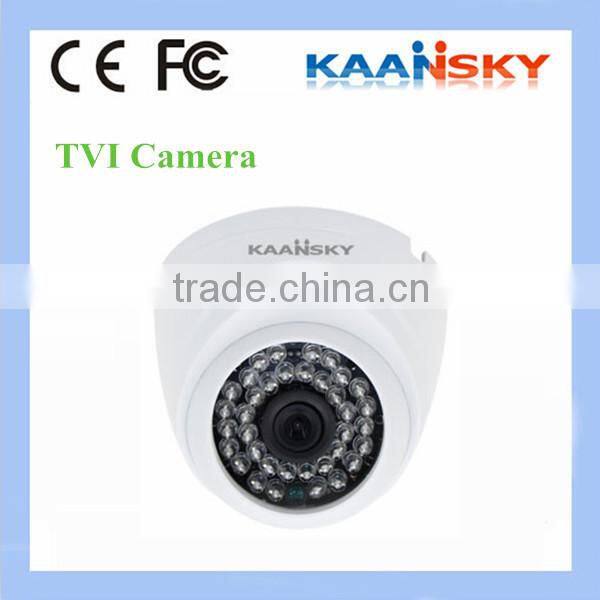

2015 KAANSKY New Design mini camera module 1mp 2mp hdtvi dome camera with high quality
Features:
2 Megapixel HD analog TVI camera
1.Adopting 36PCs *5mm IR Leds 30-40 meters ir vision
2.HD TVI camera:720P,960P,1080P optional
3.Fixed len: 2.8-12mm varifocal lens
4.Build with OSD menu
5.Support CVBS output
6.Dual glass, no IR diffusion and fog
7.IP66 for outdoor installation

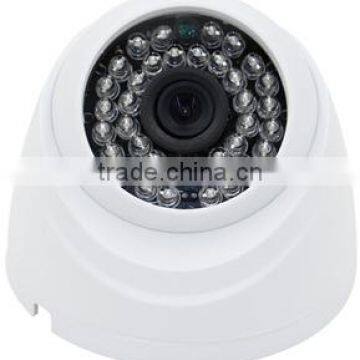

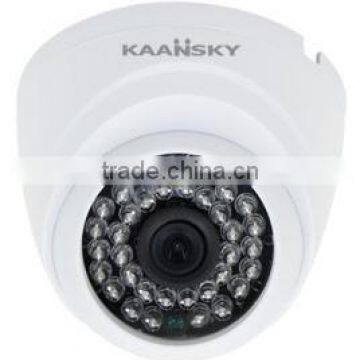

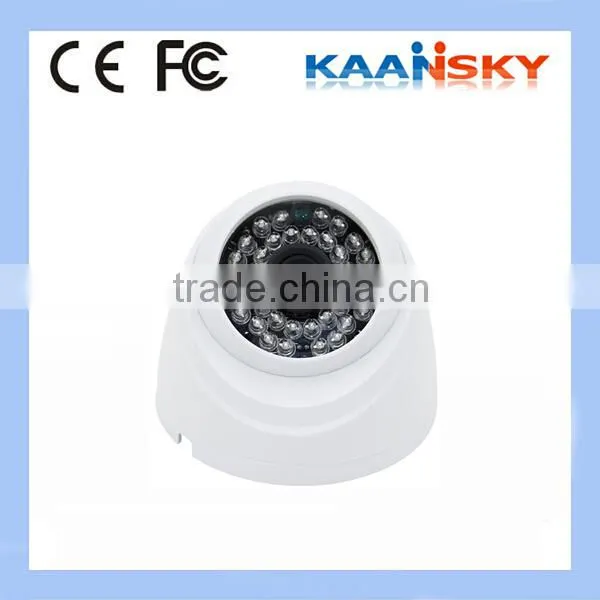

Pictures:
Datas:
| Model | D78-TVI1002 | D78-TVI1301 | D78-TVI2001 |
| Image Sensor | 1/2.9” Progressive Scan CMOS | 1/3” 1.37Mega Progressive Scan CMOS | 1/3” 2.0Mega Progressive Scan CMOS |
| Effective Pixels | 1280(H)×720(V) | 1312(H)×1069(V) | 1956(H)×1266(V) |
| Video Frame Rate | 25fps/720P | 50fps/720P | 1080p/25fps/ 1080p/30fps |
| Electronic Shutter |
PAL 1/25-1/100, 000Sec; NTSC 1/30-1/100, 000Sec |
PAL 1/50-1/50, 000Sec; NTSC 1/60-1/50, 000Sec |
PAL 1/25-1/50, 000Sec; NTSC 1/30-1/50, 000Sec |
| Synchronization | Internal | ||
| Mini. Illumination | 0.001Lux/F1.2(AGC ON), 0Lux IR on |
0.001Lux /(F1.2,AGC ON),0 Lux with IR 0.0014Lux / (F1.4,AGC ON),0 Lux with IR |
|
| Video Output | 1-channel BNC HDTVI high definition video output | ||
| Max. IR LEDs Length | 25-30m | ||
| IR LEDs | f5X36PCS | ||
| Day/Night | 3.6mm | ||
| Noise Reduction | 2D | ||
| Lens | 3.6MM | ||
| General | |||
| Transmission Distance | Over 500m via 75-3 coaxial cable | ||
| Power Supply | DC12V±15% | ||
| Ingress Protection | IP66 | ||
| Power Consumption | Max 4W | ||
| Working Environment | -20°C~+65°C / Less than 90%RH | ||
| Dimensions(W×D×H) | 115x115x90mm | ||
| Weight | 0.5kg | ||
Picture of 4CH, 8CH and 16CH TVI DVR:
Packing:
Remark:
1.Print packing box according to your requirements!
2.Your logo & model No. &series No. can be put on the camera and packing!
Shenzhen KAANSKY Technology Co., Ltd.
Why choose KAANSKY:
Professional manufacturer
Shenzhen Kaansky Technology Co.,Ltd is a professional manufacturer of CCTV camera.
Certificates
The factory runs strictly according to ISO9001 and most products have got CE, FCC, CCC, ROHS, and IP66.
Warranty
We provide 2 years warranty for all of our products.
CCTV Camera manufacturer KAANSKY
Production Flow
KAANSKY on the CCTV Camera Trade show
Certification
2 years warranty time
Our Services:
1.Warranty:
All our products are in 2 years warranty.
2.OEM & ODM:
30pcs free to print logo, 500pcs free to design color box.
3.Fast delivery:
Sample 3-5 days.7-15days for large order after get payment.
4.Shipping:
We have good cooperation with DHL,TNT,UPS,FEDEX,EMS.
5.Golden Reply:
Any of your inquire and problem, will be replied within 24 hours.
Q1:How's the resolution of HD TVI Camera?
A:720P 1megapixel,960P 1.3 megapixel and 1080P 2megapixel
Q2:Is there OSD controler for the TVI camera?
A:for now,1080p tvi camera with osd button
Q3:Do you offer dvr for TVI camera?
A:yes,we offer 4ch,8ch and 16ch
Q: I need OEM.
A: Yes, we support OEM order.
Q: Can i print my logo?
A: 1pc is available to print logo, 30pcs free to print your logo, and 500pcs free to design the color box.
Other questions, pls send.
Skype: kaansky_mae
Wechat: 712719128
