Chinese Low Price Stainless Steel Gate Valve Pn16
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Stainless Steel Basket Filter
-
ST16C,ST34C HIGH QUALITY IRON FLANGED T-SHAPED STRAINER
-
Explosion Prevention Fire Retardant Pressure Water Pipe Vent Valve
-
API SS316 T Type Flanged Water Strainer for Water Class150/300/600
-
Stainless Steel Integral High Temperature Ball Valve Dn20
-
Normally Closed Compact Size Low Power Steam 3 Inch Solenoid Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | High Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | dn10-300 | |
| Place of Origin | Guangdong, China | Model Number | gz | |
| Brand Name | joto |
Product Description

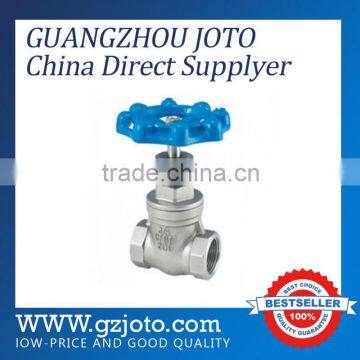

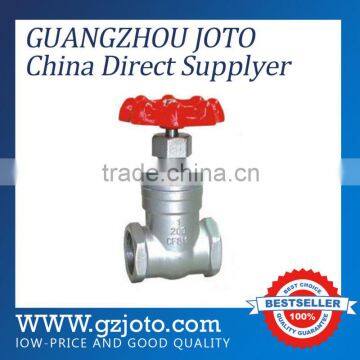

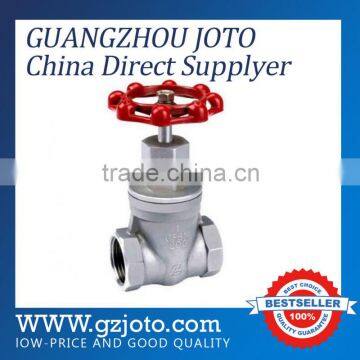

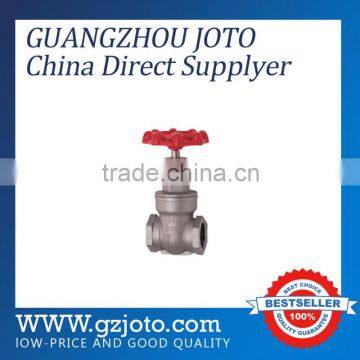

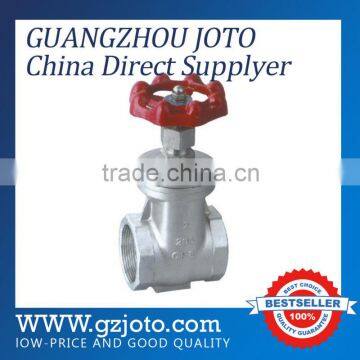

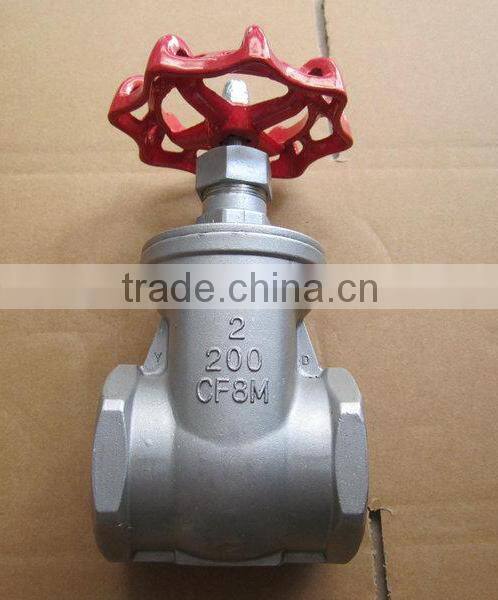

Chinese low price Stainless Steel gate valve pn16
Valve suitable working medium is water, oil, gas, operating temperature t≤ + 150 ℃, the interface is a cylindrical pipe thread to ISO228. Valve is off pieces (gate) to move along the axis perpendicular to the direction of the channel valves in the pipeline mainly as cutting medium, namely the use of fully open or fully closed. Advantages gate is a small fluid resistance, the torque required to open and close small, medium flow unrestricted, fully open the seal surface by erosion of the working medium is small, simple structure, the manufacturing process is better, is the application of a wide range of valves category.
PARAMETER DATA:
| 1 | Pressure | 1.0,1.6,2.5Mpa |
| 2 | Nominal Diameter | 15-100mm |
| 3 | Suitable medium | water, oil, gas and other non-corrosive liquids |
| 4 | Temperature | 0 ~ 180 ℃ |
| 5 | Design and manufacture | ANSIB16.34 API600 API602 |
| 6 | flange size | ANSIB16.5 |
| 7 | Pressure and Temperature | ANSIB1.20.1 |
| 8 | Length of the structure | ANSIB16.10 |
| 9 | Butt connection size | ANSIB16.11 |
| 10 | Inspection and testing | API598 |

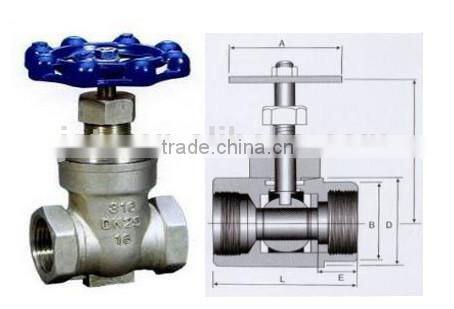

I. Main outer size (mm)
DN | G | L | E | D | H | A | B |
6 | 1/4" | 15 | 23 | 20 | |||
10 | 3/8" | 15 | 26 | 23 | |||
15 | 1/2" | 55 | 17 | 31 | 94 | 70 | 28 |
20 | 3/4" | 60 | 18 | 38 | 102 | 70 | 35 |
25 | 1" | 66 | 20 | 46 | 114 | 80 | 42 |
32 | 1-1/4" | 75.5 | 21.5 | 56 | 124 | 80 | 51 |
40 | 1-1/2" | 85 | 23 | 63 | 152.5 | 100 | 59 |
50 | 2" | 96 | 24.5 | 76 | 169.5 | 100 | 71 |
II. Specification
Nominal pressure(Mpa) | PN | 1.5,2.6,4.0,5.4 |
Strength testing pressure(Mpa) | PT | 2.4,3.6,6.0,9.6 |
Low pressure seal test(Mpa) |
| 0.6 |
High pressure seal test(Mpa) |
| 2.0,3.0,4.8,7.6 |
Applicable medium | water, oil, gas, nitric acid, acetic acid | |
Applicable temperature | -40 ~ 180 ℃ | |
Part name | Material |
body | WCB,ZG1Cr18Ni9Ti,CF8,CF8M |
Disc | 1Cr18Ni9Ti 304,316 |
stem | 1Cr18Ni9Ti 304,316 |
Seal ring | 304,316(CF8,CF8M) |
Packing | Polytetrafluoroethlene (PTFE) |
