ST16C,ST34C Stainless Steel Big Flow High Quality t Type Strainer

ST16C,ST34C Stainless Steel Big Flow High Quality t Type Strainer thumbnail-1
ST16C,ST34C Stainless Steel Big Flow High Quality t Type Strainer thumbnail-2
ST16C,ST34C Stainless Steel Big Flow High Quality t Type Strainer photo-1

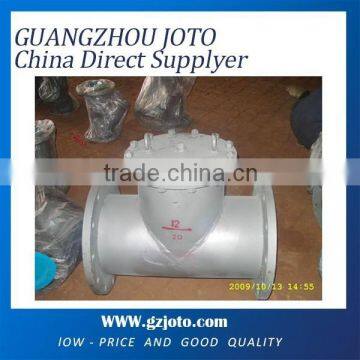

ST16C,ST34C Stainless Steel Big Flow High Quality t Type Strainer photo-2
US$ 89 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Strainer
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Guangzhou Joto Valve & Pump Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Other, Strainer
Pressure Medium Pressure
Power Manual
Material Other, Stainless Steel, Cast Iron, Stainless steel
Temperature of Media Medium Temperature
Media Water
Port Size DN50-300
Place of Origin Zhejiang, China
Model Number ST16C,ST34C
Brand Name JOTO

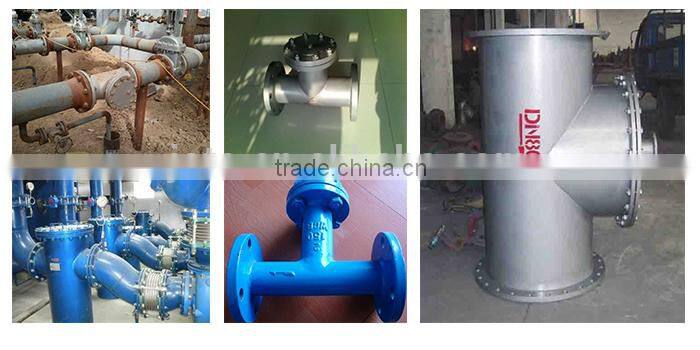

ST16C,ST34C stainless steel big flow high quality t type strainer


ST16C,ST34C stainless steel big flow high quality t type strainerIntroducton:



ST16C, ST34C type T-type filter is piped liquid during the removal of solid impurities equipment. When the liquid flow through the filter, where impurities are filtered out to protect pumps, compressors, meters and other devices to work properly. When you need cleaning, simply remove the removable cartridge, remove the filter out impurities, you can reload, use and maintenance is very easy.



T-type filter medium is suitable for:

1. chemical, oil production and urban heating in weak corrosive materials, such as water, ammonia, oil, hydrocarbons;

2. chemical production of corrosive materials such as soda ash, sulfuric acid, nitric acid and acetic acid;

3. refrigeration, air separation production of low-temperature materials, such as liquid methane, nitrogen, oxygen and a variety of refrigerant;

4. light food, pharmaceutical and health requirements for the production of materials, such as beer, beverage, pharmaceutical supplies.



Product Parts Materials:

ST16C,ST34C

MODEL BODY MATERIAL
ST16C-J16 25,WCB,CF8,CF8M,CF3,CF3M
ST16C-J25
ST16C-J40
ST16C-J20
ST16C-J50
ST34C-J16
ST34C-J25
ST34C-J40
ST34C-J20
ST34C-J50







 Techincal data:

ST16C,ST34C TYPE

MODEL PN WORKING PRESSURE/KG TEMPERATURE ℃ For media
ST16C-J16 16 1.6 -29~425 Water, oil, steam, etc.
ST16C-J25 25 2.5
ST16C-J40 40 4.0
ST16C-J20 20 2.0
ST16C-J50 50 5.0
ST34C-J16 16 1.6
ST34C-J25 25 2.5
ST34C-J40 40 4.0
ST34C-J20 20 2.0
ST34C-J50 50 5.0





 Structure:

ST16C (mm)

DN L L1 L2 B  Outfall Effective filtration area / m2 weight/kg
Ⅰ Ⅱ Ⅲ
50 402 222 64 R1/2 DN20 Plane  RF DN20 Convex  M 0.00387 8
65 469 255 76 0.00592 12
80 512 282 89 0.00811 15
100 590 330 105 0.013 23
150 773 423 143 R3/4 0.026 47
200 951 510 178 0.0459 98
250 1099 599 216 0.0706 154
300 1291 691 254 0.0942 232



ST34C (mm)

DN L L1 L2 B  Outfall Effective filtration area / m2 weight/kg
Ⅰ Ⅱ Ⅲ
50 268 298 158 R3/8 DN20 Plane  RF DN20 Convex  M 0.00277 13.6
65 304 337 179 0.00421 18.9
80 330 370 195.5 0.00552 24
100 382 432 225 0.0088 36
150 482 557 280 0.01696 68
200 578 678 332.5 0.0355 140
250 666 791 383 0.0529 216
300 768 918 437 0.0686 315





ST16C,ST34C stainless steel big flow high quality t type strainer
