H.264 4 ch Cctv Ahd Dvr Kit With 4 Ahd Camera High Performance P2P Cloud Service

Name: H.264 4 ch Cctv Ahd Dvr Kit With 4 Ahd Camera High Performance P2P Cloud Service
Brand: KAANSKY
SKU: 122038375

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KAANSKY

Model Number:

KST-AS-A4

Shenzhen Kaansky Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KAANSKY

Model Number KST-AS-A4

Specifications

fessional manufacturer in Shenzhen.
2.OEM,ODM
3.CE,FCC,CCC,RoHS

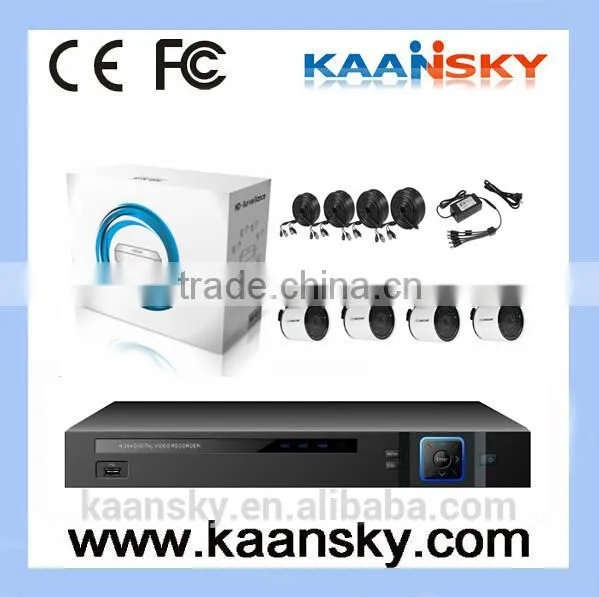

AHD DVR KIT

1. 1pc AHD H.264 Digital Video Recorder
2. 4pcs AHD IR Camera(36pcs IR LEDs)
3. 4pcs 18.3meter Cables
4. 1pc Power Supply+spiliter

AHD Camera Specification

Model	I636-AHD1001	I636-AHD1002	I636-AHD1301
Image Sensor	1/4"CMOS 1.0 Megapixel	1/4"CMOS 1.0 Megapixel	1/3"CMOS 1.3 Megapixel
Effective Pixels	1280(H)×720(V)	1280(H)×720(V)	1280(H)×960(V)
Video Frame Rate	PAL: 25fps/720P NTSC: 30fps/720P	PAL: 25fps/720P NTSC: 30fps/720P	PAL: 25fps/960P NTSC: 30fps/960P
Electronic Shutter	Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec
Synchronization	Internal
Mini. Illumination	0.001Lux/F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDAHD high definition video output
Max. IR LEDs Length	25-30m, Smart IR
IR LEDs	f5X36PCS
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D
Lens	3.6MM
General
Transmission Distance	Over 500m via 75-3 coaxial cable
Power Supply	DC12V±10%
Ingress Protection	IP66
Power Consumption	Max 4W
Working Environment	-30°C~+60°C / Less than 95%RH
Dimensions(W×D×H)	195x123x117mm
Weight	0.5kg

AHD DVR Specification

Model		KST-8304
OS	Operating system	Embedded Linux
Video	Video Compression	H.264
	Recording resolution	PAL:1280720P /960H576 ;NTSC:1280720P /960H480
	Frame rate	PAL:1~25fps; NTSC: 1~30fps
	Multi-Mode input	4ch 720P;2ch 720P+2ch 960H;4ch 960H
Audio	Audio encode standard	G.711
Audio	Audio bite rate	64Kbps
Video/Audio ports	Video input	4ch,BNC
	Video output	1ch BNC, 1ch VGA, 1ch HDMI output
	Audio input/output	4ch audio input,1ch output
Recording	Record mode	Manual>alarm>motion detection>timing
	Playback	4ch playback at same time
	Backup mode	Network backup, USB Hard Disk
Network	IE	Built-in WEB Server
	Mobile surveillance	Support iPhone, Blackberry & Android Symbian mobile phone remote view
	P2P	support
Communication	Ethernet	RJ45 10M/100M adaptive Ethernet network port
	PTZ control	1RS485; Support PTZ Controls
	USB	2xUSB ports
HDD	HDD port/Capacity	2SATA ports (each max supports 4T)
Others	Power Supply	DC12V
	Power Consumption	<15W(without HDD)
	Working enviroment	-10℃-+55℃/10%~90%RH
	Dimensions	375x270x45mm
