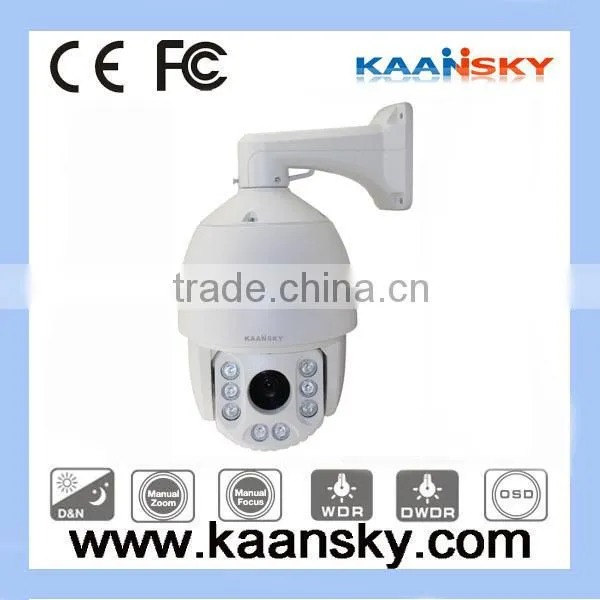

Help CenterDay & Nigh 120M Long Range PTZ Camera, 8*HLED 120M IR Distance
Related Products
-
Intelligent Ptz Rs485 Protocal High Speed Dome Camera IR CCTV Ptz CameraUS$ 10 - 150MOQ: 1 Piece -
Outdoor 700tvl 36x Ptz Camera With Night Vision 120 Meters ir RangeUS$ 10 - 150MOQ: 1 Piece
-
2014 Best Seller Sony 139 700TVL 30X Zoom PTZ Dome CameraUS$ 10 - 150MOQ: 1 Piece
-
2014 Hot Sale High Quality PTZ Camera, OSD Function OptionalUS$ 10 - 150MOQ: 1 Piece
-
2014 New Design 30x Zoom 700TVL Outdoor PTZ Camera IP66US$ 10 - 150MOQ: 1 Piece
Features:
Name: SD106 High speed dome camera
Model: KST-SD106
Features:
With Chinese and English Menu,Image, OSD Function(optional)
Adopt 0.1 Degree Step Dotor , NO picture ,Shaking Shen Sorking in LOW speed,
Built-in Kinds of Integrated Intelligent cameras
128 Preset Positions, Support Scenario Name Setting,Support privacy hidden function
8 pcs Cruising Tracking,(Max 16 Preset Positions in Each Cruising Tracking )
Pan Speed 0.1°-360°/S, No monitoring Dead Zone Support One Channel Switching Value
Bulit in English OSD menu
360° continuous running, Vertical range: 0°~90°, Auto flip: 180°.
Rotation speed: pan: 0.05°/S-300°/S, Tilt: 0.03°/S-200°/S.
Presets:255 presets(preset accuracy+- 0.01°),
PTZ address 1~255, which can be set by the remote
Cruise scan: 8 groups, each group can be with 16 presets
Pattern scan: 4 groups pattern scan, 4 groups A-B scan
System has power-off protection, PTZ will restore to the state before power off
PTZ restarts automatically by calling preset91, which without power-off
PTZ can work automatically when it's freem such as call presetns, running pattern scanning and cruise scanning, etc
Privacy zone: 24 zones, which only support Sony camera module.
PTZ can work with different camera module, such as Sony, Samsung, LG, YOko, Hitachi, etc.
Image Sensor |
1/4" SONY CCD |
Signal Model |
PAL/NTSC |
Horizontal Resolution |
650TVL |
Effective PiXel |
PAL: 752(H)*582(V) NTSC; 768(H)*494(V) |
Minimum Illumination |
0LUX,Color to B/W,IR sensor,IR-CUT |
S/N Radio |
52dB(enhanced) |
Backlight Compensation |
on/off |
White Balance |
Auto |
Electronic Shutter |
1/50~1/12000s |
Focus Length |
3.2~86.4mm |
Optical Focus |
27X/30X |
Focus |
Auto/manual,take high-performance DSP to realise complete digital and ultra-high speed focus function |
Presets |
256 |
Patrol Track |
4 groups, each can record 200 actions |
Cruise Track |
8 groups, every group have 30 presets can join cruise,can setting the presets' residence time |
Other Scan |
4 groups, support horizontal scan ,deuce area scan ,scan random |
Rotation Range |
horizontal 360°unlimted rotation,vertical 180°,auto reversal |
Rotation Speed |
horizontal & vetical min 0.01,max 200/s |
Communications |
RS-485,PELCO D,PELCO P |
OSD. |
Full-screen chinese/English menu |
Special function |
AWB, MASK, DNR, Strong light optimizer, Mirror, DSS |
Temperature |
Built-in |
Intelligent IR Lamp |
150m,auto-swicth the distance according to the focus of camera or force to turn on/off IR lamp by software |
Power Supply |
DC12V/4A |
Mater |
Aluminum shell,waterproof IP66 |
Work Environment |
-20.~+50.(temperature-control system F12is optional),less than 95%RH |
