Specifications
Waterproof SDI Camera1. Professional CCTV camera manufactory
2. Accept OEM order.
3. Have CE, FCC, ISO9001,and RoHS

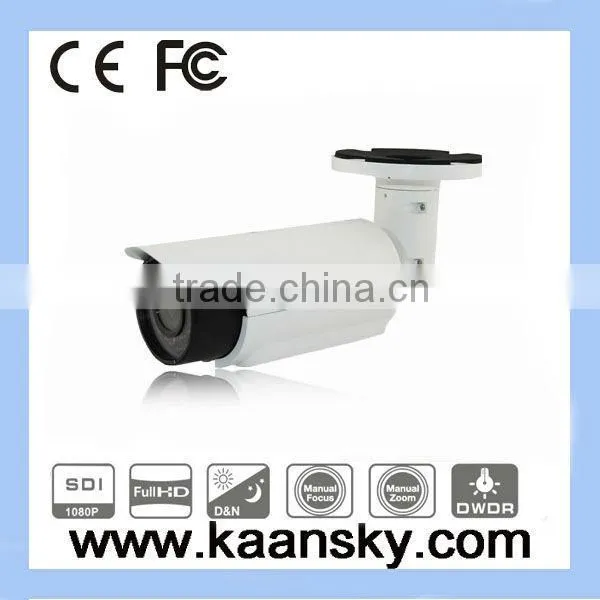

IP67 Waterproof 1920*1080P 2.0 Megapixel Digital HD SDI Camera
About us:
Shenzhen KAANSKY Technology Co., Ltd. is a high-tech enterprise integrating technical consultation, product development, production and sales. With 6 years experience in manufacturing cctv camera, more than 100 skilled workers can produce 30,000 high-quality CCTV camera monthly for OEM orders. supported by the strong R&D team. Our products have honored certificates of CE, FCC, CCC, ROHS, and IP66.
Our main is "Common make Uncommon" !
OEM/ODM Service:
Our company has long term and extensive experience in OEM/ODM service; we sincerely hope to make the cooperation with any company, enterprise and individual with OEM/ODM service. We can assist you from the sample to the final product as follow.
Features:
*1/3- type SONY CMOS CMOS IMX122 Sensor
*Suppor 2 Megapixels 1080P
*HD-SDI Output , real time coaxial cable Transmission
*No Compress Digital Rate up to 1.5Gbps
*Min.Illumination: Color 0.3Lux @F1.2, B/W 0.01Lux/F1.2
*OSD menu, auto white balance, Mirror Image
*Digita Noise Reduction
*Adjustable Focus Externally
*High Sensitivity, No Chromatic Aberration
more details:
| ITEM | HI21-SDI2001 | ||||
| Imaging Sensor | 1/3” Sony CMOS(IMX122) | ||||
| Total Pixels | 2010(H) x 1108(V) = 2,227,080 (pixel) | ||||
| Active pixels | 1944(H) x 1092(V) = 2,122,848 (pixel) | ||||
| Scanning system | Progressive Scan | ||||
| Resolution | Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) More than 1000 TVL(1080p) |
||||
| Min. illumination | Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux |
||||
| S/N Ratio | More than 50dB (AGC off) | ||||
| Video Output | HD-SDI Analog : NTSC, PAL(w/o WDR) |
||||
| LENS | DC(ALC)/Manual(ELC) | ||||
| BRIGHTNESS | 0 ~ 20 | ||||
| SHUTTER | AUTO/MANUAL(1/30(25)~1/6000) | ||||
| SENS-UP | OFF/x2/x3/x4/x5/x6/x7/x8 | ||||
| AGC | 0 ~ 20 | ||||
| BACKLIGHT | OFF/HLC/BLC/WDR | ||||
| DAY&NIGHT | AUTO/COLOR/B&W/EXT. | ||||
| WHITE BAL. | AUTO/AUTOext/PRESET/MANUAL | ||||
| DNR | OFF/LOW/MIDDLE/HIGH | ||||
| SHARPNESS | 0 ~ 100 | ||||
| MIRROR | ON/OFF | ||||
| FLIP | ON/OFF | ||||
| D-WDR | OFF/LOW/MIDDLE/HIGH | ||||
| SHADING | ON/OFF | ||||
| PRIVACY | ON(32 Points)/OFF | ||||
| MOTION | ON/OFF | ||||
| OUTPUT MODE | 1080P | ||||
| FRAME RATE | 25 FPS/30 FPS | ||||
| CVBS | NTSC/PAL | ||||
| LANGUAGE | ENG/CHN | ||||
| Power | DC12V±10% | ||||
| Video Output(HD-SDI) | MMCX Connector | ||||
| Storage Temperature | -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH) | ||||
| Dimension (H x V x T) | 160mm x 80mm x 80mm | ||||
Factory pictures :
Certifications :
The packing :
More information you will interested :
Q:How can we get samples from you?
A:Clients select the interested items, including product name and quantity
B: We need your address for checking air shipping cost.
C: We make Sample PI for you
D: You make the transfer
E: Samples will be sent out once we get the transfer, and we'll provide the UPS Tracking number.
Q: How many days do we need to wait for the samples?
A: If for our brand products, we can ship them out with 5 working days. If for OEM samples, 1 week is required to prepare samples.
Q: What’s the MOQ?
A: Depends on what products that you need, if go with our brands, the MOQ is 100.
B: As for OEM, it depends on the carton,the label,the logo. the MOQ is 5,00pcs.
Q: Can we be your distributor? What’s the requirement of being distributors?
A: Welcome to being distributor, we’d like to invite partners to be our distributors and enjoy our brand reputation. We have a small request, pls send us email, we’ll call you or email you right away.
Q: What’s the delivery date?
A: If for our brand products, we’ll ship the goods within 3-5 working days. If for OEM products, it’s about 10-15days, depends on the quality packaging.
Q: What’s your payment terms?
A: For those lower than USD15,000/order, need to pay 100% once confirming the order. For above amount, 40% deposit, and the balance before delivery date. And we accept LC also.
Q: How can we pay you?
A: We accept Western Union, TT and LC, you can select which type is most suitable for you.
