Specifications
effio-p camera1.IR Distance 30-40M
2.Adopting42PCs *F5mm IR Leds
3.IP66, outdoor installation
abotu us:
Shenzhen KAANSKY Technology Co., Ltd. is a high-tech enterprise integrating technical consultation, product development, production and sales. With 6 years experience in manufacturing cctv camera, more than 100 skilled workers can produce 30,000 high-quality CCTV camera monthly for OEM orders. supported by the strong R&D team. Our products have honored certificates of CE, FCC, CCC, ROHS, and IP66.
Our main is "Common make Ucommon" !
OEM/ODM Service:
Our company has long term and extensive experience in OEM/ODM service; we sincerely hope to make the cooperation with any company, enterprise and individual with OEM/ODM service.

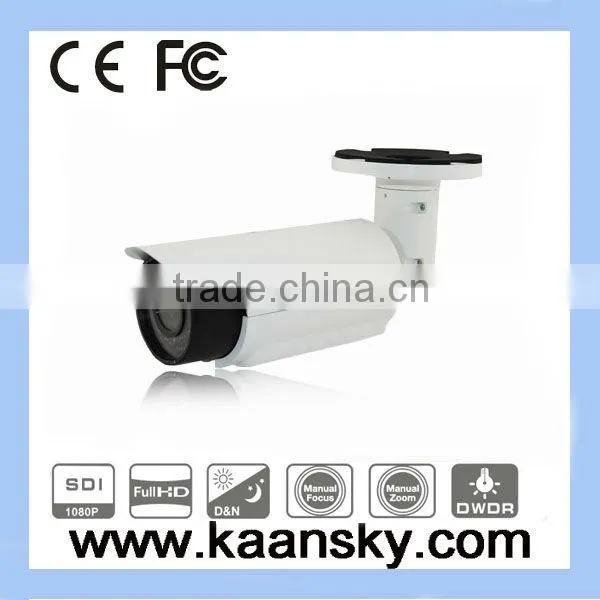

1080P HD SDI Camera suppotr IE and phone brower
Features:
1.High Definition Mega Pixels HD-SDI Camera
2.1/3''Progressive scan CMOS Sensor
3.Max.1920(H)x1080(V) 2Megapixels
4.TDN(ICR),DSS,OSD,DWDR
5.Excellent low light sensitivity(0.05Lux,B/W)
6.3D-DNR,BLC,Digital Zoom(Max.20x)
7.2Megapixels real time with coaxial cable
8.1CH CVBS output support
9.Dual glass, no IR diffusion and fog
10.IP66,outdoor installation
11.IR Distance 30-40M
12.Adopting 42PCs F5mm IR Leds
13.Standard lens: 2.8-12mm manual VF lens;(4-9mm / 9-22mm optional)
| Specifications | ||||||
| Imaging Sensor | 1/3” Panasonic CMOS(MN34041PL) | |||||
| Total Pixels | 2010(H) x 1108(V) = 2,227,080 (pixel) | |||||
| Active pixels | 1944(H) x 1092(V) = 2,122,848 (pixel) | |||||
| Scanning system | Progressive Scan | |||||
| Resolution | Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) More than 1000 TVL(1080p) |
|||||
| Min. illumination | Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux |
|||||
| S/N Ratio | More than 50dB (AGC off) | |||||
| Video Output | HD-SDI Analog : NTSC, PAL(w/o WDR) |
|||||
| LENS | DC(ALC)/Manual(ELC) | |||||
| BRIGHTNESS | 0 ~ 20 | |||||
| SHUTTER | AUTO/MANUAL(1/30(25)~1/6000) | |||||
| SENS-UP | OFF/x2/x3/x4/x5/x6/x7/x8 | |||||
| AGC | 0 ~ 20 | |||||
| BACKLIGHT | OFF/HLC/BLC/WDR | |||||
| DAY&NIGHT | AUTO/COLOR/B&W/EXT. | |||||
| WHITE BAL. | AUTO/AUTOext/PRESET/MANUAL | |||||
| DNR | OFF/LOW/MIDDLE/HIGH | |||||
| SHARPNESS | 0 ~ 10 | |||||
| MIRROR | ON/OFF | |||||
| FLIP | ON/OFF | |||||
| D-WDR | OFF/LOW/MIDDLE/HIGH | |||||
| SHADING | ON/OFF | |||||
| PRIVACY | ON(32 Points)/OFF | |||||
| MOTION | ON/OFF | |||||
| OUTPUT MODE | 720P/1080P | |||||
| FRAME RATE | 25 FPS/30 FPS | |||||
| CVBS | NTSC/PAL | |||||
| LANGUAGE | ENG/CHN | |||||
| Power | DC12V±10% | |||||
| Video Output(HD-SDI) | MMCX Connector | |||||
| Storage Temperature | -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH) | |||||
Dimension(mm):
cretification:

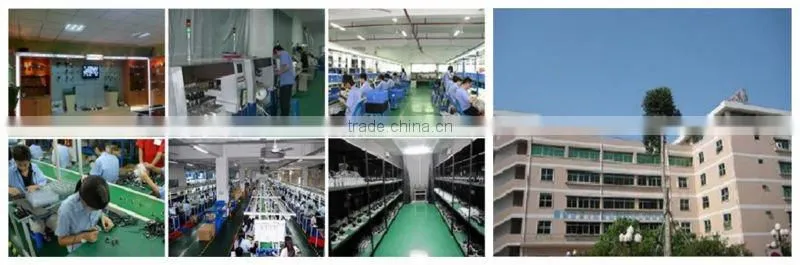

factory picture :
packing box:
outside packing:
