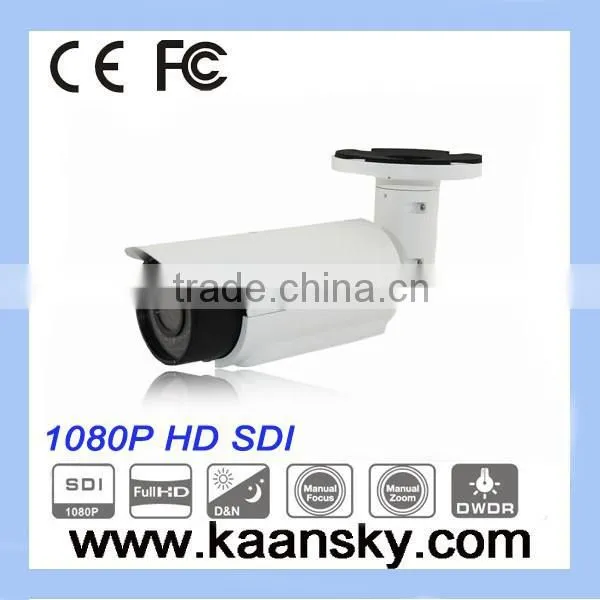

Full HD SDI IR Waterproof Bullet 1080P Camera/varifocal Lens 2.8-12mm Auto Iris Lens

Name: Full HD SDI IR Waterproof Bullet 1080P Camera/varifocal Lens 2.8-12mm Auto Iris Lens
Brand: Kaansky
SKU: 122034491

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Kaansky

Model Number:

KST-F715-SDI2002

Shenzhen Kaansky Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Kaansky

Model Number KST-F715-SDI2002

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

Specifications

Professional cctv camera manufacturer
CE,FCC,Rohs and ISO9001certification
Accept OEM order
Fast delivery

HD SDI Specification
1.high Definition Mega Pixels HD SDI camera 2.1/3'' Progressive scan CMOS Sensor 3.Max.1920(H)x1080(V) 2Mega Pixels 4.TDN(ICR),DSS,OSD 5.Excellent low light sensitivity 6.3D-DNR,BLC,Digital Zoom 7.2 Mega-Piexls real time with coaxial cable 8.1CH CVBS output support








Model
Image Sensor	1/3'' Panasonic CMOS(MN34041PL)/1/3'' SONY CMOS(IMX122)
Total Pixels	2010(H)x1108(V)=2,227,080(piexl)
Active Pixels	1944(H)x1092(V)=2,122,848(piexl)
Scanning system	Progressive scan
Resolution	Digital:1920x1080p(1080p/30fps)
	More than 1000tvl(1080P)
Min.illumination	Color:1.0 lux,BW:0.5lux
	Color DSS:0.002 lux,BW DSS:0.001lux
S/N Ratio	>50dB(AGC off)
Video Output	HD SDI/CVBS
	Analog:NTSC,PAL(w/o WDR)
Lens	DC(ALC)/Manual(ELC)
Shutter	Auto/Manual(1/30(25)~1/6000)
Sens-up	OFF/x2/x3/x4/x5/x6/x7/x8
AGC	0~20
Day&night	Auto/Color/B&W/EXT
White Bal.	Auto/Auto ext/Preset/Manual
DNR	OFF/LOW/MIDDLE/HIGH
Sharpness	0~10
Mirror	ON/OFF
Flip	ON/OFF
D-WDR	OFF/LOW/MIDDLE/HIGH
Shading	ON/OFF
Privacy	ON(32 points)/OFF
Motion	ON/OFF
Output mode	1080p
Frame rate	25fps/30fps
CVBS	NTSC/PAL
Language	ENG/CHN
Power	DC 12V±10%
Video Output(HD SDI)	MMCX Connector
Storage Temperature	-20°C~+60°C(Humidity:0%RH-E4790%RH)
