New Arrival 1/3" Sony 1080P HD SDI Camera With CE,FCC,ROHS Certificates
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KAANSKY
Model Number:
KST-I726-SDI20
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HD SDI Camera 2.0 Megapixel CMOS With 1080P High ResolutionUS$ 50 - 160MOQ: 10 Pieces -
New Design 2 Megapixel HD-SDI Security CameraNegotiableMOQ: 1 Piece
-
New Design Sony 1080P HD-SDI Camera by Famous OEM FactoryNegotiableMOQ: 1 Piece
-
HD SDI Camera H.264 Support Mobile Phone and IE Browser HD SDI Camera by OEMNegotiableMOQ: 1 Piece
-
Two Years Warranty B19 1/3" Sony 1080P Box HD SDI CameraNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
KAANSKY
Model Number
KST-I726-SDI20
Type
Digital Camera
Style
Bullet Camera
Sensor
Other, CMOS, PANASONIC mn34041PL
Technology
Other, HD SDI
Special Features
Waterproof / Weatherproof
Specifications
1.HD SDI Camera2.Manufacturer
3.Have CE,FCC,ROHS certification
4.3-7workdays for samples
5.Two years warranty

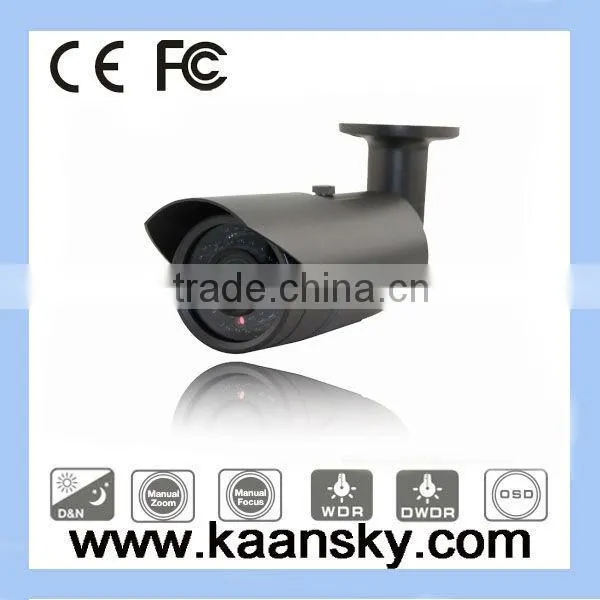

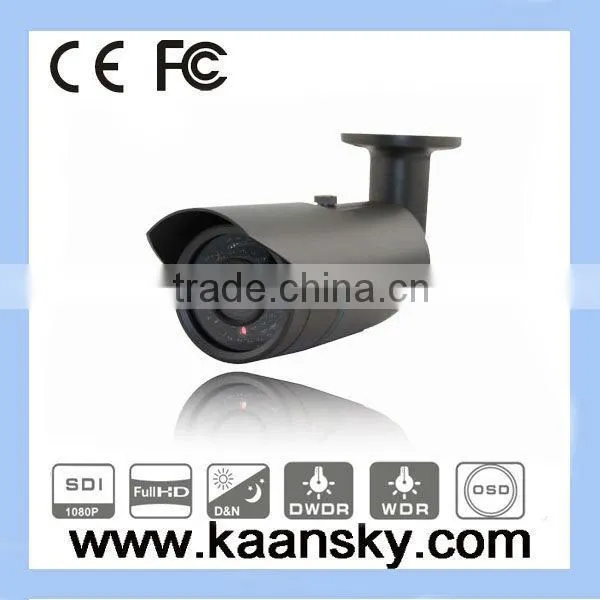

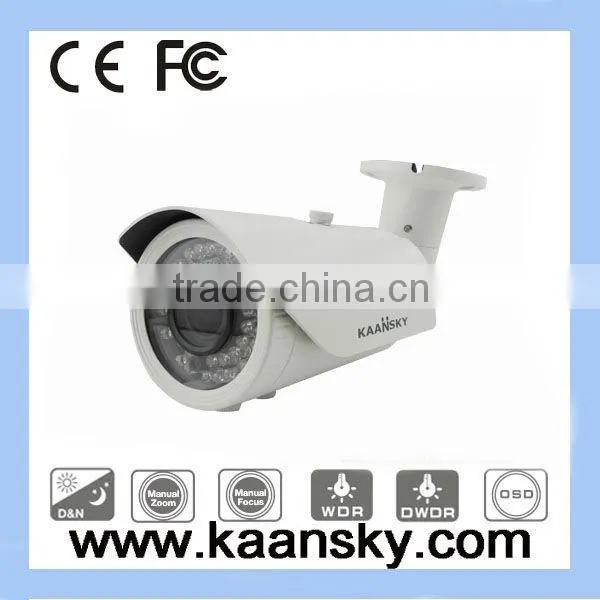

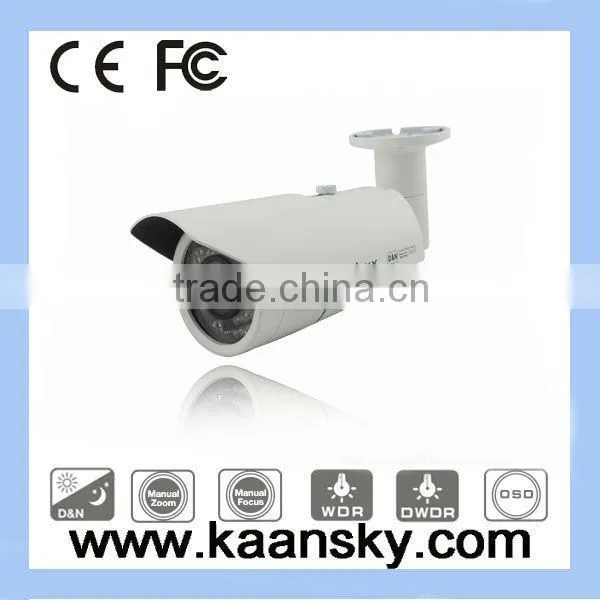

New Arrival 1/3" Sony 1080P HD SDI Camera With CE,FCC,ROHS Certificates
Features:
1. High Definition Mega Pixels HD-SDI Camera
2. 1/3" Progressive scan CMOS Sensor
3. Max.1920(H)X1080(V) 2 Megapixels
4. TDN(ICR),DSS,OSD,DWDR
5. Excellent low light sensitivity(0.05Lux,B/W)
6. 3D-DNR,BLC,PIP
7. 2 Megapixels real time with coacial cable
8. 1CH CVBS output support
9. Dual glass,no IR diffusion and fog
10. IP66,outdoor installation
11. IR Distance 30-40M
12. Adopting 42pcs/5mm IR Leds
13. Standard lens:2.8-12mm lens;(4-9mm,9-22mm optional)
Technical Specification:
| ITEM | I726-SDI2001 | |||||
| Imaging Sensor | 1/3” Panasonic CMOS(MN34041PL)/ 1/3" SONY CMOS(IMX122) | |||||
| Total Pixels | 2010(H) x 1108(V) = 2,227,080 (pixel) | |||||
| Active pixels | 1944(H) x 1092(V) = 2,122,848 (pixel) | |||||
| Scanning system | Progressive Scan | |||||
| Resolution | Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) More than 1000 TVL(1080p) |
|||||
| Min. illumination | Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux |
|||||
| S/N Ratio | More than 50dB (AGC off) | |||||
| Video Output | HD-SDI Analog : NTSC, PAL(w/o WDR) |
|||||
| LENS | DC(ALC)/Manual(ELC) | |||||
| BRIGHTNESS | 0 ~ 20 | |||||
| SHUTTER | AUTO/MANUAL(1/30(25)~1/6000) | |||||
| SENS-UP | OFF/x2/x3/x4/x5/x6/x7/x8 | |||||
| AGC | 0 ~ 20 | |||||
| BACKLIGHT | OFF/HLC/BLC/WDR | |||||
| DAY&NIGHT | AUTO/COLOR/B&W/EXT. | |||||
| WHITE BAL. | AUTO/AUTOext/PRESET/MANUAL | |||||
| DNR | OFF/LOW/MIDDLE/HIGH | |||||
| SHARPNESS | 0 ~ 10 | |||||
| MIRROR | ON/OFF | |||||
| FLIP | ON/OFF | |||||
| D-WDR | OFF/LOW/MIDDLE/HIGH | |||||
| SHADING | ON/OFF | |||||
| PRIVACY | ON(32 Points)/OFF | |||||
| MOTION | ON/OFF | |||||
| OUTPUT MODE | 720P/1080P | |||||
| FRAME RATE | 25 FPS/30 FPS | |||||
| CVBS | NTSC/PAL | |||||
| LANGUAGE | ENG/CHN | |||||
| Power | DC12V±10% | |||||
| Video Output(HD-SDI) | MMCX Connector | |||||
| Storage Temperature | -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH) | |||||
| Dimension (H x V x T) | 38mm x 38mm x 1.2mm | |||||
Certificate:
Packing:
Factory Picture:
Trade Show:
