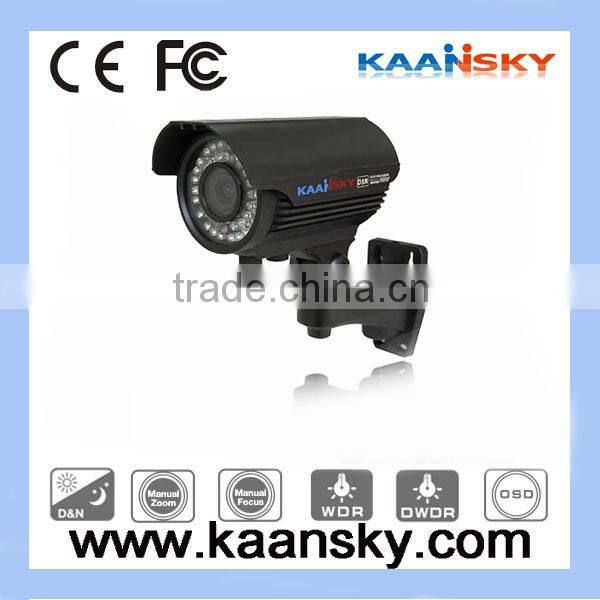

CMOS Camera DIS Cctv Camerma 600TVL 700TVL Varifocal Lens 4-9mm

Name: CMOS Camera DIS Cctv Camerma 600TVL 700TVL Varifocal Lens 4-9mm
Brand: KAANSKY
SKU: 122031541
Availability: InStock

US$ 10 - 80 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KAANSKY

Model Number:

KST-F704-C700

Shenzhen Kaansky Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KAANSKY

Model Number KST-F704-C700

Type Analog Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Features:

DIS3089+IR CUT 760H image

700TVL out resolution

Day and Night version

IR range: 35-40m;

Lens: 2.8-12mm; (4-9mm, 9-12mm optional)

Model	KST-F704-C90	KST-F704-N70	KST-F704-E65	KST-F704-EV800
Image Sensor	1/3" COLOR Super HAD DIS	1/3" COLOR NVP SONY CCD	1/3" COLOR SONY EFFIO	1/3" COLOR SONY EFFIO-V
TV System	PAL/NTSC
Image Resolution	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)
Horizontal Resolution	900TVL	700 TVL	700 TVL	800TVL
CCD+DSP	DIS1099 DIS138+FH8510+IR CUT	811ccd+NVP2090 2341ccd+NVP2090	811ccd+EFFIO4151 673ccd+EFFIO4151	663ccd+EFFIO4141 ISRAEL K700
Digital to Analog	9Bit
Minimum illuminator	0.1LUX/F1.2
S/N Ratio	≥48dB	≥58dB
AES	1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR	D-WDR	D-WDR	D-WDR	SUPPER WDR
DNR	2D-DNR	2D-DNR	3D-DNR	3D-DNR
OSD	OSD	OSD	OSD	OSD
White Balance	ATW/Manual/Auto
AGC	Auto/Manual/Off
BLC	ON/OFF
Gamma Adjusting	0.45
synchronization System	Internal Synchronization
Video Output	1.0Vp-p,75Ω
IR	42PCs F5mm
IR Distance	30-40 Meter
LENS	2.8-12mm
Voltage	DC12V (9V ~ 15V)
Operating Enviroment	~ / 10% ~ 95%RH
Size	Body: 140x80x80mm; Bracket: 115x50x85mm;
Weight	0.9kgs/0.7kgs
packing	Color box: 300x174x131mm;18pcs per caton; Dimension: 625x530x425mm, appro. 0.141cbm;
