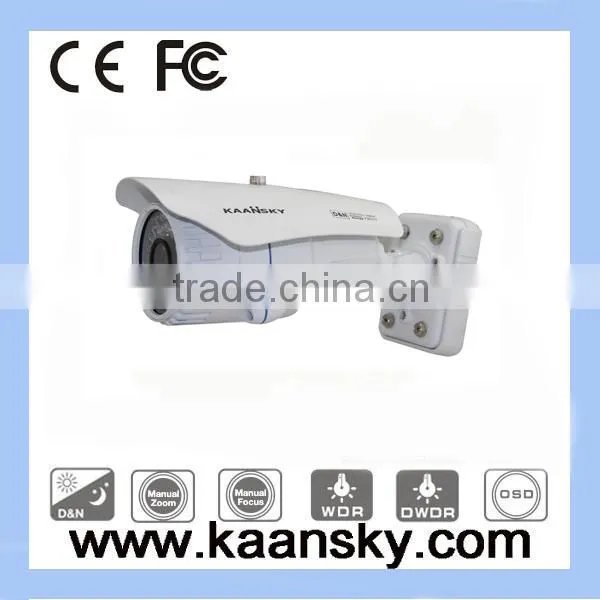

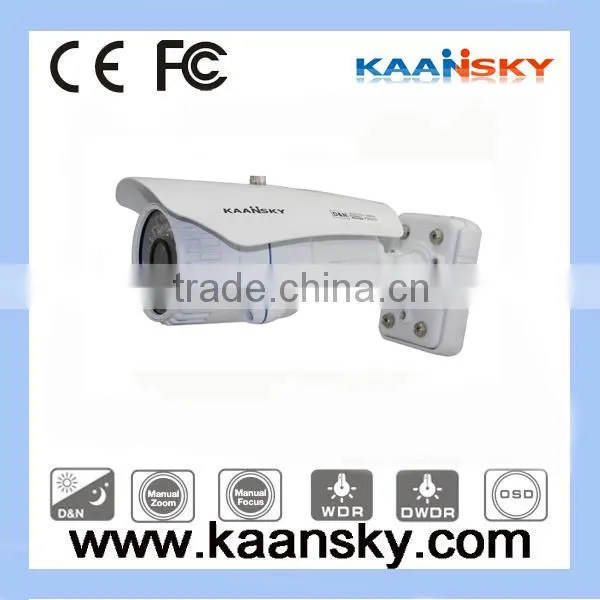

1/3" Sony CCD 420TVL, 520TVL,600TVL, Sony Effio e 700TVL Waterproof IR Camera

Name: 1/3" Sony CCD 420TVL, 520TVL,600TVL, Sony Effio e 700TVL Waterproof IR Camera
Brand: KAANSKY
SKU: 122031485

US$ 10 - 80 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KAANSKY

Model Number:

KST-F923-E520

Shenzhen Kaansky Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KAANSKY

Model Number KST-F923-E520

Type Analog Camera

Style Bullet Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Features:

Supports 960H/760H/510H CCD image Sensor; High Horizotal Resoluction of 700TVL ;

ATR(Adaptive Tone Reproductioon)

2D noise reduction; Motion detection

Privacy mask

HLC(High Light Compensation)

Preset OSD 8 Lanuages( English, Chinese, Janpanese, German, French, Portuguese; Spanish and Russian );

Exposure control for IR light

Low power consuption

Model	KST-F923-C90	KST-F923-N70	KST-F923-E65	KST-F923-EV800
Image Sensor	1/3" COLOR Super HAD DIS	1/3" COLOR NVP SONY CCD	1/3" COLOR SONY EFFIO	1/3" COLOR SONY EFFIO-V
TV System	PAL/NTSC
Image Resolution	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)	PAL:976(H)×582(V), NTSC:976(H)×494(V)
Horizontal Resolution	900TVL	700 TVL	700 TVL	800TVL
CCD+DSP	DIS1099 DIS138+FH8520+IR CUT	811ccd+EFFIO4140 673ccd+EFFIO4140	811ccd+EFFIO4140 673ccd+EFFIO4140	663ccd+EFFIO4141 ISRAEL
Digital to Analog	9Bit
Minimum illuminator	0.1LUX/F1.2
S/N Ratio	≥48dB	≥58dB
AES	1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR	D-WDR	D-WDR	D-WDR	SUPPER WDR
DNR	2D-DNR	2D-DNR	3D-DNR	3D-DNR
OSD	OSD	OSD	OSD	OSD
White Balance	ATW/Manual/Auto
AGC	Auto/Manual/Off
BLC	ON/OFF
Gamma Adjusting	0.45
synchronization System	Internal Synchronization
Video Output	1.0Vp-p,75Ω
IR	72PCs F5mm
IR Distance	50-60 Meter
LENS	2.8-12mm
Voltage	DC12V (9V ~ 15V)
Operating Enviroment	~ / 10% ~ 95%RH
Size	Body: 210x160x95mm; Bracket: 90x105x85mm;
Weight	1.9kgs/1.6kgs
packing	Color box: 340x164x144mm; 12pcs per caton; Dimension: 625x530x425mm, appro. 0.141cbm;
