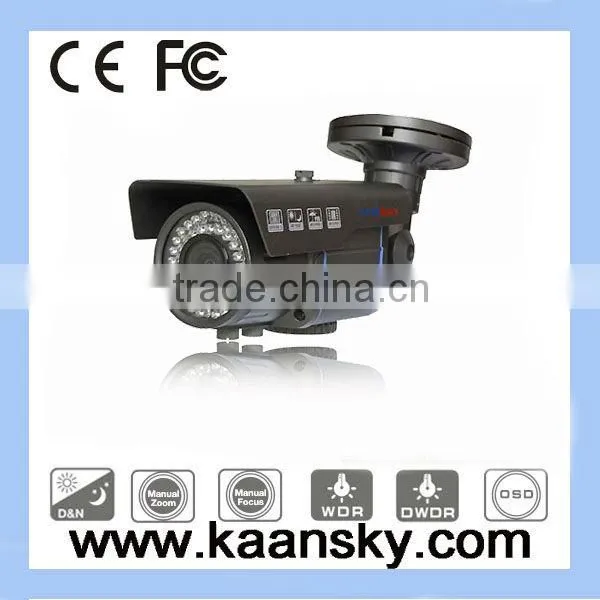

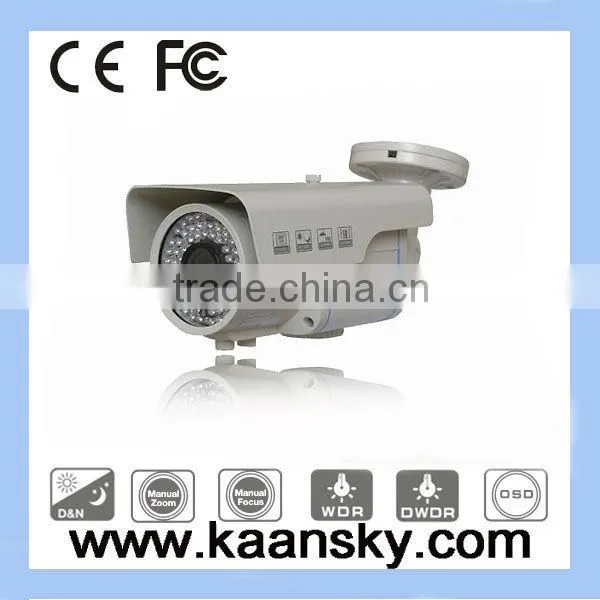

1/3" SONY Effio 700 Tvl CCTV Camera With 50 IR Distacne Focus IR

1/3" SONY Effio 700 Tvl CCTV Camera With 50 IR Distacne Focus IR thumbnail-1
1/3" SONY Effio 700 Tvl CCTV Camera With 50 IR Distacne Focus IR photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kaansky
Model Number:
KST-F908
Contact Supplier Request Quote Chat Now
Shenzhen Kaansky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Kaansky
Model Number KST-F908
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

1.Professional cctv manufactory
2. CE, FCC RoHS
3. OEM/ODM
4.IR Distance 45-50M
5.Adopting 72PCs5mm IR Leds

1/3" SONY Effio 700 tvl CCTV Camera with 50 IR distacne Focus IR

Waterproof IR Camera
IR Distance 50-60M
Adopting72PCs d=5mm IR Leds
Dual glass, no IR diffusion and fog
IP66, outdoor installation

Cable-managed Bracket: to prevent external force of destruction such as cutting
Focus lens: 4-9mm lens;(2.8-12mm, 9-22mm optional)



1/3" SONY Effio 700 tvl CCTV Camera with 50 IR distacne Focus IR1/3" SONY Effio 700 tvl CCTV Camera with 50 IR distacne Focus IR





Model KST-F908-S342 KST-F908-N48 KST-F908-N60 KST-F908-E52 KST-F908-E65
Image Sensor 1/3" COLOR
 SONY CCD		 1/3" COLOR SONY
 Super HAD CCD		 1/3" COLOR SONY
 Super HAD CCD		 1/3" COLOR SONY
EFFIO		 1/3" COLOR SONY
 EFFIO
TV System PAL/NTSC
Image Resolution PAL:500(H)×582(V),
 NTSC:510(H)×492(V)		 PAL:752(H)×582(V),
 NTSC:768(H)×494(V)		 PAL:752(H)×582(V),
 NTSC:768(H)×494(V)		 PAL:752(H)×582(V),
 NTSC:768(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)
Horizontal Resolution 420TVL 480TVL 600TVL 520TVL 650TVL
Digital to Analog 9Bit 10Bit 10Bit 9Bit 9Bit
Minimum illuminator 0.1LUX/F1.2 0.1LUX/F1.2 0.1LUX/F1.2 0.01LUX/F1.2 0.01LUX/F1.2
S/N Ratio >48dB >58dB
AES 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)
WDR — D-WDR D-WDR D-WDR D-WDR
DNR — 3D-DNR 3D-DNR 3D-DNR 3D-DNR
OSD — OSD OSD OSD OSD
White Balance ATW ATW/Manual/Auto
AGC AUTO Auto/Manual/Off
BLC ON ON/OFF
Gamma Adjusting 0.45
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
IR  D5*72
IR Distance 50 Meter
LENS 4-9mm     (2.8-12mm  9-22mm optional)
Voltage DC12V (9V ~ 15V)
Operating Enviroment ~ / 10% ~ 95%RH
Demension 345×120×120mm / BOX:280×120×120mm
Weight 1.25kg
packing 6pcs/ctn  CBM: 60×40×32.5cm

1/3" SONY Effio 700 tvl CCTV Camera with 50 IR distacne Focus IR
