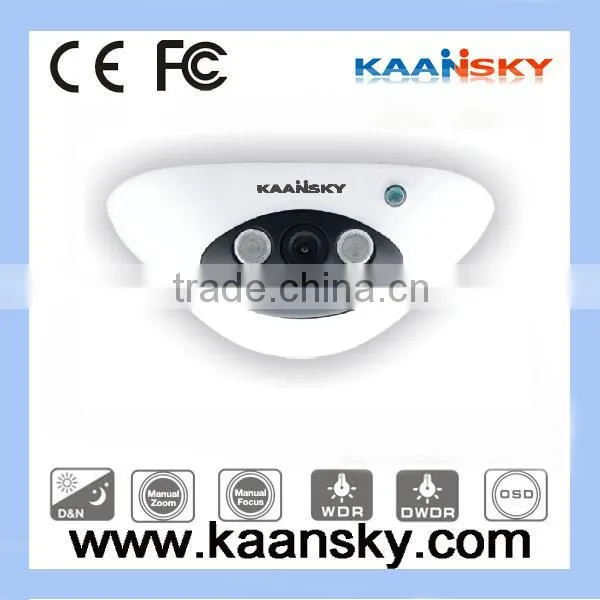

2014 New Design Mini HLED Camera, Dot Matrix Camera, IR LED Camera

2014 New Design Mini HLED Camera, Dot Matrix Camera, IR LED Camera thumbnail-1
2014 New Design Mini HLED Camera, Dot Matrix Camera, IR LED Camera photo-1
US$ 10 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KAANSKY
Model Number:
KST-S1
Contact Supplier Request Quote Chat Now
Shenzhen Kaansky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KAANSKY
Model Number KST-S1
Type Digital Camera
Style Dome Camera
Sensor Other, CMOS, 1099N
Technology Infrared
Special Features Waterproof / Weatherproof

Main Features:

IR Distance 20M
Adopting 2HLED Leds
Standard lens: 4mm lens;(2.8mm, 3.6mm optional)
Dual glass, no IR diffusion and fog
Cable-managed Bracket: to prevent external force of destruction such as cutting

2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera



2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera

Model KST-HI45-C90 KST-HI45-N70 KST-HI45-E65 KST-HI45-EV800
Image Sensor 1/3" COLOR
Super HAD DIS		 1/3" COLOR
NVP SONY CCD		 1/3" COLOR SONY
 EFFIO		 1/3" COLOR SONY
EFFIO-V
TV System PAL/NTSC
Image Resolution PAL:976(H)×582(V),
 NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)
Horizontal Resolution 900TVL 700 TVL 700 TVL 800TVL
CCD+DSP DIS1099
DIS138+FH8510+IR CUT		 811ccd+NVP2090  2341ccd+NVP2090 811ccd+EFFIO4151 673ccd+EFFIO4151 663ccd+EFFIO4141
ISRAEL K700
Digital to Analog 9Bit
Minimum illuminator 0.1LUX/F1.2
S/N Ratio ≥48dB ≥58dB
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR D-WDR D-WDR D-WDR SUPPER WDR
DNR 2D-DNR 2D-DNR 3D-DNR 3D-DNR
OSD OSD OSD OSD OSD
White Balance ATW/Manual/Auto
AGC Auto/Manual/Off
BLC ON/OFF
Gamma Adjusting 0.45
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
IR  2HLED
IR Distance 20 Meter
LENS 4mm
Voltage DC12V (9V ~ 15V)
Operating Enviroment ~ / 10% ~ 95%RH
Size Body: 138x90x80mm; Bracket: 128x65x95mm
Weight 0.8kgs/0.7kgs
packing Color box: 195x123x117mm; 25pcs per caton; Dimension: 650x400x325mm, appro. 0.0845cbm;



2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera



2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera



2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera



Why choose KAANSKY:

Professional manufacturer

Shenzhen Kaansky Technology Co.,Ltd is a professional manufacturer of CCTV camera.

The factory address is 2nd Floor,Block A,Yuandong Industrial Zone,Xuegang South Road,Bantian,Buji,Shenzhen,China.

Found in the year of 2006, which has more than 8 years ODEM and OEM experience.

Certificates:

The factory runs strictly according to ISO9001 and most products have got CE, FCC, CCC, ROHS, and IP66.

And most of the staff have more than 5 years operation experience.

Great factory is the essurance of high quality.

Warranty
We provide 2 years warranty for all of our products.

2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera

2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera



 2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera

2014 New Design Mini HLED Camera, Dot matrix camera, IR LED Camera
