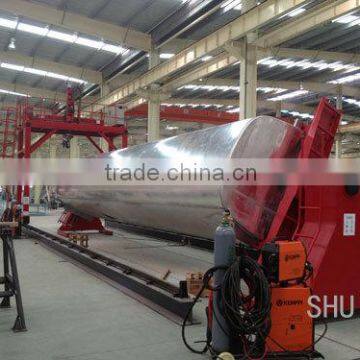

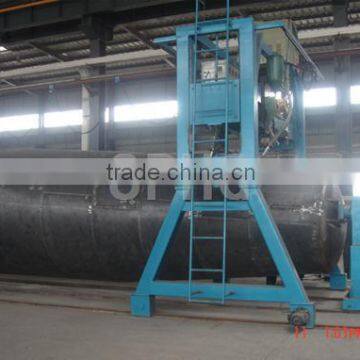

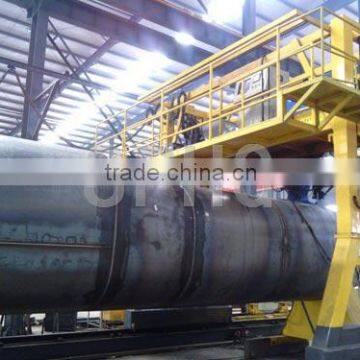

Automatic Girth Welding Machine for Irregular Shaped Tank
Specifications
Quality assuranceMaximum Diameter |
3200mm (can be customized) |
|
Minimum Diameter |
1200mm |
|
Gantry |
Gauge |
3600mm |
Rail Length |
16000mm (can be customized) |
|
Rotating Device |
Gauge |
1200mm |
Rail Length |
16000mm |
|
Welding Speed |
50-600mm/min |
|
Gantry Longitudinal Returning Speed |
2800mm/min |
|
Welding position |
flat position welding |
|
Welding Wire Diameter |
1.2-1.6mm |
|
Welding Manner |
Submerged Arc Welding, or MIG Welding |
|
Gantry Drive |
AC Frequency Converter, Stepless Speed Regulation, Double Sides Drive |
|
Rotating Device Drive |
The AC Frequency Converter, the Stepless Speed Regulation |
|
Cable Conveying |
The Tackle Type |
|
Flux Reclaimer |
The Pneumatic Automatic |
|
Welding Profile Modeling |
Magnetic Automatic Profile Modeling |
|
Welding Width |
5-12mm |
|
Welding Seam Monitoring Mode |
The Guide Track |
|
Power Supply |
AC 380V 50HZ 3-phase 4-wire |
|
Main Machine Power Supply |
31KW |
|
