Specifications
vandalproof camera-OEM is welcome
-CE FCC ISO9001 RoHS can be approved
-Need further informationaa pls contact us

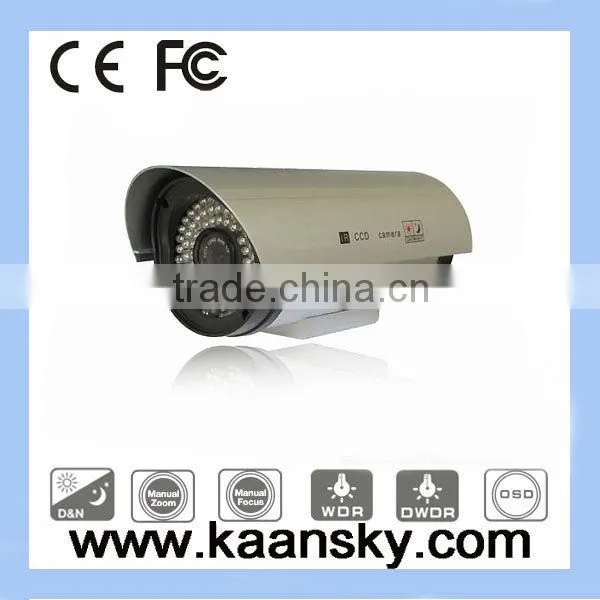

new design outdoor vandalrproof camera with aluminous case
Abotu us:
Shenzhen KAANSKY Technology Co., Ltd. is a high-tech enterprise integrating technical consultation, product development, production and sales. With 6 years experience in manufacturing cctv camera, more than 100 skilled workers can produce 30,000 high-quality CCTV camera monthly for OEM orders. supported by the strong R&D team. Our products have honored certificates of CE, FCC, CCC, ROHS, and IP66.
Our main is "Common make Ucommon" !
OEM/ODM Service:
Our company has long term and extensive experience in OEM/ODM service; we sincerely hope to make the cooperation with any company, enterprise and individual with OEM/ODM service. We can assist you from the sample to the final product as follow.
Features:
1.IR Distance 45-50M
2.Adopting 72PCs f5mm IR Leds
3.Standard lens: 4-9mm manual VF lens;(2.8mm-12mm / 9mm-22mm optional)
4.Dual glass, no IR diffusion and fog
5.IP66, outdoor installation
6.Cable-managed Bracket: to prevent external force of destruction such as cutting
| Model | KST-C03-P442 | KST-C03-S342 | KST-C03-N604 | KST-C03-E520 | KST-C03-E650 |
| Image Sensor | 1/4" COLOR SHARP CCD |
1/3" COLOR Super HAD CCD |
1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY EFFIO |
1/3" COLOR SONY EFFIO |
| TV System | PAL/NTSC | ||||
| Image Resolution | PAL:500(H)×582(V), NTSC:510(H)×492(V) |
PAL:500(H)×582(V), NTSC:510(H)×492(V) |
PAL:752(H)×582(V), NTSC:768(H)×494(V) |
PAL:752(H)×582(V), NTSC:768(H)×494(V) |
PAL:976(H)×582(V), NTSC:976(H)×494(V) |
| Horizontal Resolution | 420TVL | 420TVL | 600TVL | 520TVL | 650TVL |
| Digital to Analog | 9Bit | 10Bit | 9Bit | 9Bit | |
| Minimum illuminator | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.01LUX/F1.2 | 0.01LUX/F1.2 |
| S/N Ratio | >48dB | >58dB | |||
| AES | 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) | ||||
| WDR | — | — | D-WDR | D-WDR | D-WDR |
| DNR | — | — | 3D-DNR | 3D-DNR | 3D-DNR |
| OSD | — | — | OSD | OSD | OSD |
| White Balance | ATW | ATW/Manual/Auto | |||
| AGC | AUTO | Auto/Manual/Off | |||
| BLC | ON | ON/OFF | |||
| Gamma Adjusting | 0.45 | ||||
| synchronization System | Internal Synchronization | ||||
| Video Output | 1.0Vp-p,75Ω | ||||
| IR | f5*77 | ||||
| IR Distance | 40-50 Meter | ||||
| LENS | 6mm (8mm ,12mm optional) | ||||
| Voltage | DC12V (9V ~ 15V) | ||||
| Operating Enviroment | ~ / 10% ~ 95%RH | ||||
| Demension | 260x110x108mm / BOX:280×135×120mm | ||||
| Weight | 1kg | ||||
| packing | 15pcs/ctn CBM: 60×40×32.5cm | ||||
attend the security fair:
More informations you will be interested:
Q:How can we get samples from you?
A:Clients select the interested items, including product name and quantity
B: We need your address for checking air shipping cost.
C: We make Sample PI for you
D: You make the transfer
E: Samples will be sent out once we get the transfer, and we'll provide the UPS Tracking number.
Q: How many days do we need to wait for the samples?
A: If for our brand products, we can ship them out with 5 working days. If for OEM samples, 1 week is required to prepare samples.
Q: What’s the MOQ?
A: Depends on what products that you need, if go with our brands, the MOQ is 100.
B: As for OEM, it depends on the carton,the label,the logo. the MOQ is 5,00pcs.
Q: Can we be your distributor? What’s the requirement of being distributors?
A: Welcome to being distributor, we’d like to invite partners to be our distributors and enjoy our brand reputation. We have a small request, pls send us email, we’ll call you or email you right away.
Q: What’s the delivery date?
A: If for our brand products, we’ll ship the goods within 3-5 working days. If for OEM products, it’s about 10-15days, depends on the quality packaging.
Q: What’s your payment terms?
A: For those lower than USD15,000/order, need to pay 100% once confirming the order. For above amount, 40% deposit, and the balance before delivery date. And we accept LC also.
Q: How can we pay you?
A: We accept Western Union, TT and LC, you can select which type is most suitable for you.
