Help Center1/3" COLOR Super HAD CCD 540-700tvl TVL Standard Safe Box Camera
Related Products
-
700TVL WDR Standard Safe Box Camera for Surveillance SystemUS$ 30 - 90MOQ: 50 Pieces -
420tvl-700tvl Sony Effio Cctv Camera Box CameraNegotiableMOQ: 10 Pieces
-
B23 1MP H.264 Box IP Camera Support IE and Mobile BrowserNegotiableMOQ: 1 Piece
-
B15 700TVL 1/3" COLOR SONY Super HAD CCD WDR Box Camera With OSDNegotiableMOQ: 10 Pieces
-
800tvl Sony EFFIO-V Super WDR Box CameraNegotiableMOQ: 10 Pieces
Specifications
box camera1.IR Distance 30-40M
2.welcome EOM order
3.Fully CE&ROHS Approved

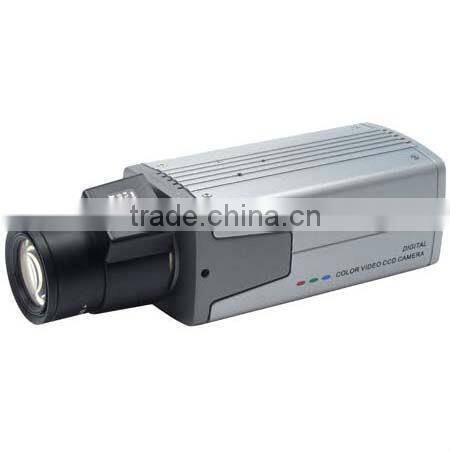

1/3" COLOR Super HAD CCD 540-700tvl TVL Standard safe box camera
About us:
Shenzhen KAANSKY Technology Co., Ltd. is a high-tech enterprise integrating technical consultation, product development, production and sales. With 6 years experience in manufacturing cctv camera, more than 100 skilled workers can produce 30,000 high-quality CCTV camera monthly for OEM orders. supported by the strong R&D team. Our products have honored certificates of CE, FCC, CCC, ROHS, and IP66.
Our main is "Common make Uncommon" !
OEM/ODM Service:
Our company has long term and extensive experience in OEM/ODM service; we sincerely hope to make the cooperation with any company, enterprise and individual with OEM/ODM service. We can assist you from the sample to the final product as follow.
Features:
1.SONY / SHARP CCD Optional
2.420TVL-700TVL Horizontal Resolution
3.AES electronic shutter / DC auto-iris function
4.BLC Backlight compensation, AGC Automatic Gain Control
| Model | KST-B03-P442 | KST-B03-S342 | KST-B03-S348 | KST-B03-S354 |
| Image Sensor | 1/4" COLOR SHARP CCD |
1/3" COLOR Super HAD CCD |
1/3" COLOR SONY Super HADCCD |
1/3" COLOR SONY EFFIO |
| TV System | PAL/NTSC | |||
| Image Resolution | PAL:500(H)×582(V), NTSC:510(H)×492(V) |
PAL:500(H)×582(V), NTSC:510(H)×492(V) |
PAL:752(H)×582(V), NTSC:768(H)×494(V) |
PAL:752(H)×582(V), NTSC:768(H)×494(V) |
| Horizontal Resolution | 420TVL | 420TVL | 480TVL | 520TVL |
| Digital to Analog | 9Bit | |||
| Minimum illuminator | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.01LUX/F1.2 |
| S/N Ratio | >48dB | |||
| AES | 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) | |||
| WDR | — | — | — | — |
| DNR | — | — | — | — |
| AES | Manual | |||
| White Balance | ATW/Manual/Auto | |||
| AGC | Auto/Manual/Off | |||
| BLC | ON/OFF | |||
| Gamma Adjusting | 0.45 | |||
| synchronization System | ||||
| Video Output | 1.0Vp-p,75Ω | |||
| IR | — | |||
| IR Distance | — | |||
| LENS | OPTIONAL | |||
| Voltage | DC12V (9V ~ 15V) | |||
| Operating Enviroment | ~ / 10% ~ 95%RH | |||
| Demension | 140×60×61mm / BOX:167×93×115mm | |||
| Weight | 0.55kg | |||
| packing | 36pcs/ctn CBM: 60×40×32.5cm | |||
More information you will interested :
Q:How can we get samples from you?
A:Clients select the interested items, including product name and quantity
B: We need your address for checking air shipping cost.
C: We make Sample PI for you
D: You make the transfer
E: Samples will be sent out once we get the transfer, and we'll provide the UPS Tracking number.
Q: How many days do we need to wait for the samples?
A: If for our brand products, we can ship them out with 5 working days. If for OEM samples, 1 week is required to prepare samples.
Q: What’s the MOQ?
A: Depends on what products that you need, if go with our brands, the MOQ is 100.
B: As for OEM, it depends on the carton,the label,the logo. the MOQ is 5,00pcs.
Q: Can we be your distributor? What’s the requirement of being distributors?
A: Welcome to being distributor, we’d like to invite partners to be our distributors and enjoy our brand reputation. We have a small request, pls send us email, we’ll call you or email you right away.
Q: What’s the delivery date?
A: If for our brand products, we’ll ship the goods within 3-5 working days. If for OEM products, it’s about 10-15days, depends on the quality packaging.
Q: What’s your payment terms?
A: For those lower than USD15,000/order, need to pay 100% once confirming the order. For above amount, 40% deposit, and the balance before delivery date. And we accept LC also.
Q: How can we pay you?
A: We accept Western Union, TT and LC, you can select which type is most suitable for you.
