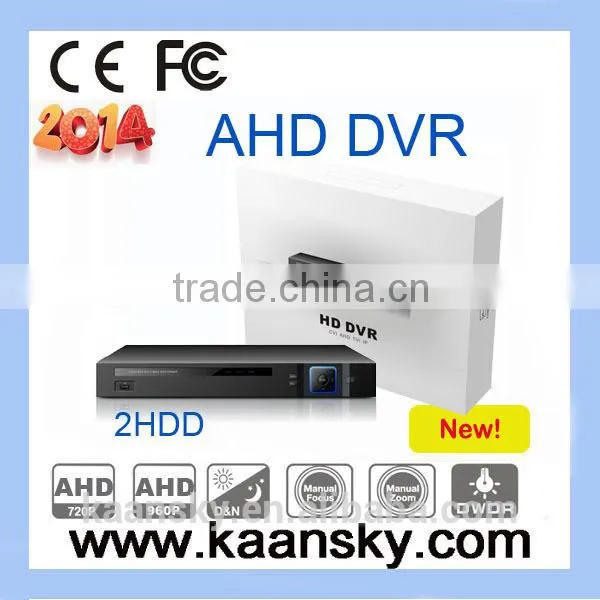

4CH 720P H.264 AHD DVR AHD Megapixel HD Standalone DVR

Name: 4CH 720P H.264 AHD DVR AHD Megapixel HD Standalone DVR
Brand: KAANSKY
SKU: 122028303
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KAANSKY

Model Number:

KST-8304

Shenzhen Kaansky Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KAANSKY

Model Number KST-8304

Specifications

fessional manufacturer in Shenzhen.
2.OEM,ODM
3.CE,FCC,CCC,RoHS

Features:

1.The latest H.264 compression

2.User friendly Graphic interface

3.with 4/8CH 720P resolution recording

4.Remote full access via IE&client software

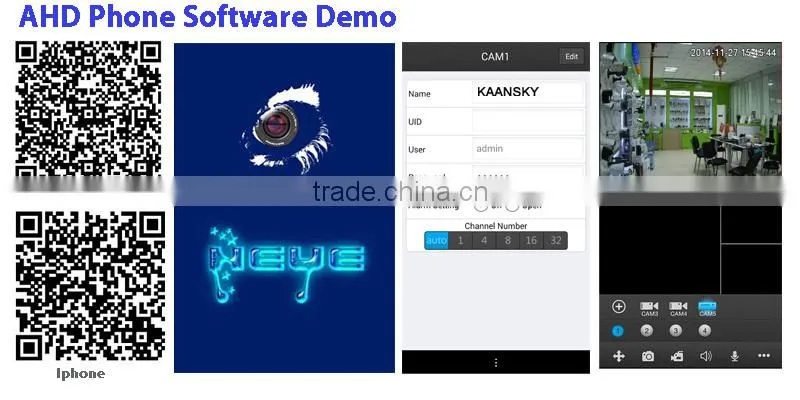

5.Mobile viewing from smart phone and pad

6.Unique files system for security

7.E-sata connector for fast backup,HDMI output for high definition images

Model		KST-8304	KST-8308	KST-8316
OS	Operating system	Embedded Linux
Video	Video Compression	H.264
	Recording resolution	PAL:1280720P /960H576 ;NTSC:1280720P /960H480
	Frame rate	PAL:1~25fps; NTSC: 1~30fps
	Multi-Mode input	4ch 720P;2ch 720P+2ch 960H;4ch 960H	8ch 720P;4ch 720P+4ch 960H;8ch 960H	16ch 720P;8ch 720P+8ch 960H;16ch 960H
Audio	Audio encode standard	G.711
	Audio bite rate	64Kbps
Video/Audio ports	Video input	4ch,BNC	8ch, BNC	16ch, BNC
	Video output	1ch BNC, 1ch VGA, 1ch HDMI output	1ch VGA, 1ch HDMI output	1ch VGA, 1ch HDMI output
	Audio input/output	4ch audio input,1ch output		2ch audio input,1ch output
Recording	Record mode	Manual>alarm>motion detection>timing
	Playback	4ch playback at same time
	Backup mode	Network backup, USB Hard Disk
Network	IE	Built-in WEB Server
	Mobile surveillance	Support iPhone, Blackberry & Android Symbian mobile phone remote view
	P2P	support
Communication	Ethernet	RJ45 10M/100M adaptive Ethernet network port
	PTZ control	1RS485; Support PTZ Controls
	USB	2xUSB ports
HDD	HDD port/Capacity	2SATA ports (each max supports 4T)
Others	Power Supply	DC12V
	Power Consumption	<15W(without HDD)
	Working enviroment	-10℃-+55℃/10%~90%RH
	Dimensions	375x270x45mm
