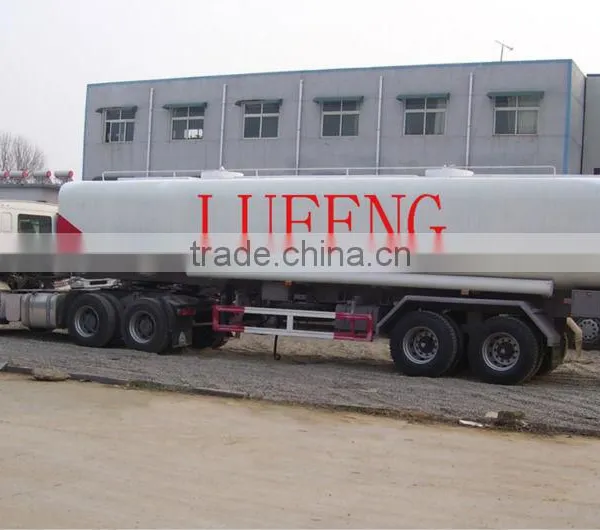

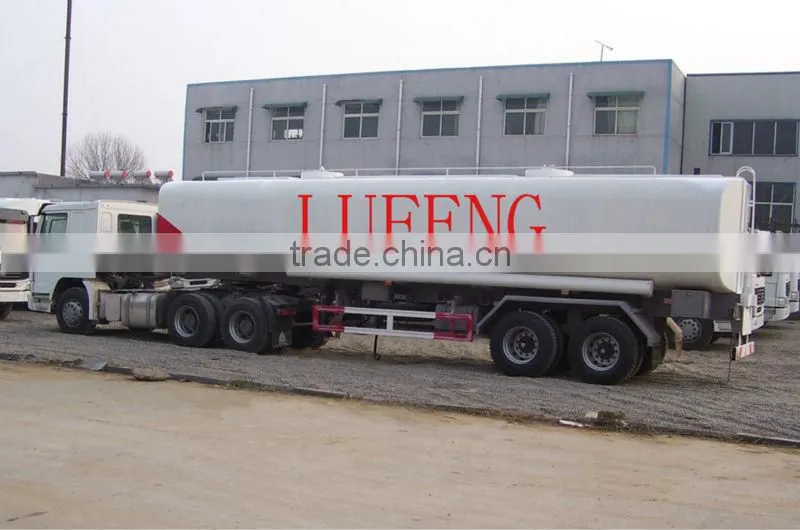

Dual-axle Fuel Tank Semi-trailer ST9340GYY

Name: Dual-axle Fuel Tank Semi-trailer ST9340GYY
Brand: LUFENG
SKU: 122025997

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Size:

10,000mm*2,500mm*3,680mm

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Size 10,000mm*2,500mm*3,680mm

Max Payload 30000

Place of Origin Shandong, China

Brand Name LUFENG

Model Number ST9340GYY

Specifications

ST9340GYY Dual-axle Fuel Tank Semi-trailer
1.payload:30T
2.tank volume:36cbm
3Tank Material:Steel material Q235,Thickness 6mm

Dual-axle Fuel Tank Semi-trailer ST9340GYY

GENERAL
Overall Dimension				10,000mm2,500mm3,680mm(LWH)
King Pin Setting				1,000mm		Pay Load	30,000kg	Dead Weight	10,550kg
RUNNING GEAR
Suspension	Under mount dual-axle suspension with equalizer, 11-leaf spring
Hub	Cast steel 10 studs, oil seals
Rim & Tire	Rim: steel disc, 8.0-20; Tire: 11.00R20, 8units
Axles	CNHTC axle, 13 tons load capacity
Brakes	Dual lines pneumatic brake system; Emergency relay valve, made in China; 30/30 chambers, air-actuated
TANK
Tank Volume		36cbm
Tank Material		Steel material Q235, Thickness 6mm
Structure		Containing 7 anti-surge baffles, Two lockable manholes 500mm in diameter.
Other Fittings		A steel ladder is equipped at the rear of the tank, 2 fire extinguishers, 2 pcs of hose, diameter 100mm of 6 meters.
UNDERFRAME
Main Beam			I shape,Mild Alloy (16Mn) by Automatic submerged arc welding
King pin			Welded kingpin, size 50# (2'') or 90#(3.5’’)
Landing Gear			Both sides manual operation type with sand shoe, made in China
Appendix			1 tool box, length 1.5m
ELECTRICAL & PAINT
Lights & Reflectors					Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring					24V, 6 lines
Air/Elec. Connector					ISO standard air connector
					24V 7 pin plug socket
Color					Upon request
