ST9391P Three Axles Platform Semi Trailer,semi-trailer

Name: ST9391P Three Axles Platform Semi Trailer,semi-trailer
Brand: LUFENG
SKU: 122025667
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, CCC

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, CCC

Size 13000*2500*2920

Max Payload 45000

Place of Origin Shandong, China

Brand Name LUFENG

Model Number ST9391P

Specifications

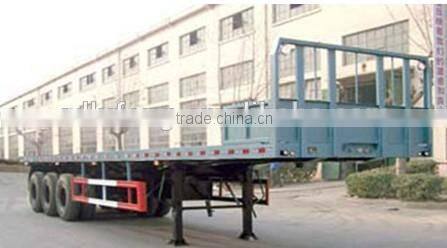

ST9391P three axles Platform semi trailer,semi-trailer
side wall height:500,600mm
side wall length:1000,1500,2000mm

ST9391P three axles Platform semi trailer,

General
Overall Dimension	13000mm3000mm2920mm
Tare Weight	8000kg	Pay Load	42 ton
King Pin Setting	1460mm	Rear Overhang	2130mm
Wheel base	6800mm+1305mm+1305mm	Loading Surface Height	1150mm
Track	1840mm
Side wall	length:1000,1500,2000mm;Height:500,600mm
Running Gear
Suspension	Tri-axle 8-pcs leaf spring suspension with equalizer beam
Tires	8.25R20, 12units
Axles	CNHTC axle, 13T capacity
Brakes	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam	Mild Alloy Q235, 16# channel beam
King Pin	Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 30Ton
Flatbed Floor	Stright panel sheet, thickness 3 mm
Rear Ladders	Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Color upon request
