Home > Transportation > Trailer > Truck Trailer > Three Axles 50 Ton Van Box Semi-trailer ST9406X With Competitive Price

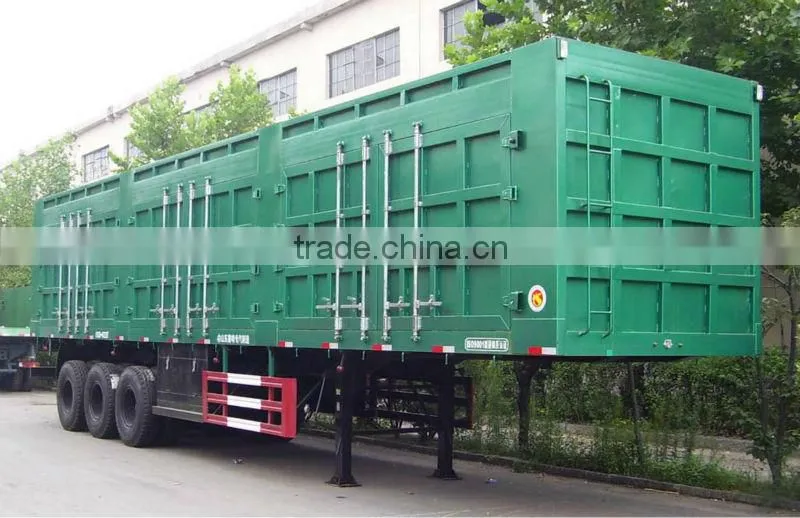

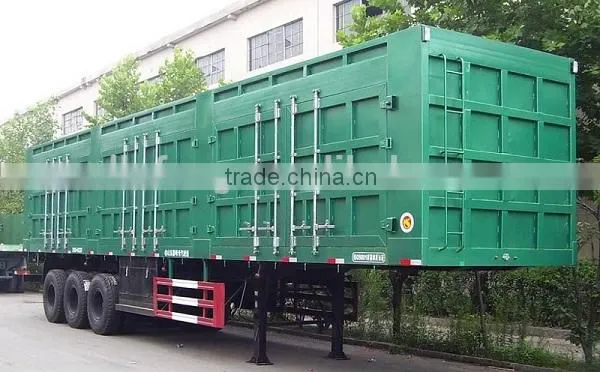

Three Axles 50 Ton Van Box Semi-trailer ST9406X With Competitive Price

Name: Three Axles 50 Ton Van Box Semi-trailer ST9406X With Competitive Price
Brand: LUFENG
SKU: 122025233

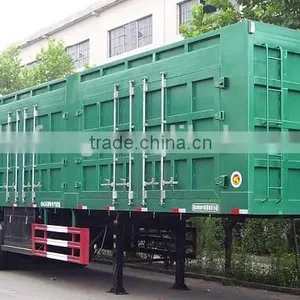

Three Axles 50 Ton Van Box Semi-trailer ST9406X With Competitive Price thumbnail-1

Three Axles 50 Ton Van Box Semi-trailer ST9406X With Competitive Price photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Aluminum / Alloy

Size:

13000mm*2550mm*3830mm

Contact Supplier Request Quote Chat Now

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Aluminum / Alloy

Size 13000mm*2550mm*3830mm

Max Payload 38ton

Place of Origin Shandong, China

Brand Name LUFENG

Model Number ST9406X

Specifications

Van Semi-trailer ST9406X
1.payload:40T,50T
2.Tires:11.00R20,12units
3.Axles:three axle,load capacity 13T,15T
4.track:1840mm

Van Semi-trailer ST9406X

Main Description
Overall Dimension	13000mm2550mm3830mm
Box Body Dimension	12810mm2340mm2200mm
Tare Weight	8500kg	Pay Load	40ton, 50ton
King Pin Setting	1460mm	Rear Overhang	2130mm
Track	1840mm	Loading surface height	1630mm
Wheel base	6800mm+1305mm+1305mm
Box Body	7 double-doors, Floor steel sheet 2.5mm, side wall steel sheet 1.2mm
Running Gear
Suspension	Tri-axle mechanical suspension with 11-pcs leaf spring
Rims & Tires	Rim 8.0-20; Tire 11.00R20, 12units
Axles	CNHTC axle, load capacity 13T, 15T
Brakes	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam	Mild Alloy Q235
King Pin	Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 30Ton
Appendix	1 tool box, length 1.5m
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request

SHANDONG LUFENG SPECIAL-PURPOSE VEHICLE CO.,LTD

There are more than 100 product varieties of 14 series: 9 - 60t various types of semi trailers of fences, container car, flat semitrailer, goose-neck semitrailer of low loading face, 1.5 t-50t carriage transport vechicle, 1.5 t-20t road wrecker, 4.5 t-40t auto-unloading vehicle and semitrailer, 11-50 m3 transport vehicle of particle materials, concrete agitating transport vehicle, compressed dust cart, tank car and virescence insufflation thawing car etc.
