Home > Products > Workshop Fitting Welding Machine > RGH315-90 Workshop Fitting pe Plastic Angle Fusion Machine
RGH315-90 Workshop Fitting pe Plastic Angle Fusion Machine
- SHANGHAI
- T/T
You May Like
-
RGH630 PE Plastic Pipe Fitting Welding Machine for Inch Pipe
-
800mm HDPE Fittings Fabrication Butt Welding Machine
-
RGH800 Workshop Fitting Butt Welding Machine PE PP
-
RGH315/90 Fitting Fabrication Welding Machine for Plastic
-
630mm-1200mm Workshop Angle Fitting Fusion Welding Machine
-
RGH1200 Angle Butt Fusion Machine for HDPE Pipes And Fittings
Product Details
Place of Origin | Jiangsu, China | Brand Name | YUDA | |
Model Number | RGH315 | Voltage | 380V | |
Power | 7.5KW | Frequency | 50HZ | |
Dimensions | 2.3CBM | Weight | 800KG | |
Usage | fabricate elbow, tee,cross fittings | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. welding range: 90mm~315mm2. application: water, gas, irrigation, construstion, drainage, fire figthing, Sewage

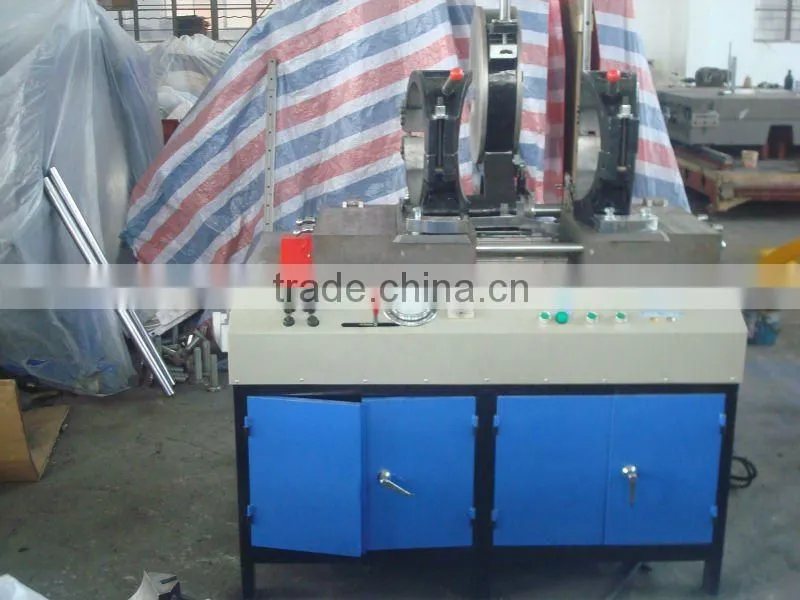

RGH315-90 Workshop fitting pe plastic angle fusion machine
Multiangle fitting welding machine, HDPE fittiing welding machine, PE pipe fitting machine, elbow fitting welding
machine, tee fitting welding machine, Fitting welding machine, Wedling machine for PPR, PE pipe and fitting.
workshop welding machine for fitting production and constructors of installation plants, HDPE pipe fitting weldingmachine
, Plastic pipe workshop fitting welding machine, angle butt welding machine, multiangle workshop fitting welding machine,
Plastic pipe workshop fitting welding machine to make elbow, tee , cross fittings RGH , Workshop Fitting PE plastic angle fusion welding machine, HDPE pipe fitting welding machine.
Application:
Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.
Features:
*Applied to fabricate PE,PP,PVDF elbow,tee,cross fittings in workshop.Also used to lengthen the injection moulded fitting and make the integrated fittings.
*Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.
*Removable PTFE coated heating plate.
*Electric planing tool with safety limit swith enable to start it only when it is locked in the operation position.
*Low starting pressure and high reliable seal structure.
*Separate two-channel timer records times in soaking and cooling phases.
*Digital pressure meter enables to control pressure accurately.
*Linear guide ways are equipped with heating plate, planing tool and dragging plate
*Products comply with 98/37/EC and 73/23/EEC standards.

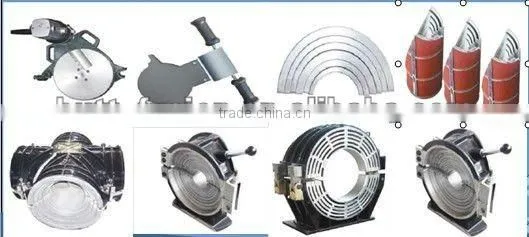

Optional parts:
*Special clamps for welding flange stub.
*Special clamps for short spigot fittings.

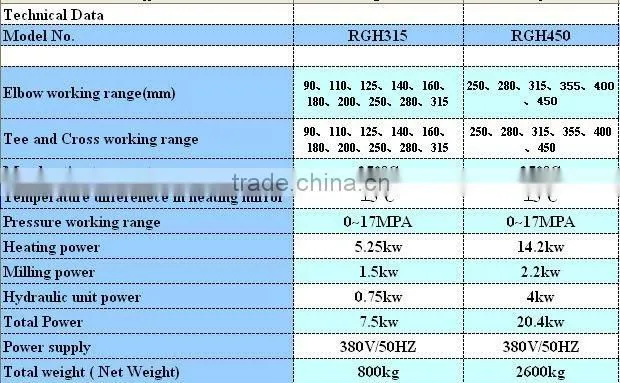

RGH315-90 Workshop fitting pe plastic angle fusion machine
Welding ranges of tee and cross | 90mm — 110mm—125mm-140mm-160mm-180mm-200mm-225mm -250mm-280mm-315mm |
Ranges of elbow | 90mm — 110mm—125mm-140mm-160mm-180mm-200mm-225mm-250mm -280mm-315mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~380V ±10%,50Hz |
Environment temperature | -10° ~ 45° |
Total power | planing tool motor: 1.5 kW, heating plate: 5.25 kW, hydraulic unit motor: 0.75 kW |
components | basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box |
heating plate characteristics | PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7° |
Other devices | Electronic count-down timers for heating and cooling time. |
