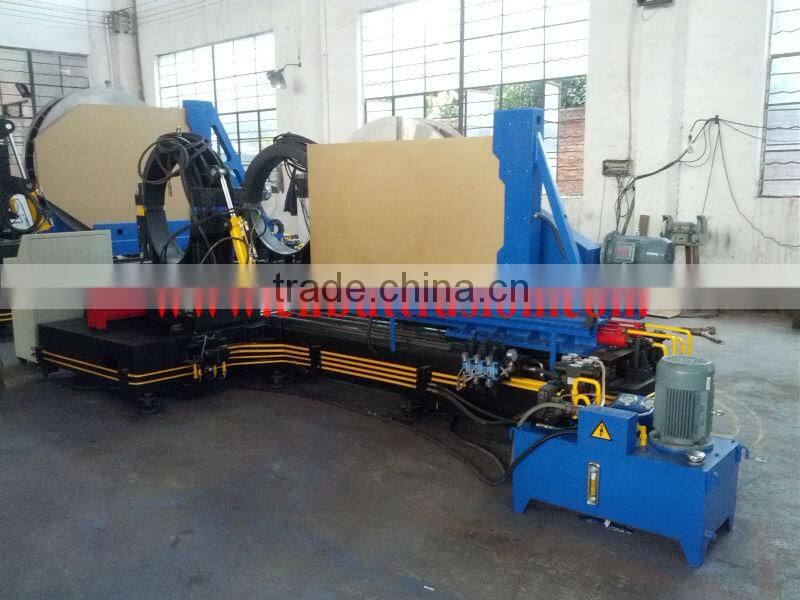

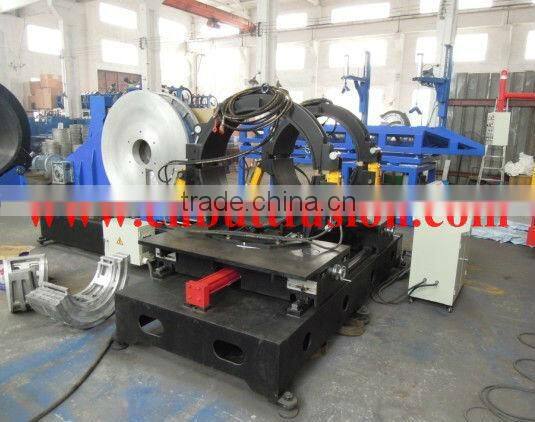

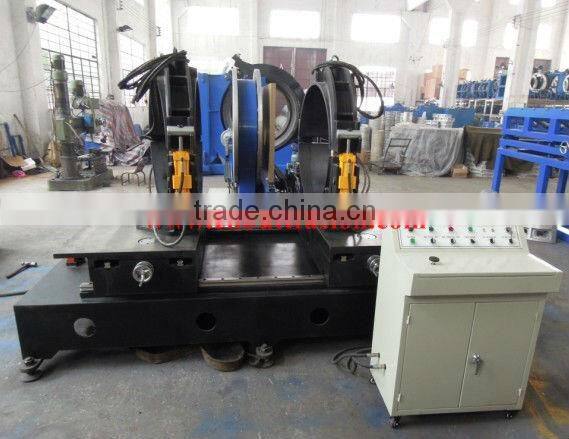

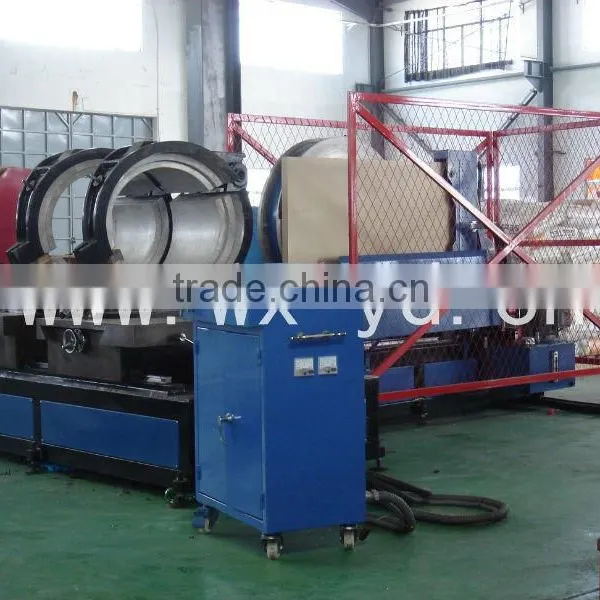

RGH800 Workshop Fitting Butt Fusion Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	YUDA
Model Number	RGH800	Voltage	380V
Power	47KW	Frequency	50HZ
Dimensions	18CBM	Weight	4500KGS
Usage	fabricate elbow, tee ,cross and y shape	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. welding range: 500mm~800mm
2. application: water, gas, irrigation, construstion, drainage, fire figthing, Sewage

RGH800 Workshop Fitting Butt Fusion Machine

Plastic Pipe Welding Machine, Multi-angle welding machine, Multi-angle Fitting welding machine, Tee welding machine, Cross welding machine, HDPE fitting welding machine, Workshop fitting welding machine, PE fitting welder

Application:

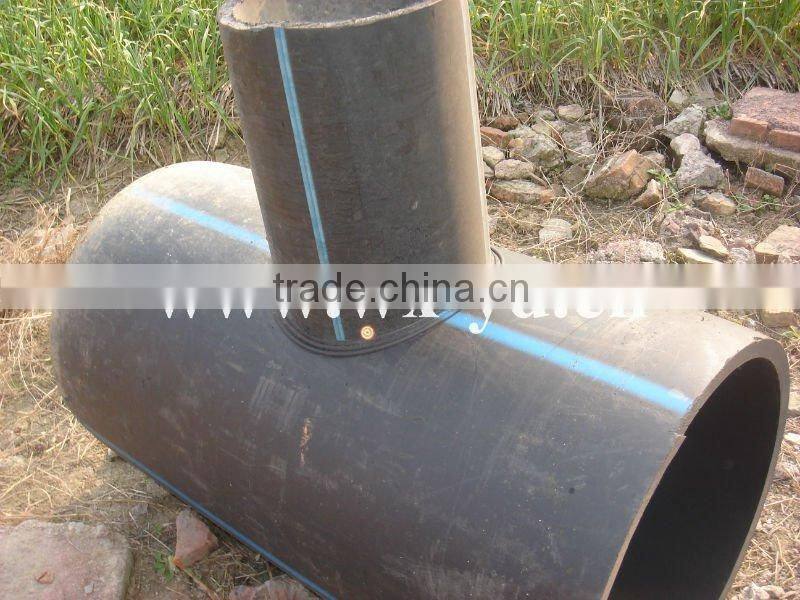

Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.

Welding range:

500—800mm in diameter

Features:

Removable PTFE-coated heating plate

Electric milling cutter with safety limit switch

Low starting pressure ensures reliable welding quality of small pipes.

Separate two-channel timer can show both of soaking and cooling time.

High-accurate and shockproof pressure meter indicates clearer readinds.

Pivoting milling cutter and heating plate bring Convenience to placing and removing.

Complies with 98/37 and 73/23 EEC standards.

Welding ranges of tee	500mm-560mm-630mm-710mm-800mm
Welding ranges of cross	500mm-560mm-630mm-710mm-800mm
Ranges of elbow (n×1°)	500mm-560mm-630mm-710mm-800mm
Ranges of application	PE,PP and PVDF
Working voltage	~380V ±10%,50Hz
Environment temperature	-10° ~ 45°
Total power	planing tool motor: 3 kW, heating plate: 40kW, hydraulic unit motor: 4 KW
components	basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box
heating plate characteristics	PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7°
Other devices	Electronic count-down timers for heating and cooling time, PLC control system
