Specifications
1. Fitting Fusion Machine2. welding range: 250mm~450mm
2. application: water, gas, irrigation, construstion, drainage

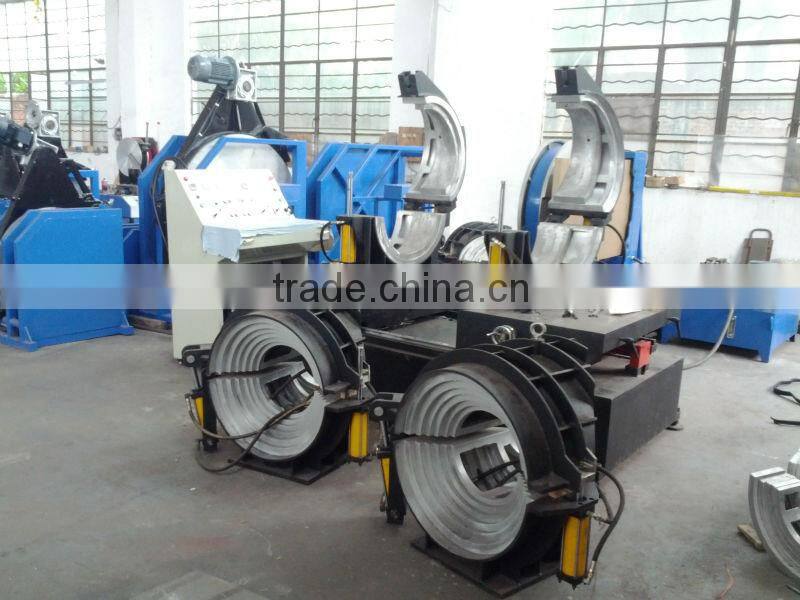

RGH450 Fitting Fusion Machine
Fitting Fusion Machine, Multi-angle fitting welding machine, Workshop Fittig welding machine, HDPE fitting welding machine, HDPE fitting fusion machine, Workshop welding machine for pressure pipes, workshop welding machines for Elbow prefabrication, workshop machine for preinsulated pipe, workshop fitting fusion machine, PE pipe fitting machine.
Application:
Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.
Welding range:
250—450mm in diameter
Features:
*Applied to fabricate PE,PP,PVDF elbow,tee,cross fittings in workshop.Also used to lengthen the injection moulded fitting and make the integrated fittings.
*Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.
*Removable PTFE coated heating plate.
*Electric planing tool with safety limit swith enable to start it only when it is locked in the operation position.
*Low starting pressure and high reliable seal structure.
*Separate two-channel timer records times in soaking and cooling phases.
*Digital pressure meter enables to control pressure accurately.
*Linear guide ways are equipped with heating plate, planing tool and dragging plate
*Products comply with 98/37/EC and 73/23/EEC standards.
Optional parts:
*Special clamps for welding flange stub.
*Special clamps for short spigot fittings.
Technical Specification for Fitting Fusion Machine :
Welding ranges of tee | 250mm—280mm—315mm—355mm—400mm |
Welding ranges of cross | 250mm—280mm—315mm—355mm—400mm |
Ranges of elbow (n×1°) | 250mm—280mm—315mm—355mm—400mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~380V ±10%,50Hz |
Environment temperature | -10° ~ 45° |
Total power | planing tool motor: 2.2 kW, heating plate: 22 kW, hydraulic unit motor: 4 KW |
components | basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box |
heating plate characteristics | PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7° |
Other devices | Electronic count-down timers for heating and cooling time, PLC control system |
Elbow , Tee and Cross Clamps
Fittings for plasti pipe fitting angle jointig welding machine:

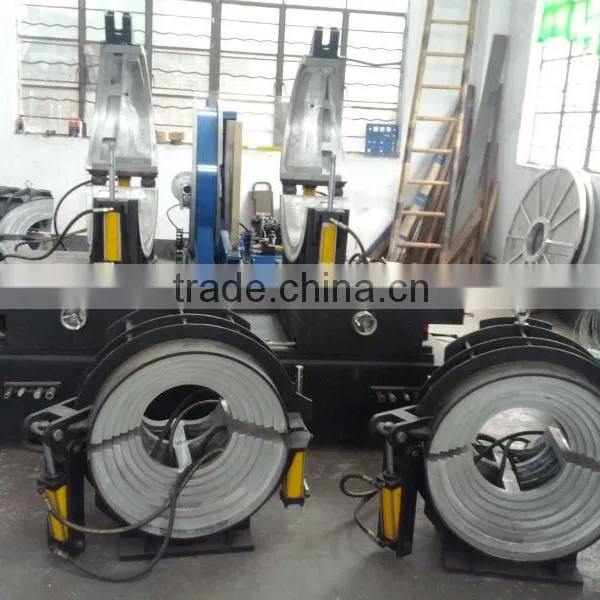

Whole Machine:
Company Profile:
Wuxi Yuda Plastic Pipe Welding Machinery Factory is an enterprise devoted to plastic pipe welding technology and research, design, manufacture, sales, training and maintenance of plastic pipe welding equipment, providing the customers with full and best service.
Our factory has a senior technical team engaged in plastic pipe welding technology research and design of welding equipment. The guideline of our enterprise is that customers need is our pursuit, the product quality is the life of the enterprise, enterprise's aim is to be world-famous.
Our product category falls into RGH series multi-angle fitting welding machine, DQJ series multi-angle cutting machine, RDH series Hydraulic butt fusion welding machine, Controlling methods include hydraulically-controlled and automatically( numerically)-controlled. With the great efforts of all the staff, all types of machines will be gradually be becoming perfect.
At present, the following models are available: RDHS160 and RDHS200 manual butt fusion machine, RDH160~RDH2000 Hydraulic butt fusion machine, RGH315~RGH1200 multi-angle fitting welding machine, DQJ315~DQJ1200 multi-angle cutting machine, RDH-JL160~RDH-JL1600 Automatic butt fusion machine (with data logger and printer function). Full-automatically & numerically controlled welding machine, which is called RDH-AUTO series; numerically-controlled multi-angle fitting welding machine, which is called RGH-AUTO series and numerically-controlled multi-angle cutting machine, which is called DQJ-AUTO series will be brought to the market soon
