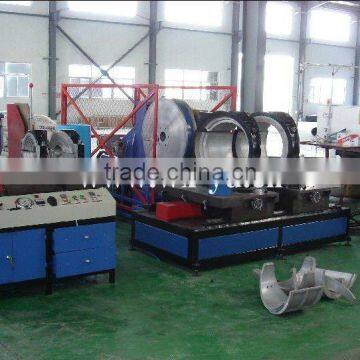

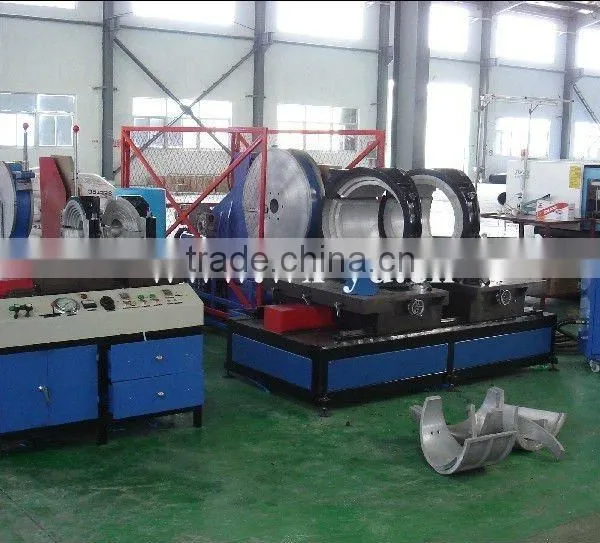

PE,PP, PVDF and PPR Multi-angle Fitting Welding Machine

Name: PE,PP, PVDF and PPR Multi-angle Fitting Welding Machine
Brand: YUDA
SKU: 122014337
Availability: InStock

US$ 32,150 - 34,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

YUDA

Model Number:

RGH630

Wuxi Yuda Plastic Pipe Welding Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name YUDA

Model Number RGH630

Voltage 380V

Power 28KW

Frequency 50HZ

Dimensions 5CBM

Weight 3500KG

Usage fabricate elbow, tee,cross fittings

Specifications

1. welding range: 355mm~630mm
2. application: water, gas, irrigation, construstion, drainage, fire figthing, Sewage

PE,PP, PVDF and PPR Multi-angle fitting welding machine

Application:

Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.

Welding range:

355—630mm in diameter

Features:

Removable PTFE-coated heating plate

Electric milling cutter with safety limit switch

Low starting pressure ensures reliable welding quality of small pipes.

Separate two-channel timer can show both of soaking and cooling time.

High-accurate and shockproof pressure meter indicates clearer readinds.

Pivoting milling cutter and heating plate bring Convenience to placing and removing.

Complies with 98/37 and 73/23 EEC standards.

Welding ranges of tee	355mm—400mm—450mm—500mm—560mm-630mm
Welding ranges of cross	355mm—400mm—450mm—500mm—560mm-630mm
Ranges of elbow (n×1°)	355mm—400mm—450mm—500mm—560mm-630mm
Ranges of application	PE,PP and PVDF
Working voltage	~380V ±10%,50Hz
Environment temperature	-10° ~ 45°
Total power	planing tool motor: 2.2 kW, heating plate: 22 kW, hydraulic unit motor: 4 KW
components	basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box
heating plate characteristics	PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7°
Other devices	Electronic count-down timers for heating and cooling time, PLC control system
