Specifications
RDH800 Pipe butt fusion welder1. welding range : from 630mm~ 800mm
2.application: water,gas,irrigation,drainage

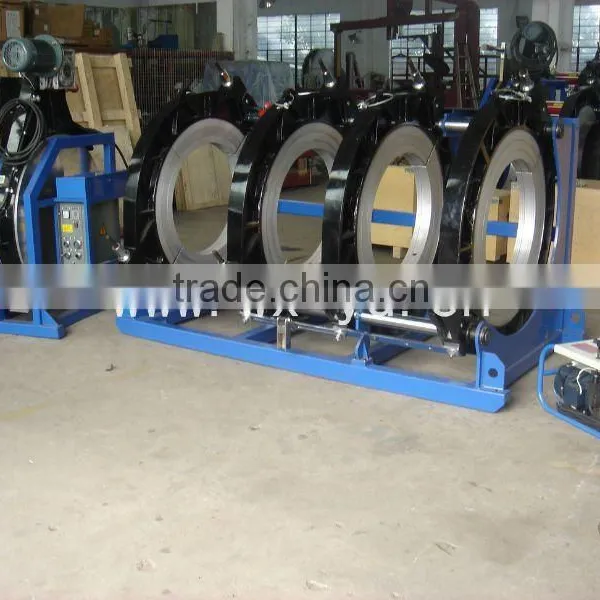

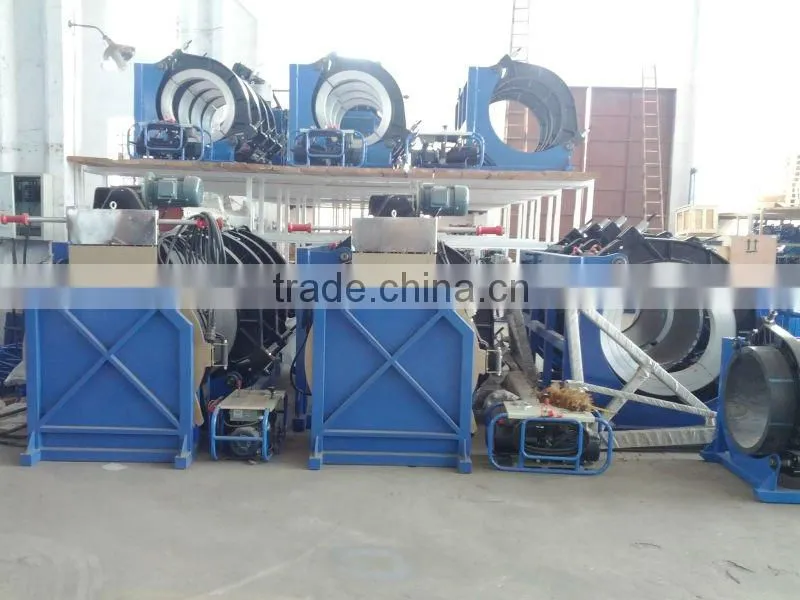

RDH800 Pipe butt fusion welder
PE Pipe Welding Machine, But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine. Butt fusion Equipment
Application:
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex
working condition.
Features:

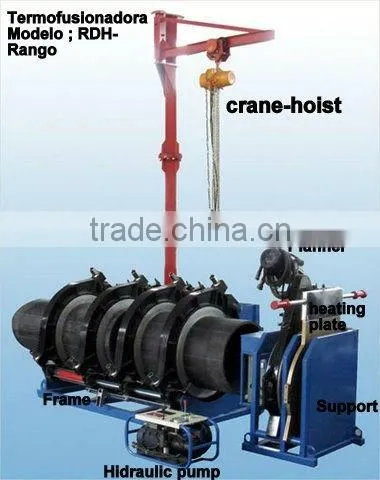

1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
Technical Specification for RDH800 Pipe Butt Fusion Welder:
Model |
RDH800 |
|
Pipe Size(mm) |
630.710. 800 |
|
Heating Plate Max.Temp |
270°C |
|
Temp.Deviation In Surface |
less ±7°C |
|
Pressure Adjustable Ranges |
0-6.3Mpa |
|
Working Voltage |
380V,50Hz |
|
Heating Plate Power |
12.5kw |
|
Planning Tooler Power |
1.5kw |
|
Hydraulic Unit Power |
1.5kw |
|
Electric Crane Power |
0.5kw |
|
Total Power |
16kw |
|
Weight |
1260kg(Net) |
|
Packing |
Cases |
Four Plywood Cases |
|
Volume |
8.89CBM |
