SHREE EXTRUSIONS LIMITED: Gujarat, India; Main products: Brass Wires, Specialized Brass Wires, Specialized Brass Wires, Copper Alloy Rods, Ingots

Home > Products > Brass Rods > Price/copper rod!!!hollow brass rod

Price/copper rod!!!hollow brass rod

FOB Price

USD $9 - $10 / Kilogram

1000 Kilograms(Min.Order)

Port Mundra
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Gujarat, India	Brand Name	Shree - Extrusions
Model Number	Brass Rods	Application	Brass Rods for industrial valves
Diameter	6mm - 250mm	Shape	Hexagonal
Length	3 meters up	Grade	C360
Cu (Min)	58%	Alloy Or Not	Is Alloy

Product Description

"Price/copper rod!!!hollow brass rod /Brass Rods"

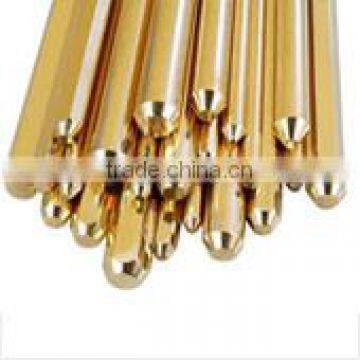

brass rod

The range of Brass Rods manufactured by us is valued for its excellent cutting & drilling performance, high conductivity, and corrosion resistance. These brass tension rods find applications in various sectors mentioned below:

Specifics :

Hardware
Electric & Electronic Components
Fittings

Forging Brass Rods:

Our esteemed clients can avail from us a wide gamut of Forging Brass Rods, Extruded Brass Rods which have gained appreciation for it's international quality standards. Available in various sizes, thicknesses and specifications, these brass rods are largely used in various industries. Our competitively priced Forging Brass Rods are acknowledged for their high tensile strength, durable finish standards, corrosion resistance and sturdy designs.


Chemical Requirements	CuZn42Pb2	CuZn40Pb2
Copper	56.5 - 60.0%	57.0 - 59.0%
Lead	0.60 to 2.0%	1.5 to 2.5%
Iron	0.30% max	0.40% max
Total Imp. Excl. Iron	0.20% max	0.70% max
Zinc	Remainder	Remainder

Physical Properties
Tensile Strength	380 Mpa Min	40 kg/mm2 Min.
Elongation %	25% Min	18% Min.
Izod Value	-	2.0 KJ min

Fabrication Properties
Capacity for being
Cold worked	Poor	Poor
Hot formed	Excellent	Excellent
Hot forgeability rating	100%	100%
Machinability Rating	80%	80%
Suitability for soldering	Excellent	Excellent
Suitability for Brazing	Good	Good

Uses
Forged Components, Industrial Valves, Defense components, Watch Case, Automobile Valves Components

High Tensile Brass Rods:

We are one of the leading manufacturers, exporters and suppliers of a premium quality assortment of High Tensile Brass Rods, Brass Extrusion Rods. Offered in different sizes, thicknesses and grades, these are valued for their excellent performance, high conductivity, durability, reliable operation and corrosion resistance. At par with the prerequisite industry standards, our High Tensile Brass Rods can be purchased by clients in standard & customized specifications and at cost effective rates.

Specification :
High Tensile Brass	IS 320 HT1 or HT2 BS 2874 CZ114 or CZ115 JIS 3250H C6782 or C6783


Total Imp.		0.50% max		0.50% max
Zinc		Remainder		Remainder
Physical Properties
Condition	Size	T.S. MPa	EL% Min	T.S. MPa	EL% Min
As manufactured	All Size	430 min	20%	460 min	20%
Cold-worked & Stress	10-40	480 min	12%	520 min	12%
Relieved	40 above			500 min	15%

Uses
HT1 is suitable for Soldering
Ht2 is suitable for Machining

Riveting Brass Rods:

We are one of the well recognized manufacturers and exporters of a sturdily designed array of Riveting Brass Rods. These are machined in sync with the industrial norms using modern machinery and excellent grade raw materials. Available in diverse specifications and at pocket friendly prices, our Riveting Brass Rods are well known across the global market owing to their incomparable performance, high conductivity, corrosion resistance and low maintenance.

Specification :
Rivetting Brass	IS 4170 CuZn40 BS 2874 CZ109 JIS 3250 H C2800 ASTM B171 C 36500 IS 4413 CuZn37 BS 2872 CZ108


Physical Properties
Condition	Size mm	T.S.Kg/mm²	EL% Min
Annealed (O)	1.2 & above	28 min.	30%
As Manufactured	1.2 & above	35 min.	25%

Uses
Ductile Alloy Suitable as Blanking, Riveting, Brazing and Upsetting

Application Areas:

IS: 2074
BS: 2874 CZ119
IS: 4170/75
Cu Zn 38PB1 / 1.5.

Free Cutting Brass Rods

We specialize in manufacturing and exporting our clients a robustly designed range of Free Cutting Brass Rods. These are durable, corrosion resistant and available in different grades, thicknesses and dimensions. Our Free Cutting Brass Rods are manufactured from quality proven raw materials to ensure excellent performance, high conductivity and longer operational life.

Specifications:

BS249
IS: 319 Gr. l & ll
IS: 8364 Gr. l & ll, BS: 2874 CZ121Pb3
CuZn39Pb3

Chemical Requirements	Grade I
Copper	56.0 - 59.0%
Lead	2.0 to 3.50%
Iron	0.35% max.
Total Imp. Excl. Iron	0.70% max.
Zinc	Remainder

Physical Properties
Condition	Size	T.S. MPA	EL% Min
Annealed (O)	6-25 25-50 50 above	345 315 285	12 17 22
Half-Hard (HB)	6-12 12-25 25-50 50 above	405 395 355 325	4 6 12 17
Hard (HD)	6-12 12-25	550 490	- 4

Fabrication Properties
Capacity for being
Cold worked	Poor
Cold worked	Poor
Hot formed	Fair
Machinability Rating	100%
Suitability for soldering	Excellent
Suitability for Brazing	Good

Uses
Precision Components, Hardware, Hinges, Lock Bodies, Screws, Nuts & Bolts

Physical Properties
Condition	Size	T.S. MPA	EL% Min	T.S. MPA	EL% Min
Annealed (O)	6-25 25-50 50 above	355 305 275	15 20 25	315 285 255	22 27 32
Half-Hard (HB)	6-12 12-25 25-50 50 above	395 385 345	7 10 15 20	355 345 305 285	8 12 22 27
Hard (HD)	6-12 12-25	550 485	4	460 400	4
