SMA Female To TS9 Male Connector
US$ 0.8 - 1.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LONGAN
Model Number:
SPAC108
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
External 7dBi RJ174 3M 3G GSM AntennaUS$ 3 - 4.6MOQ: 50 Pieces -
External 2dBi 3G GSM Antenna White ColorUS$ 0.66 - 1.35MOQ: 50 Pieces
-
External 2dBi 3G AntennaUS$ 4 - 6MOQ: 50 Pieces
-
External 3G GSM Omni Antenna With N/SMA Male ConnectorUS$ 4 - 6MOQ: 50 Pieces
-
IPEX To SMA Female 2dBi External GSM AntennaUS$ 1 - 2MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
LONGAN
Model Number
SPAC108
Type
Adapter
Application
RF
Gender
Female
Specifications
1.SMA Female To TS9 Male Connector2.Material: Brass
3.For SFF-50-3-1/SYV-50-3/RG-142/RG-58 cable
4.OEM support
5.In stock
Product Description

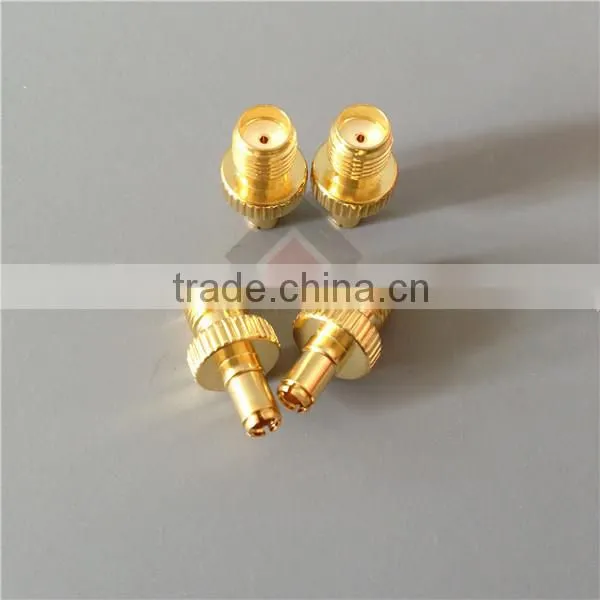

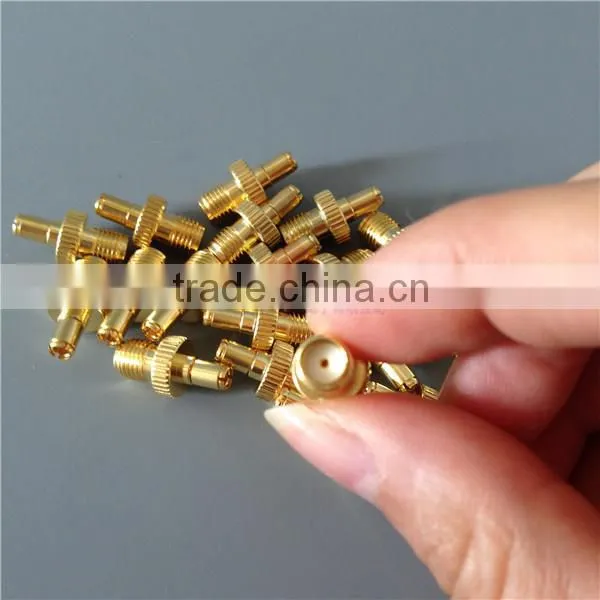

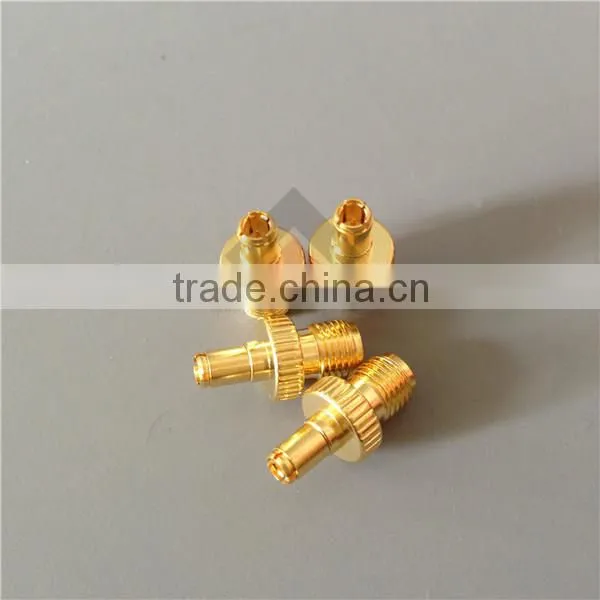

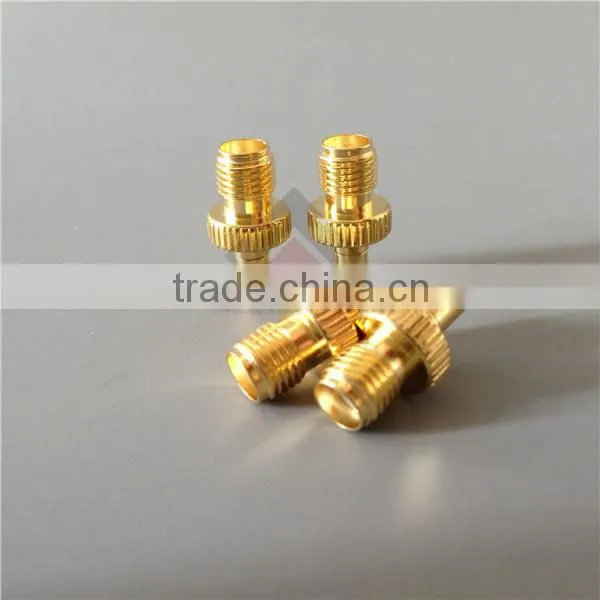

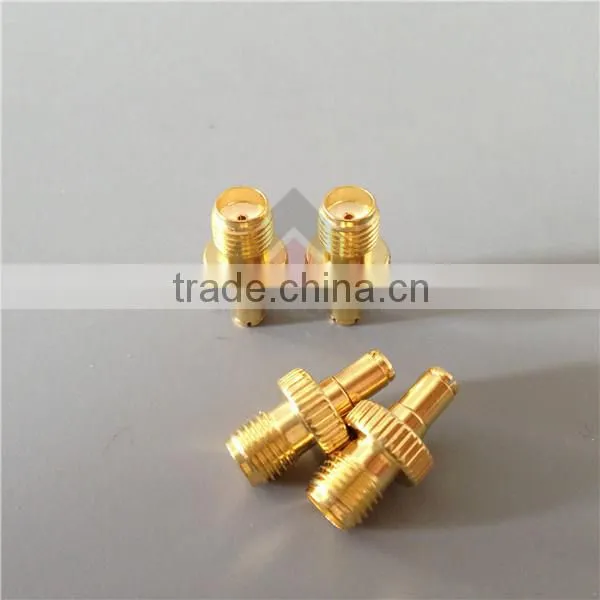

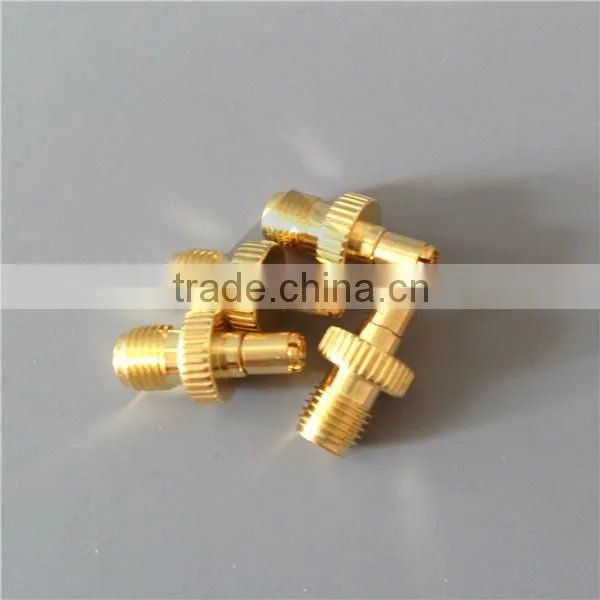

SMA Female To TS9 Male Connector
Model |
FT-SMA/TS9-KJ |
||
Major Technical Characteristics | |||
Type |
FT-SMA/TS9-KJ |
||
Impedance |
50Ω |
||
Frequency Range |
DC~11GHz |
||
Center conductor retention force |
≥0.56N |
||
Insertion Loss |
0.24dB(6GHz) |
||
Voltage Standing Wave Ratio |
Straight ≤1.15/6GHz |
||
Right angle ≤1.25/6GHz | |||
Durability(mating) |
≥500(cycles) |
||
Material & Plating | |||
Body |
Brass |
Nickel plated |
|
Pin contact |
Brass |
Gold plated |
|
Resilient contact |
Beryllium-copper |
Gold plated |
|
Socket contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
||
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring sealing |
6146 silicone rubber |
||
