JK 870 Cutting Plotter

JK 870 Cutting Plotter thumbnail-1
JK 870 Cutting Plotter photo-1
US$ 258 - 260 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LD
Model Number:
JK870
Contact Supplier Request Quote Chat Now
Shenzhen Brightness Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LD
Model Number JK870

Specifications

JK 870 cutting plotter
motion of USD 258
2.USB connection
3.max cutting size of 780mm
4.with Artcut software

JK 870 cutting plotter
motion of USD 258
2.USB connection
3.max cutting size of 780mm
4.with Artcut software



JK 870 cutting plotter

Description:



1. The appearance design of the patent, streamlined fuselage, carry the putting type control panel, easy to operate, elegant appearance.
2. Adopting new microstep to subdivide algorithms, being in highly cutting quality while cutting at a high speed, the curve is smooth and more evasive.
3. Software has the capacity to adjust the cutting precision to solve and prolong the inconsistent problems of size differently when all kinds of materials of malleability are cut.
4. Improve shock attenuation and subdue the sound device, reduce the noise further, but the power of the motor is not reduced.
5. Advanced industrial aluminium alloy fuselage, the surface is not worn and torn to fade through special-purpose processing.
6. Pairs of layering pairs of knife location, besides layering originally, set up half hob one, can is it is it carry heat of adhesive tape is it print paper, clothing pattern etc. to transfer to to have to cut.
7. Leather card special purpose interface software, can accept AUTOCAD, CORELDRAW file that software output, can establish partial is it compensate with the corner compensating to close, needn't carve characters software can carve characters directly specially.
8. Passing national security, performance and environment test in an all-round way, performance is more reliable.

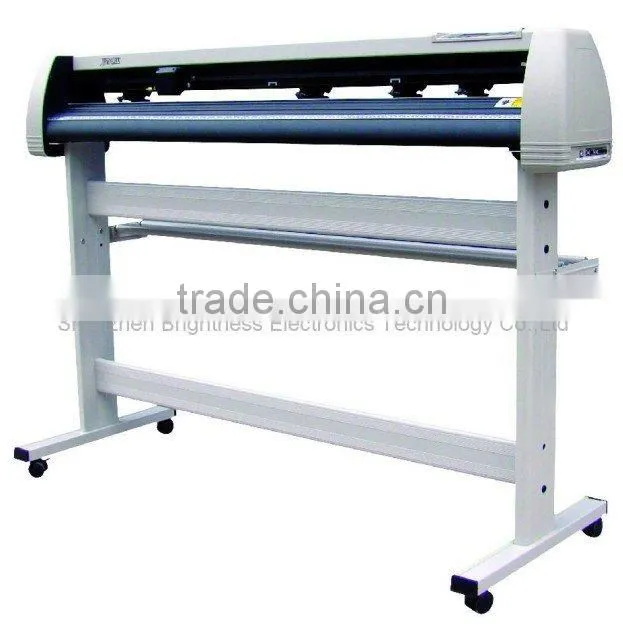

pic for spare part :

JK 870 cutting plotterJK 870 cutting plotter JK 870 cutting plotter



Machine detail:

Model

LD720

LD870

LD1100

LD1350

LD1600

LD1750

Max paper width

720mm

870mm

1100mm

1350mm

1600mm

1750mm

Max cutting width

630mm

780mm

1010mm

1260mm

1510mm

1660mm

Cutting speed

50-800mm/s

Cutting force

50-500g

Buffer capacity

1M

LCD

No

Yes

CPU

8-bit CPU

Strip of plotter

Plastic sheet

Drive

Stepping

Maximum media thickness

0.25mm(10mlls)

Maximum cutting speed

40cm/s((17ips) in al directions

Maximum acceleration

4m/s²

Maximum character matrix

Approx 5mm(0.2") high

Blade type

Super steel (1.2mm)

Pen type

Water-base fibertip

Film type

Self-adhesive vinyl film, fluorescent film, reflective film, paper

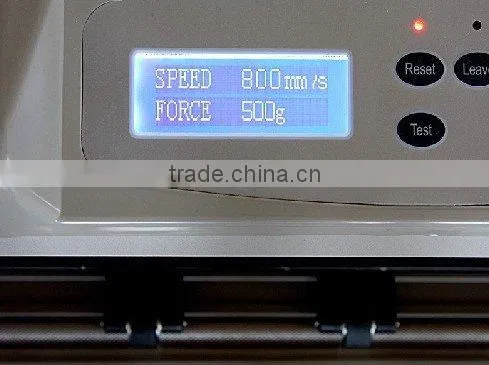

Display panel

No

8 digits*2 line LCD

Offset

0-1mm

Interfaces

USB/Parallel serial

Power requirements

AC220V±10% or AC110V±10%

Power consumption

60W max

Repeatability

0.127mm

Mechanical resolution

0.0254mm/step

Commands set

DMPL

Environmental temperature

0-35°C

Environmental humidity

5%-65% (without condensation)









 the package , it includes one machine and all the spare part .
