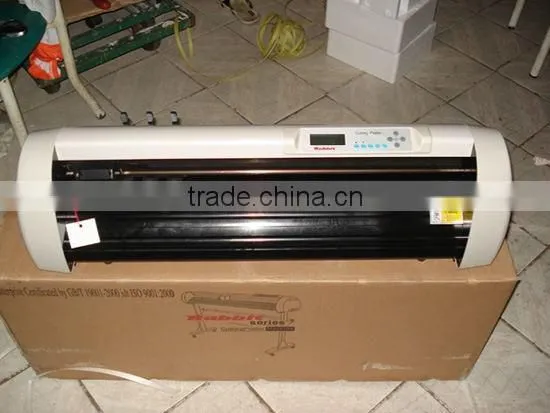

Brightness Vinyl Cutting Plotter 720

Specifications

1.Brightness vinyl cutting plotter 720
2.paper width 720mm,cutting size 630mm
3.digital control,adjustable force and speed

Brightness Vinyl Cutting Plotter 720



Vinyl cutting plotter 720 parameter:

More sizes of cutting plotter available

Vinyl Cutting Plotter detail:
Model	LD720	LD870	LD1100	LD1350
Max paper width	720mm	870mm	1100mm	1350mm
Max cutting width	630mm	780mm	1010mm	1260mm
Cutting speed	50-800mm/s
Cutting force	50-500g
Buffer capacity	1M
LCD	No		Yes
CPU	8-bit CPU
Strip of plotter	Plastic sheet
Drive	Stepping
Maximum media thickness	0.25mm(10mlls)
Maximum cutting speed	40cm/s((17ips) in al directions
Maximum acceleration	4m/s²
Maximum character matrix	Approx 5mm(0.2") high
Blade type	Super steel (1.2mm)
Pen type	Water-base fibertip
Film type	Self-adhesive vinyl film, fluorescent film, reflective film, paper
Display panel	No		8 digits*2 line LCD
Offset	0-1mm
Interfaces	USB/Parallel serial
Power requirements	AC220V±10% or AC110V±10%
Power consumption	60W max
Repeatability	0.127mm
Mechanical resolution	0.0254mm/step
Commands set	DMPL
Environmental temperature	0-35°C
Environmental humidity	5%-65% (without condensation)





Vinyl cutting plotter specification:

1) Unique double cutter position, double pressing strips for processing different kinds of materials

2) Characteristic design, adjusting cutting force and plotting speed at any time

3) European popular large screen high bright display ,clearly to operate

4) USB interface optional, supporting plug in and off when power is on

5) Serial port,large memory,quick off-line

6) Domestic popular plotting language,supporting many popular kinds of software at home and abroad







Vinyl cutting Plotter advanced technology :

• The appearance design of the patent  streamlined fuselage,carry the putting type control panel,easy to operate,elegant appearance
• Adopting new microstep to subdivide algorithms,being in highly cutting quality while cutting at a high speed,the curve is smooth and more evasive
• Softwae has the capacity to adjust the cutting precision to solve and prolong the inconsistent problems of size differently when all kinds of materials of malleability are cut.
• Improve shock attenuation and subdue the sound device , reduce the noise further, but the power of the motor is not reduced.
• Advanced industrial aluminium alloy fuselage, the surface is not worn and torn to fade through special-purpose processing..
• Pairs of layering pairs of knife location, besides layering originally, set up half hob one, can is it is it carry heat of adhesive tape is it print paper , clothing pattern ,etc. to transfer to to have to cut
• Leather card special purpose interface software, can establish partial is it compensate with the corner compensating to close, needn't carve characters software can carve characters directly specially
• Passing national security , performance and environment test in an all-round way performance is more reliable.
