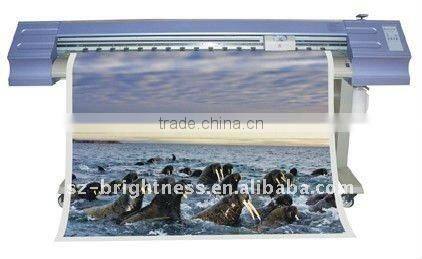

LD 1800 Eco Solvent Outdoor Printing Machine

LD 1800 Eco Solvent Outdoor Printing Machine photo-1
US$ 5,200 - 5,688 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Screen Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Screen Printer
Place of Origin Guangdong, China
Brand Name Brightness
Model Number LDP-1800
Usage Paper Printer
Automatic Grade Automatic
Gross Power 1000w max
Dimensions(L*W*H) 290mm*85mm*85mm

Specifications

eco-solvent outdoor printing machine
print width:1.8m
one DX5 (180 nozzles * 8 lines)
USB port, max speed 15m2/h, max 1440dpi

Piezo  eco-solvent outdoor printing machine



it  can  print on uncoated materials like flex banner, PVC, adhesive vinyl etc.

the parameter of  LD1800 ecosolvent piezo outdoor printing machine



printer head : DX5 head of  variable droplet printing technology

Number of printer head : one

Nozzle : (180nozzle*8lines)*1 head

Resolution : Max. 1440dpi

Color : double C,M,Y,K

machine width : 1920mm

max printing width : 1800mm

speed : 4 pass  15m2/h

      6 pass  10.5m2/h

      8 pass  7.5m2/h

Ink :  eco-solvent ink

RIP : Maintop5.3

Operation syestem : Windows XP, Windows 7th, Windows2000 etc.

Connection : USB2.0

Power : 50Hz/60Hz, 220V 10A

Heater : 3 parts with front, middle, back

Document form : Bmp, TIF, JPG, PDF

Media process way : roll by roll

Humidity : 40%-70%

Dimension : 2.9m*0.85m*0.85m

Weight : 240KG

Color gamut:16.7million

Media transmission: roll and roll

LD 1800 eco solvent outdoor printing machineLD 1800 eco solvent outdoor printing machine Epson Fifth generation print head

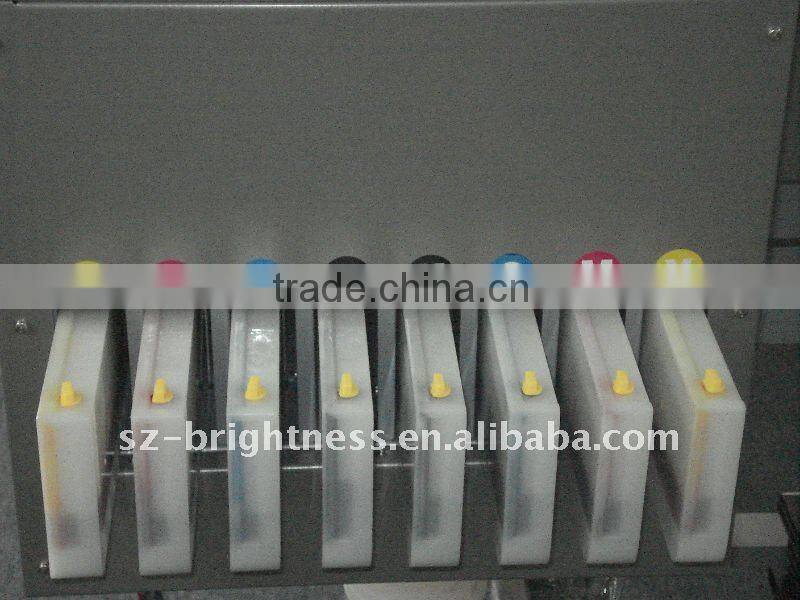

LD 1800 eco solvent outdoor printing machine ink tanks

1.8m dx5 printer  Characteristics:

  1. Using the original mute type of linear guide,makes a lower noise and got a high stability;
  2. use Japan two-way import motors, High resolution for drive linear decoding, can reduces errors of length and make it  run more stable;
  3. With USB plug and play transmission interface, Speed up to 480M/s, it can support network interface and you also can print in a differenct place;
  4. Adopt the fifth generations of EPSON nozzle technique , number of Nozzle aperture is 8*180, High quality output with resolution 1440DPI;
  5. VSDT advanced variable drops technology, min drop is 3.5PL , and the max drop is 27PL , which makes prefect printing quality ;
  6. With different printing mode , Normal production mode get to 15m2/h;
  7. advanced printer head and hydrating System makes more easier for you to cleaning and maintain your machine;
  8. with 8 large independen ink cartridge to supply ink constantlyt , which make sure large output with high speed.

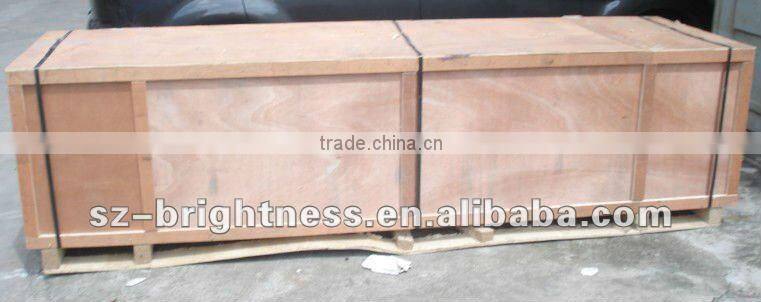

Free fumigation wooden case packing



LD 1800 eco solvent outdoor printing machine
