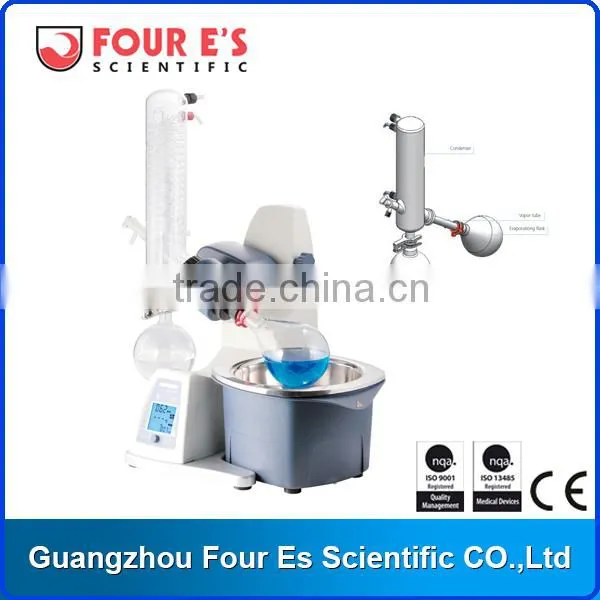

Advanced Technique Large Digital LCD Screen Display Laboratory Rotary Evaporator

Advanced Technique Large Digital LCD Screen Display Laboratory Rotary Evaporator

 Features

- Large digital LCD screen displays heating temperature, rotation speed and time;

- Motor lift configurations, automatic release of the evaporating flask to top position in case of power failure;

- Wide temperature range of the 5L heating bath (Room temp. -180ºC ) covers the widest applicational needs and has a safety temperature cut off 220ºC;

- Speed range from 20 to 280 rpm, and interval operation in clockwise and counterclockwise directions for drying process;

- Patented condenser (cooling surface 1500cm²) with excellent cooling effect;

- Experience the advantage of the automatic process timer which turns off your evaporator at a pre-programmed time and removes the evaporating flask from the bath;

- Easy evapotating flask removal thanks to the ejector;

- Chemical-resistant duoble PTFE system and patented pressure spring provide excellent sealing;

- PC can control and document all parameters via USB interface.

Specifications

Detailed Pictures for LCD Digital Rotary Evaporator

 Accessories for Laboratory Rotary Evaporators

<img src="/kf/HTB1gK_mIVXXXXbbXVXXq6xXFXXX1/221499759/HTB1gK_mIVXXXXbbXVXXq6xXFXXX1.jpg" alt="Cheap LCD Digital Mini Lab Vertical Condenser Vacuum Rotary Evaporator for Distilling" width="643" height="192" ori-width="975" ori-height="291">
Evporating Flask		Receiving Flask		Connector
Model	Description	Model	Description	Model	Description
TD-RE-011	50ml	TD-RE-018	100ml	TD-RE-023	Connector
TD-RE-012	100ml	TD-RE-019	250ml	TD-RE-024
TD-RE-013	250ml	TD-RE-020	500ml	TD-RE-025
TD-RE-014	500ml	TD-RE-034	1000ml
TD-RE-015	1000ml	TD-RE-022	2000ml
TD-RE-016	2000ml
TD-RE-017	3000ml

Foam Brake		Vapor Tube		Seal
Model: TD-RE-026		Model: TD-RE-027		Model: TD-RE-028

TD-RE-029	Description		Photo
Voltage [V]		110220
Frequency [Hz]		50/60
Power [W]		95
Maximum Vacuum [mbar]		13
Pump Speed	0 mmHg	25 L/min
	100 mmHg	22 L/min
	200 mmHg	20 L/min
	300 mmHg	12 L/min
	400 mmHg	7.5 L/min
	550 mmHg	5 L/min
Suction Nozzle Size [mm]		8
Motor speed [rpm]		1450
Weight [kg]		7
Noise [dB]		50

TD-RE-031	Description		Photo
Temperature range [ºC]		-10~+40
Temperature stability [ºC]		±0.5
Temperature display		LED
Pump capacity flow rate [L/min]		15
Pump capacity flow pressure [bar]		0.35
Cooling capacity	20ºC	0.25KW
	10ºC	0.22 KW
	5ºC	0.21KW
	0ºC	0.18 KW
	-5ºC	0.09 KW
Filling volume [L]		1.7 ~ 2.6
Weight [kg]		27
Dimensions [W×L×H, cm]		24×40×52

In the information age,we're always keeping in mind that speed is everything and striving for the shortest lead

time to ship good products packed professionally with care.

Packaging
-Export carton packing;
-Both neutral and customized packaging can be available.

Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one based on your timeline and budget.

We signed good contract rate with our shipping agent, so our quotation on the freight cost in the 3 different options may help you to save your freight cost, but you can definitely choose to use your own shipping agent.

We're born to be a service-oriented team and to achieve complete customer satisfaction has always been what we're striving for. Most of our R&D, technical and quality staff are good at English; they can write, read, listen and speak English well so we can react quickly and provide professional services once our customers have any problems related to technical matters, quality issues and so on.

The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use, insufficient care or maintenance not carried out in accordance with the instrutions in the operating manual.

2. Customization

Custom manufacturing is an important part of our business and core competency. We're experienced in the OEM services and customers who need custom products made to customer specifications are welcome to contact us directly to review your needs and get a custom quotation.

Any further information you need, please do not hesitate to contact us!
