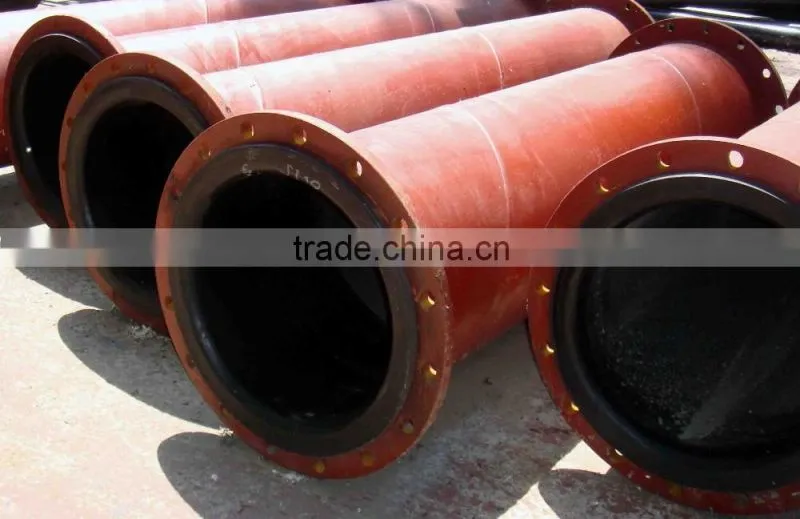

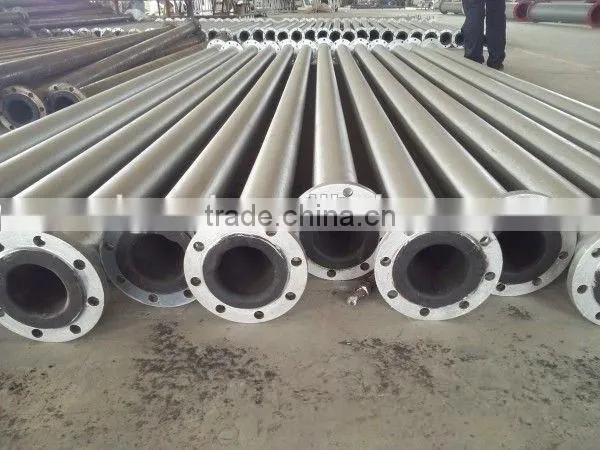

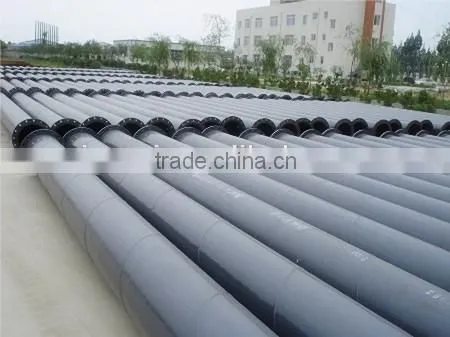

ore dressing equipment composite pipe wear resistant steel and rubber
Applications:
Slurry process pipelines, tailings discharge pipelines, delivering corrosive media in non-ferreous metals smelting process, delivering pulverized coal and coal-water slurry, and backfill of U/G mining. It's also for petroleum transfer on ground and beach, as long-distance and gathering transporation reinjection pipeline, for reclaimed water transportion in power generation plants, waste residue transfer, transfer of particle-contained corrosive media of brine, salt solution and raw salt as well as in dredging operations for rivers and ports.
Features:
1.Good flexibility and impact resistance.
2.Good abrasion resistance.
3.A wider range of withstanding temperature, between -50~95°C.
4.High static-pressure strength, up to 2.0Mpa.
5.High tensile strength, applicable for joints of pipes, furnished with slings for hose laying-out.
6.Slow scaling and energy saving. Scaling is hardly formed due to lubricating and non-adhevise characteristics.
7.Corrosion resistance, ageing resistance.
Specification
|
Nominal Bore (mm) (inch) |
Wear Liner Thickness |
Nominal O.D. |
Working Pressure |
Product Length |
Remark |
|
mm |
mm |
MPa |
meter |
|
||
300 |
12 |
8±0.5 |
350±3 |
1.0 |
2 to 10 |
Custom design available |
350 |
14 |
12±0.5 |
410±3 |
1.0 |
2 to 10 |
Custom design available |
400 |
16 |
12±0.5 |
460±3 |
1.0 |
2 to 10 |
Custom design available |
450 |
18 |
12±0.5 |
510±3 |
1.0 |
2 to 10 |
Custom design available |
500 |
20 |
16±0.5 |
580±3 |
1.0 |
2 to 10 |
Custom design available |
550 |
22 |
16±0.5 |
630±3 |
1.0 |
2 to 10 |
Custom design available |
600 |
24 |
16±0.5 |
680±3 |
1.0 |
2 to 10 |
Custom design available |
