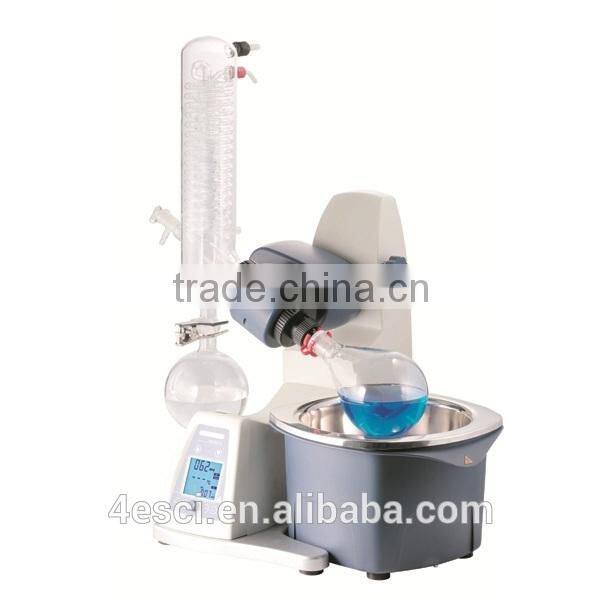

Distillation Application and Electric Power Source Rotary Evaporator
Features
- Large digital LCD screen displays heating temperature, rotation speed and time;
- Motor lift configurations, automatic release of the evaporating flask to top position in case of power failure;
- Wide temperature range of the 5L heating bath (Room temp. -180ºC ) covers the widest applicational needs and has a safety temperature cut off 220ºC;
- Speed range from 20 to 280 rpm, and interval operation in clockwise and counterclockwise directions for drying process;
- Patented condenser (cooling surface 1500cm2) with excellent cooling effect;
- Experience the advantage of the automatic process timer which turns off your evaporator at a pre-programmed time and removes the evaporating flask from the bath;

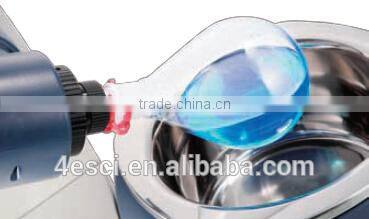

- Easy evapotating flask removal thanks to the ejector;
- Chemical-resistant duoble PTFE system and patented pressure spring provide excellent sealing;
- PC can control and document all parameters via USB interface.
Specifications
| Model | TD-RE-02 |
| Voltage [VAC] | 100-120/200-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 1400 |
| Motor Principle | Brushless DC motor |
| Speed Range [rpm] | 20-280 |
| Speed Display | LCD |
| Reversible Direction of Rotation | Yes |
| Heating Temperature Range [ºC] | Room temp.-180 |
| Heat Control Accuracy [ºC] | ±1 |
| Heat Output [W] | 1300 |
| Temperature Display | LCD |
| Lift | Motor |
| Stroke [mm] | 150 |
| Timer | Yes |
| Timer Display | LCD |
| Time Setting Range [min] | 1-999 |
| Overall Dimensions [ D×W×H mm] | 465×457×583 |
| Weight [kg] | 15 |
| Permissible Ambient Temperature [oC] | 5-40 |
| Permissible Relative Humidity | 80% |
| Protection Class acc. To DIN EN60529 | IP20 |
| USB Interface | Yes |

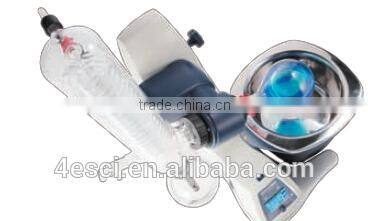

Detailed Pictures for LCD Digital Rotary Evaporator
Accessories for Laboratory Rotary Evaporators

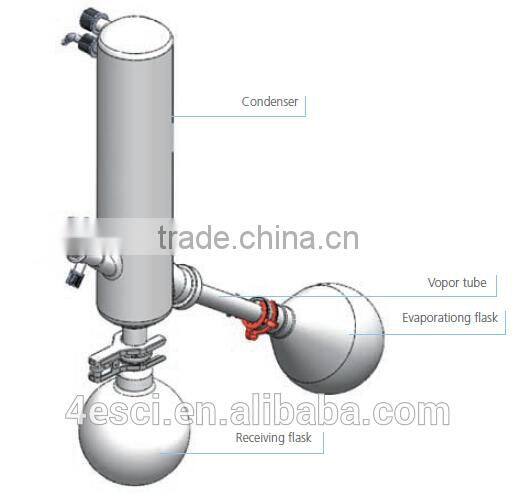

| Condenser | ||
| Model | TD-RE-021 | |
| Condenser Type | Vertical | |
| Cooling Surface | 1500cm | |
| |||||

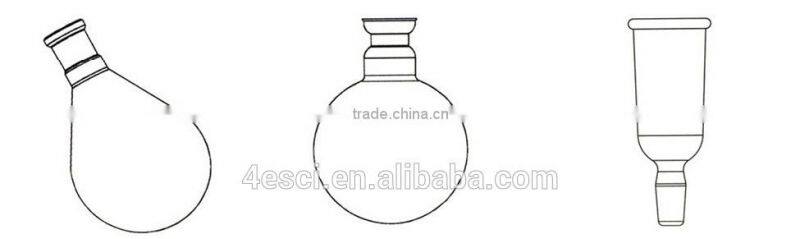

| Evporating Flask | Receiving Flask | Connector | |||
| Model | Description | Model | Description | Model | Description |
| TD-RE-011 | 50ml | TD-RE-018 | 100ml | TD-RE-023 | Connector |
| TD-RE-012 | 100ml | TD-RE-019 | 250ml | TD-RE-024 | |
| TD-RE-013 | 250ml | TD-RE-020 | 500ml | TD-RE-025 | |
| TD-RE-014 | 500ml | TD-RE-034 | 1000ml | ||
| TD-RE-015 | 1000ml | TD-RE-022 | 2000ml | ||
| TD-RE-016 | 2000ml | ||||
| TD-RE-017 | 3000ml | ||||
| |||||

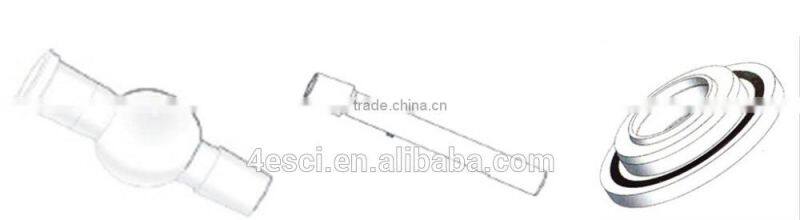

| Foam Brake | Vapor Tube | Seal | |||
| Model: TD-RE-026 | Model: TD-RE-027 | Model: TD-RE-028 | |||
| TD-RE-029 | Description | Photo | |
| Voltage [V] | 110220 | |
|
| Frequency [Hz] | 50/60 | ||
| Power [W] | 95 | ||
| Maximum Vacuum [mbar] | 13 | ||
| Pump Speed | 0 mmHg | 25 L/min | |
| 100 mmHg | 22 L/min | ||
| 200 mmHg | 20 L/min | ||
| 300 mmHg | 12 L/min | ||
| 400 mmHg | 7.5 L/min | ||
| 550 mmHg | 5 L/min | ||
| Suction Nozzle Size [mm] | 8 | ||
| Motor speed [rpm] | 1450 | ||
| Weight [kg] | 7 | ||
| Noise [dB] | 50 | ||
| TD-RE-031 | Description | Photo | |
| Temperature range [ºC] | -10~+40 | |
|
| Temperature stability [ºC] | ±0.5 | ||
| Temperature display | LED | ||
| Pump capacity flow rate [L/min] | 15 | ||
| Pump capacity flow pressure [bar] | 0.35 | ||
| Cooling capacity | 20ºC | 0.25KW | |
| 10ºC | 0.22 KW | ||
| 5ºC | 0.21KW | ||
| 0ºC | 0.18 KW | ||
| -5ºC | 0.09 KW | ||
| Filling volume [L] | 1.7 ~ 2.6 | ||
| Weight [kg] | 27 | ||
| Dimensions [W×L×H, cm] | 24×40×52 | ||
