Help CenterUNIVERSAL TERMINAL Blocks EK6/35
Related Products
Specifications
Connecting Ground Terminal blockEK2.5/35
Ground terminal with screw connection, screw connection, PA 66, Color: yellow-gree

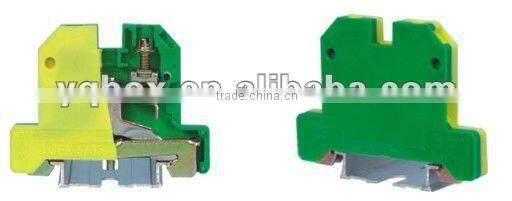

Connecting Ground Terminal block
EK6/35
Ground terminal with screw connection, screw connection, PA 66, Color: yellow-green
Connecting Ground Terminal block
EK6/35
Technical data
Dimensions
Length: 56mm Width: 6mm Height: 40mm
Rating data
Conductor cross-section, max. 2.5 mm2
Additional technical data
Colour of insulating material: yellow-green Flammability class UL 94: V-2
Insulating material: PA 66 No. of clamping points per level: 2
Number of levels: 1 Operating temperature range: -50 °C-100 °C
Type of connection: Screw connection Type of mounting: Snap-on
Approvals
CE, ISO9001, CQC
Accessories
JHEW35 End clamp, for assembly on TH35/7.5 DIN rail
TH35/7.5 DIN rail, aluminum, Length: 1m, Width: 35mm, Height: 7.5 mm
SAK-B1 Marking stand, width: 10mm, thickness: 9.5mm
