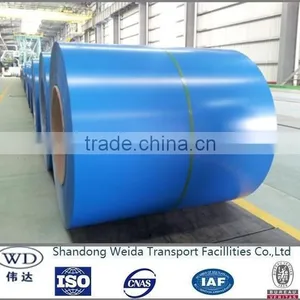

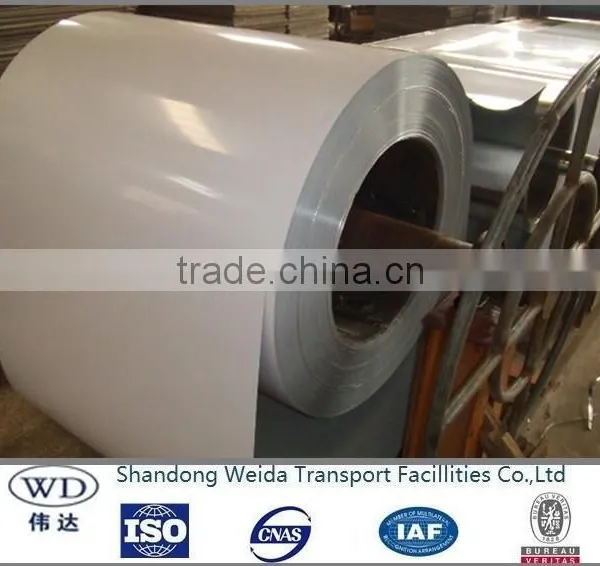

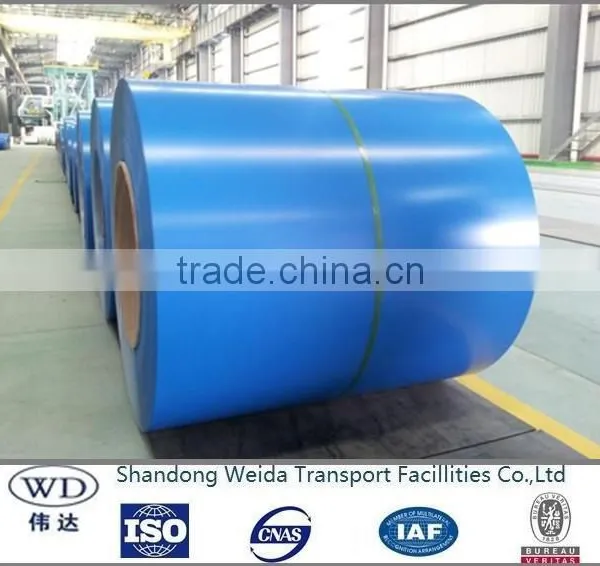

Help CenterManufacture Directly Sell: Prepainted GI Steel Coils Thickness:0.13mm -0.17mm
Related Products
-
Weida BEST Quality Galvanized Steel Coil Size:0.13-0.7mm ThicknessUS$ 400 - 600MOQ: 20 Metric Tons -
Weida Manufacture Price 750-1250mm Width Galvanized Steel Coil PriceUS$ 400 - 600MOQ: 20 Metric Tons
-
Zinc Coated Steel Coils 750-1250mm Width in StockUS$ 600 - 900MOQ: 25 Metric Tons
-
0.13mm to 0.7mm Hot Dip Galvanized Steel CoilUS$ 500 - 800MOQ: 25 Metric Tons
-
Prepainted GI Steel Coils Thickness:0.13mm -0.17mmUS$ 530 - 750MOQ: 25 Metric Tons
Reminder of Our product Range:
0.13-0.7MM Thickness
750-1250mm width.
Hot dip galvanized or powder coated.
Galvanized sheet or coil is defined as a carbon steel sheet coated with zinc on both sides.
Continuous hot dipping, or electro-galvanizing are the two processes used to produce galvanized
sheet and coil. Generally speaking, the hot dip process consists of passing the steel through a bath of molten zinc.
The electro-galvanizing process consists of the application of zinc by electrolytic disposition.
The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.
A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, it will sacrifice itself to protect the underlying steel sheet. Sacrificial, or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.
Our Hot-dipped Galvanized products, as well as our Galvannealed (zinc-iron alloy coated)
products are manufactured to ASTM specifications.
Detailed Specifications:
Material |
SGCC, DX51D+Z |
Thickness |
0.13-0.8mm |
Width |
750-1250mm |
Zinc coated |
40-180g/m2 |
Standard |
ASTM,AISI,DIN,GB |
Spangle |
Zero Spangle, Regular Spangle, Small Spangle |
Surface treatment |
chromated and oiled, chromated and non-oiled |
Technique |
cold rolled galvanized |
Grade |
Prime |
Coil ID |
508mm or 610mm |
Coil weight |
3-8MT/Coil or as your request |
Quality |
Softy , half hard and hard quality |
MOQ |
25MT |
Shandong Weida Transport Facilities Co.,Ltd.is a Leading manufacturer specialized in traffic safety facilities such as Highway W-beam Guardrails, Posts,Blocks/Spacer/Brackets,Guardrails accessories, supports for anti-glaring board, Reflectors etc.
With a registered capital of RMB 61 million.Our company covers an area of more than 70,000 square meters and has over 200 employees. We would like to spread our qualified Guardrails world-widely,to make the traffic
way much safer and more beautiful by working together with oversea governments,engineering and construction groups.
Q:Are you Manufacturer ?
A:Yes,we are professional manufacturer in Highway Guardrails for more than 10years.
Q:What's your main market?
A:South-east Asia,Africa,Middle-east countries,South America,Australia and U.S.
Q: Can we visit your company?
A: Yes for sure. We highly invite any client to visit our company.
Q: Can you OEM/ODM according our Drawings?
A: Yes for sure, Customer's Drawings are accepted.
Q:How can i contact you?
A: 24-hour on-line service,Pls feel free to contact me by email/Skype/mobile.
-->. Manufacture Goods with Competitive price &Delicate quality.
-->. Offer Construction Service according clients demand.
-->. OEM/ODM. Detailed Drawings with specification offered Fast and Easy Communication.
-->. 24-hour Service and help.
